16-channel frame grabber with 16x4 crosspoint switch | Model 817

Model 817 16-channel frame grabber with 16x4 crosspoint switch
  • 16 channel JPEG and bitmap capture at full NTSC/PAL frame rate
  • Built-in 16x4 video crosspoint switch
  • 80-character text overlay with timestamp
  • Performs scaling, deinterlacing, frame decimation
  • PCI Express x1 interface

Description

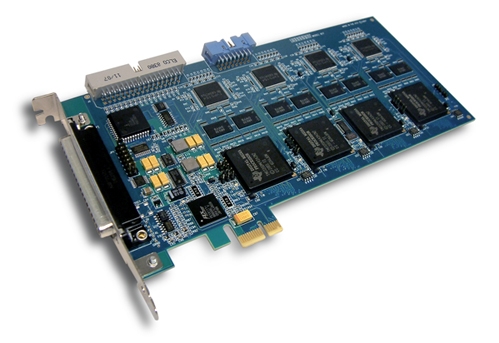

Model 817 combines the functions of a frame grabber, JPEG encoder, and 16 X 4 video crosspoint switch on a single PCI Express card (x1). It is capable of capturing full-resolution color JPEG images and monochrome uncompressed bitmaps (for efficient motion detection) from sixteen video input channels at full NTSC/PAL frame rates. Frames are processed at a rate of 30 fps on each channel, resulting in an aggregate throughput of 480 fps. The board performs hardware JPEG compression to offload this computational burden from the host computer and reduce the amount of disk space required to store images.

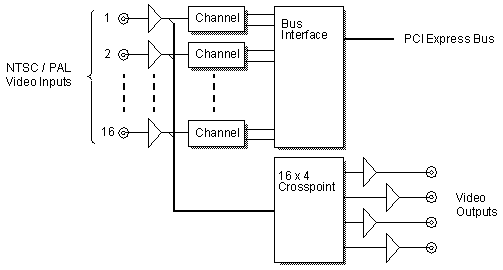

Model 817 block diagram


Input Channels

The 817 has sixteen identical video processing channels that operate in parallel. Each channel captures raw video frames from one input and optionally downscales the frames before further processing them. If desired, a single-line caption (up to 80 characters) may be overlaid onto the frames and the frame rate may be reduced. The processed frames are converted to both color JPEG and monochrome uncompressed bitmap images, and then made available for transmission to the PCI Express host computer.

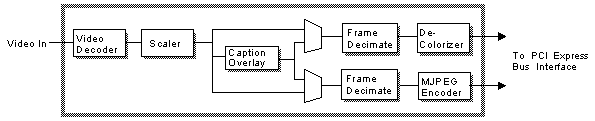

Block diagram of one video input channel


Crosspoint Switch

The board's built-in 16 X 4 analog crosspoint video switch can simultaneously connect each of the four outputs to any one of the sixteen inputs. This flexible switching fabric has many applications; for example, one input may be routed to multiple outputs to implement a video splitter. The unit can also be used to select alternate video sources on the fly in video editing applications and small broadcast studios. Each of the four video outputs can be individually turned on or off, which allows for the connection of multiple 817s to the same monitor.

Deinterlacing

Model 817 is capable of performing advanced video deinterlacing to reduce motion artifacts in captured JPEG images. Deinterlacing is performed by hardware so that the host computer is not burdened with this task.

Model 817 application


Accessories

Sensoray offers several breakout boards that route the 817's video signals to standard connectors. Click the Accessories tab for information on the available boards.

Accessories

A termination box is recommended for interfacing video signals to the 817, along with a cable, model 609C1 or 817C1 (both video in), to connect the 817 to the termination box. Sensoray offers the following termination boxes:


Model 817TAS is an indispensable tool for application development and troubleshooting with Sensoray's 16-channel frame grabbers (models 615, 617, 817, and 819). The 817TAS splits a standard composite TV video signal (BNC connector) into 16 buffered outputs of standard amplitude and impedance. The outputs are connected to a 34-pin ribbon cable connector that is compatible with all of the above-mentioned frame grabbers. A combination of models 817TAS and 609TC/TE/TG yields a splitter with 16 BNC outputs.

817TAS

Model 817TAS splitter


Model 609TA-ND provides sixteen BNCs for inputs and eight BNCs for video output; also requires cable 609C2 (video out).

609TA-ND (16x BNC in, 8x BNC out)

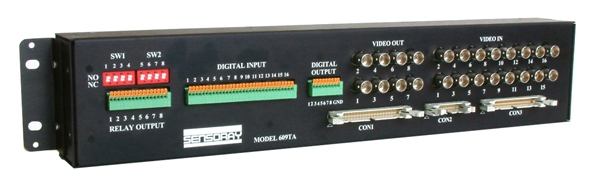

Model 609TA-ND breakout board


Model 609TC provides sixteen BNCs for camera connections and is 2U height

609TC (16x BNC for camera connections)

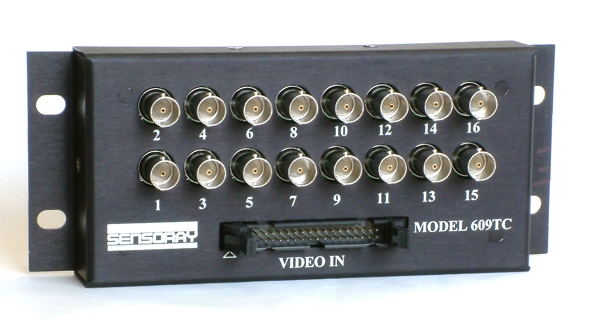

Model 609TC breakout board


Model 609TE provides sixteen BNCs for camera connections and fits in the space of a PC's CD player

609TE (16x BNC for camera connections)

Model 609TE breakout board

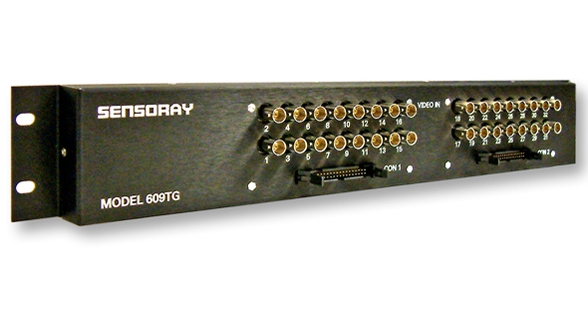

Model 609TG supports thirty-two camera connections and is 2U height for 19" enclosure

609TG (32 camera connections)

Model 609TG breakout board

Specifications

Video
Video sources NTSC, PAL, RS-170, CCIR
Video inputs 16 analog composite; 75 Ω input impedance
Video outputs 4 analog composite with individual on/off capability; 75 Ω output impedance
Output formats Compressed: JPEG (ITU-T T.81 | ISO/IEC 10918-1)
Uncompressed: monochrome Y8 (8 bits/pixel)
Output resolution NTSC: 4CIF, 640 X 480; 2CIF, 640 X 240; 320 X 240
PAL: 4CIF, 704 X 576; 2CIF, 704 X 288; 1CIF, 352 X 288
A/D resolution: luminance channel 8-bit
A/D resolution: chrominance channel 8-bit
Capture rate JPEG only or bitmap only at any size: 480 fps (NTSC), 400 fps (PAL)
JPEG and bitmap simultaneously: 4CIF: 400 fps (NTSC), 330 fps (PAL)
2CIF, 1CIF: 480 fps (NTSC), 400 fps (PAL)
Other
Bus requirements PCI Express 1.1, x1 or wider
Power consumption 15 W (3.3 V)
Operating temperature 0 to 50 °C (with convection cooling)

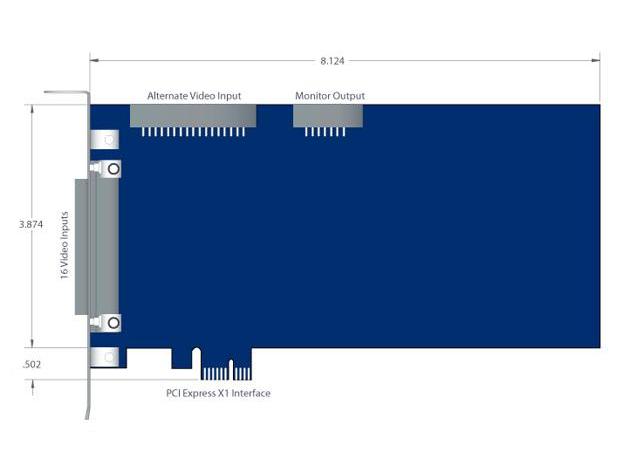

Model 817 dimensions


Documentation

File Version Type Size
817 Software Manual1.0.2PDF371 KB
817 Hardware Manual1.0.4PDF707 KB

Downloads

File Version Type Size
817 Windows SDK2.0.7ZIP25.42 MB
817 Linux SDK2.0.4GZ178 KB
Other Operating Systems
Need a software development kit for another operating system? We can port our SDK to
your OS or provide the information you need to do it yourself. Contact Sales for details.

Pricing & Ordering

Model Description Qty 1 Qty 2-9 Order Qty.
81716-channel frame grabber with 16x4 crosspoint switch$1050$965
Distribution Amplifiers
817TA16-channel distribution amplifier board$173$173
817TAS16-channel distribution amplifier w/ Enclosure$216$216
Camera Connection Boxes
609TA-NDCamera connection box, 2U rack mount, GPIO, 16 in/8 out$296$268
609TCCamera connection box, breakout to 16 BNC, panel mount$97$85
609TECamera connection box, breakout to 16 BNC, CD-ROM form factor$129$117
609TGCamera connection box, breakout to 32 BNC, 2U 19 inch rackmount$286$259
Cables
609C1Cable, flat, 16-channel video input, 50cm$23$21
817C1Cable, DB37 to IDC34 .100 inch$18$18
