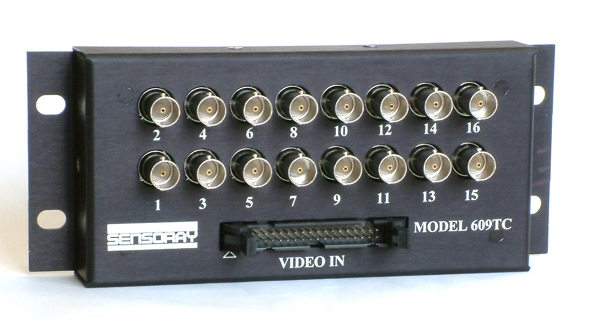

Model 609TC | Camera Connection Box, Breakout to 16 BNC, Panel Mount

Model 609TC Camera Connection Box, Breakout to 16 BNC, Panel Mount
  • Provides 16 BNCs for camera connections
  • 2U height

Description

This accessory box allows the connection of cameras and video monitors to models 609, 615, 617 and 817 frame grabbers. Signal connections between the frame grabber boards and the box are via flat cables.

Example of Model 609TC with Model 817 frame grabber


Video inputs

Sixteen BNCs connect composite video to the frame grabbers.

Specifications

Compatible frame grabbersModels 609, 615, 617 and 817
Video inputs16 (one model 609/615/617/817 required)
Dimensions(W x H x D): 6.00 x 3.00 x 1.00 inches

Documentation

File Version Type Size
Model 609TC Dimension Drawing1.0.0PDF110 KB

Pricing & Ordering

Model Description Qty 1 Qty 2-9 Order Qty.
60916x8 Crosspoint Switch and Frame GrabberCallCall
Camera Connection Boxes
609TACamera Connection Box, 2U Rack Mount, 16 in/8 out$347$317
609TA-NDCamera Connection Box, 2U Rack Mount, GPIO, 16 in/8 out$277$251
609TCCamera Connection Box, Breakout to 16 BNC, Panel Mount$91$80
609TECamera Connection Box, Breakout to 16 BNC, CD-ROM Form Factor$121$110
609TGCamera Connection Box, Breakout to 32 BNC, 2U 19 inch Rackmount$268$242
Cables
609C1Cable, flat, 16-channel video input, 50cm$22$20
609C5Cable, with 3-header connector, for model 615$17$17
609C7-40Cable, 16 monitor output, 1 meter$47$42
7409C1Cable, flat, 40 conductor, 1 meter$29$26
