Camera connection box, 2U rack mount, GPIO, 16 in/8 out | Model 609TA-ND

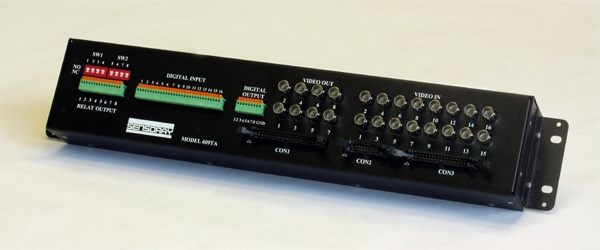

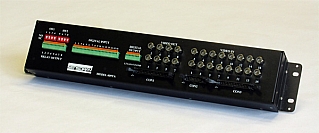

Model 609TA-ND Camera connection box, 2U rack mount, GPIO, 16 in/8 out
  • Connectors for 16 composite video inputs, 8 video outputs
  • 8 mechanical relay outputs with NC, NO selection
  • 16 optically isolated digital inputs
  • 8 open collector digital outputs
  • Available without digital I/O

Description

This accessory box allows the connection of cameras, video monitors and digital I/O signals to model 609, 615 and 617 frame grabbers. Signal connections between the frame grabber boards and the box are via flat cables.

Model 609TA-ND application


Video inputs

Sixteen BNCs connect composite video to the frame grabbers. Transorb diodes protect each input from power surges.

Video outputs

Eight real-time video outputs are available for display on video monitors.

If two 609 frame grabber boards are used, any of the thirty two video inputs may be connected to any eight of the video outputs. If two 617 frame grabber boards are used, any of the thirty two inputs may be connected to any of the first four video outputs. Transorb protection diodes on the 609TA help protect the frame grabber.

Relay outputs

Sixteen electromechanical relays are available for switching bipolar circuits of up to two amps. Circuits on each 609 or 617 frame grabber activate sixteen relays. A slide switch above each set of relay terminals allows selecting normally open or normally closed operation.

Digital inputs

Sixteen digital inputs are available for sensing external events. Each input is optically isolated from the 609 or 617 frame grabber board.

Digital I/O from 609TA to 609 board


Enclosure mounting

Two removable mounting brackets may be attached to the box in two different positions to allow mounting in a standard 19-inch enclosure or attachment to a vertical or horizontal surface.

Specifications

General
Compatible frame grabbersModels 609, 615, and 617
Weight2.2 lb. (1 kg)
Dimensions(W x H x D): 19.00 x 3.50 x 2.05 inches; 482.6 x 89.0 x 52.0 mm
Inputs
Video inputs16 (one model 609/615/617 required)
Optically isolated digital inputs16 (one model 609/617 required)
Max. input voltage protection6 V
Digital input amplitude5 to 48 V
Outputs
Real-time video outputs8 (with 609 frame grabber)
4 (with 617 frame grabber)
Open collector digital outputs8 (one model 609/617 required)
Open collector load rating5 VDC, 25 mA
Relays
Form-C relays8 (one model 609/617 required)
Relay contact rating2A, 30 VDC

Documentation

FileVersionDate M-D-YTypeSize
Model 609TA Dimension Drawing1.0.010-24-19PDF145 KB

Pricing & Ordering

Model Description Qty 1 Qty 2-9 Order Qty.
60916x8 crosspoint switch and frame grabberCallCall
Camera Connection Boxes
609TACamera connection box, 2U rack mount, 16 in/8 out$427$390
609TA-NDCamera connection box, 2U rack mount, GPIO, 16 in/8 out$340$308
609TCCamera connection box, breakout to 16 BNC, panel mount$112$98
609TECamera connection box, breakout to 16 BNC, CD-ROM form factor$148$135
609TGCamera connection box, breakout to 32 BNC, 2U 19 inch rackmount$329$298
Cables
609C1Cable, flat, 16-channel video input, 50cm$26$24
609C5Cable, with 3-header connector, for model 615$21$21
609C7-40Cable, 16 monitor output, 1 meter$57$52
7409C1Cable, flat, 40 conductor, 1 meter$36$32
