Camera connection box, breakout to 32 BNC, 2U 19 inch rackmount | Model 609TG
- Provides 16 BNCs for camera connections
- 2U height for 19" rack mount enclosure
Description
This accessory box allows the connection of cameras and video monitors to model 609, 615, 617, and 817 frame grabbers. Signal connections between the frame grabber boards and the box are via flat cables

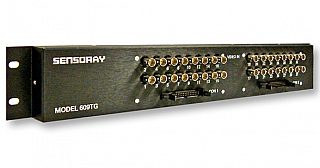

Example of Model 609TG with Model 817 frame grabber
Video inputs
Sixteen BNCs connect composite video to the frame grabbers
Specifications
| Compatible frame grabbers | Models 609, 615, 617 and 817 |
| Video inputs | 16 (one model 609/615/617/817 required) |
| Dimensions | (W x H x D): 19.00 x 3.50 x 3.00 inches |
Documentation
| File | Version | Date M-D-Y | Type | Size |
|---|---|---|---|---|
| Model 609TB Dimension Drawing | 1.0.0 | 10-24-19 | 100 KB |
