Model 622 | Video output interface

Model 622 Video output interface
  • Decodes and displays MJPEG images
  • Composite and S-Video outputs for VHS recorders and TV monitors

Description

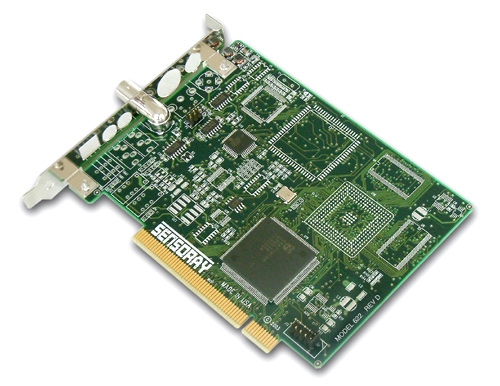

Model 622 is a video output board. Together, the included software and video output board decompress stored JPEG images and generate composite video for VHS tape recorders or for display on a TV monitor. Unlike conventional graphics boards, the 622 does not display the computer's desktop, it only displays the selected JPEG file.

The software program reads JPEG image files, decompresses and transfers them to the 622 board. A video decoder on the board converts the data to NTSC/PAL composite and S-video.

Accessories

Model 622 may be used with JPEG and MJPEG files generated by Sensoray's 615 and 617 JPEG capture boards. It is supplied with a Windows compatible DLL and sample application program.
Model Description
61516-channel JPEG frame grabber
61716-input JPEG frame grabber

Specifications

Computer busPCI 2.1
Supported operating systemsWindows 2000, NT, XP
Video outputs1 Vpp NTSC/PAL composite
1 Vpp Y and C video
JPEG decoding640x480, 320x240 NTSC
704x544, 352x272 PAL
Video resolutions12 mA
Frame rates30 frames/second NTSC
25 frames/second PAL
Dimensions(W x H): 7.0 x 4.2 inches; 178 x 107 mm

Downloads

File Version Type Size
Model 622 Software and Manual1.0.0ZIP867 KB
Other Operating Systems
Need a software development kit for another operating system? We can port our SDK to
your OS or provide the information you need to do it yourself. Contact Sales for details.

Pricing & Ordering

Model Description Qty 1 Qty 2-9 Order Qty.
622Video output interface$297$270
