Model 617 | 16-input JPEG frame grabber

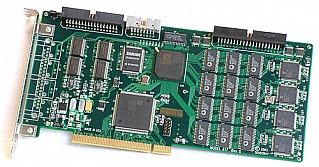

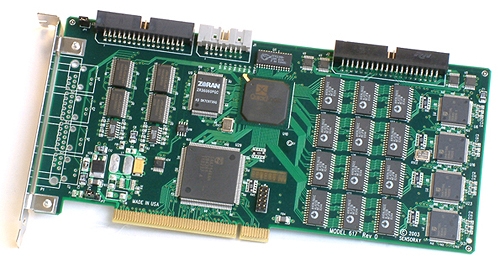

Model 617 16-input JPEG frame grabber
  • 30 fps for interlaced NTSC, 25 fps for interlaced PAL
  • 16 video inputs, 4 real-time outputs, 32 digital I/O
  • Full resolution, full frame rate hardware JPEG compression of NTSC, PAL, SECAM
  • Text overlay buffer for frame annotation
  • Lower cost 4-channel, Model 617-4 available
  • Uncompressed frames available for external motion detection

Model 617 is obsolete. This archived information is provided as a courtesy to customers who own model 617 units.

Description

Model 617 combines the functions of a 16x4 video crosspoint switch, a frame grabber, hardware JPEG compression and digital I/O into one PCI board. The 617 accepts sixteen composite video inputs and routes any four of them to separate video decoders for digitizing. The use of four decoders eliminates losing frames during channel switching. At least two decoders are always in sync and ready for the JPEG compression circuit.

The 617 uses multiple frame buffers to interlace full size images before they are compressed. This allows the 617 to generate just one compressed image per frame instead of two per interlaced frame.

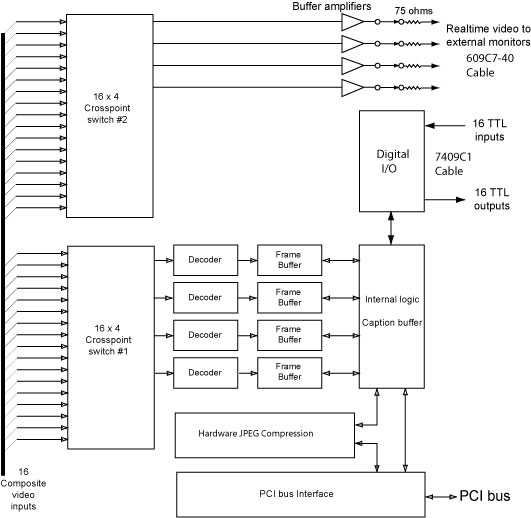

Model 617 block diagram


Frame rates

Each of the four decoders digitizes 30 frames per second to give an overall board throughput of 30 fps for 640x480 interlaced frames, including JPEG compression. If all sixteen channels are used, the frame rate per channel is 1.8 fps.

Hardware compression

Model 617 executes hardware JPEG compression to greatly reduce the amount of memory needed to store images. Hardware compression reduces the CPU and PCI bus loading.

Multiple boards

Sensoray's software supports multiple 617s in the same PCI bus. For example, two 617s may be used to expand the number of video inputs to thirty two. If sixteen inputs are distributed between two boards the overall capture rate increases to 3.7 fps per channel.

Real-time outputs

Any four of the sixteen inputs may be routed to four output channels for display on video monitors. A software-selectable switch after each buffer amplifier allows multiple 617s to share the same video monitor.

Input clamping

Each input channel has a clamping circuit to minimize the effects of switching from one floating camera signal to another. Image artifacts from a previous channel will not affect the current channel.

Text caption buffer

Model 617's caption buffer allows overlaying text on each frame. The text is within a transparent box that may be positioned anywhere within the frame. The text size and color are programmable.

Special output

The 617 also supplies small-size uncompressed frames suitable for motion detection by the host computer. These are 128x96 pixels or 256x192.

Model 617-4, 4 channel output

Model 617-4 is a lower-cost version of the model 617 with just four video inputs, four real-time video outputs, and 16 digital I/O signals. Video inputs are connected directly to BNCs located on the board's hold-down bracket. The 617-4 has a faster frame capture rate than the 617.

The overall board throughput is 120 fps for 320x240 size frames, 60 fps for 640x240 size frames, and 30 fps for 640x480 interlaced frames.

Model 817TA distribution amplifier

Model 817TA is an indispensable tool for application development and troubleshooting with Sensoray's 16-channel frame grabbers (models 615, 617 and 817). Model 817TA takes one standard composite TV video signal (BNC connector) and splits it into 16 buffered outputs of standard amplitude and impedance. The outputs are connected to a 34-pin ribbon cable connector standard for above mentioned frame grabbers. A combination of models 817TA and 609TC, TE or TG yields a splitter with 16 BNC outputs.

Termination boxes

A termination box is recommended for interfacing the video signal to the Model 617. A flat cable, Model 609C1 (video in) is needed.

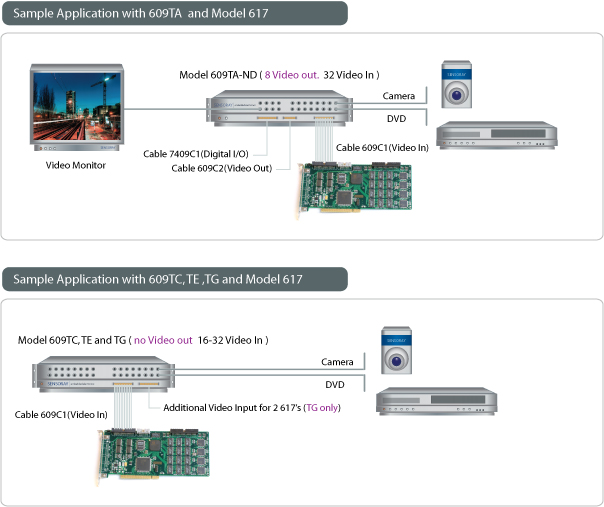

Model 617 application with termination boxes


Specifications

Capture & JPEG rate30 frames/second for 640x480 NTSC
25 frames/second for 704x544 PAL
A/D resolution9 bits luminance, 9 bits chrominance
Video inputs16 composite inputs, 75 Ω
Video outputs4 real-time
Hardware compressionJPEG
Caption buffer64 bytes
Digital inputs16 TTL compatible
Digital outputs16 TTL compatible
Frame rates
Number of cameras NTSC frames/second PAL frames/second
1 30 25
2 15 12.5
4 7.5 6.25
8 3.75 3.12
16 1.88 1.56

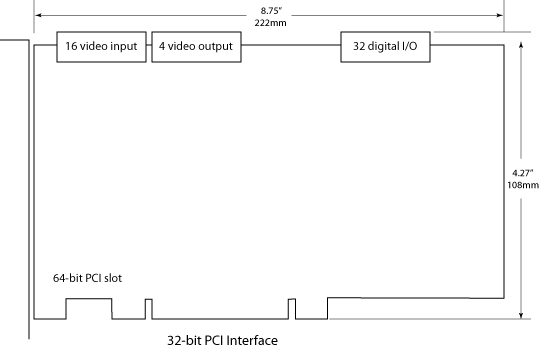

Model 617 dimensions


Documentation

File Version Type Size
Model 617 Hardware Manual1.0.0PDF205 KB
Model 617 Software Manual1.0.0PDF63 KB

Downloads

File Version Type Size
Model 617 Linux Software Development Kit2.4.0GZ31 KB
Model 617 Windows Software Development Kit (64-bit)2.4.0ZIP15.15 MB
Other Operating Systems
Need a software development kit for another operating system? We can port our SDK to
your OS or provide the information you need to do it yourself. Contact Sales for details.

Pricing & Ordering

Model Description Qty 1 Qty 2-9 Order Qty.
61716-input JPEG frame grabberCallCall
Distribution amplifiers
817TA16-channel distribution amplifier board$162$162
Camera connection boxes
609TACamera connection box, 2U rack mount, 16 in/8 out$347$317
609TA-NDCamera connection box, 2U rack mount, GPIO, 16 in/8 out$277$251
609TCCamera connection box, breakout to 16 BNC, panel mount$91$80
609TECamera connection box, breakout to 16 BNC, CD-ROM form factor$121$110
609TGCamera connection box, breakout to 32 BNC, 2U 19 inch rackmount$268$242
Cables
609C1Cable, flat, 16-channel video input, 50cm$22$20
609C2Cable, 24 inches, 16-conductor flat to 8 BNC$35$32
609C5Cable, with 3-header connector, for model 615$17$17
609C7-40Cable, 16 monitor output, 1 meter$47$42
7409C1Cable, flat, 40 conductor, 1 meter$29$26
