Model 614 MPEG-4/2/1, MJPEG A/V Encoder
  • Real time MPEG-4/2/1 and MJPEG plus audio
  • Advanced video overlay for annotation or caption
  • Uncompressed preview and capture through PCI
  • Built-in motion detection

Description

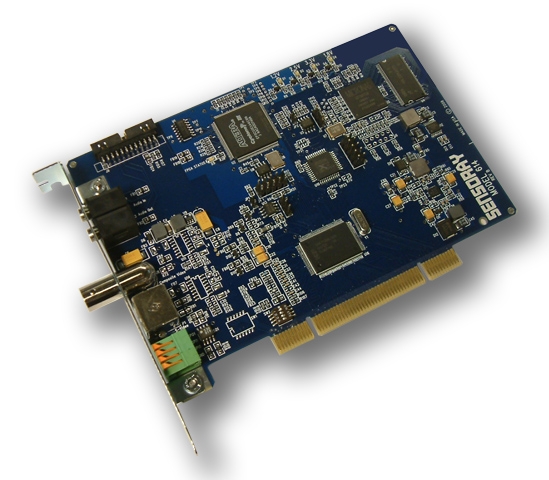

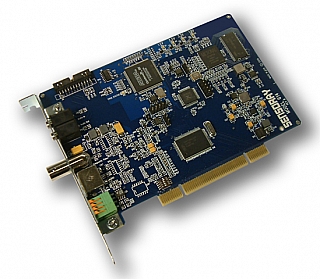

Sensoray's model 614 is a low-cost MPEG-4/2/1 and MJPEG frame grabber that captures full-frame (720 x 480) video at 30 frames per second. Uncompressed video is available through the PCI bus for previewing and capturing. It also has two synchronized audio input channels and an advanced image overlay feature that is fully implemented with hardware.

Video Overlay

Captured compressed video can be imposed with up to eight windows of caption or annotation overlay. Text and image overlay are supported. Up to 64 characters or bitmap blocks can be inserted into each of the eight windows.

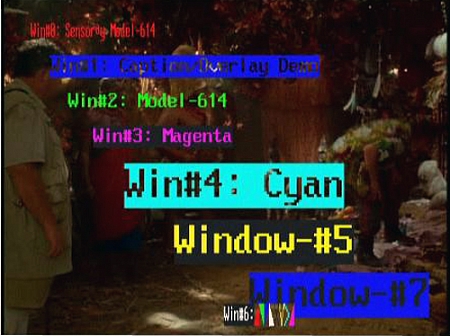

Example Model 614 Overlay Frame


Uncompressed Capture

Model 614 can function as a conventional frame grabber by supplying uncompressed video with low latency and snapshots of single frames.

Motion Detection

The 614 performs motion detection in three user-programmable regions of interest. For each separate region of interest, the user can set up different motion detection sensitivity. Within the regions of interest, motion can be further localized to a 16x16 pixel block.

Motion Detection Regions of Interest


Audio Multiplexing

Digitized audio from the Model 614 is multiplexed into MPEG streams by a Sensoray-supplied software in the SDK. Hence, the 614 does perform A/V multiplexing as do the models 314 and 616. The audio signal can be connected to the 614 via a stereo audio jack or through the 24-pin header.

Advantages of Compression

MPEG and MJPEG data reduce the amount of memory required to store full-motion video. The compressed data requires a smaller transmission bandwidth. MJPEG data is typically compressed by a factor of 20, while MPEG-2 and -4 are compressed by a factor of 100. Image compression makes it possible to transmit 30 frames/second of MPEG video over the PCI bus. The hardware compression circuit uses a motion estimation algorithm to produce smooth images from interlaced cameras.

Specifications

Function
Video Input 4 multiplexed input channels
2 S-Video or 4 Composite
Maximum Resolution Full-D1
NTSC 700x480 (at 30 fps)
PAL 720x576 (at 25 fps)
Supported Resolution D1.N, D1.P, D.5
SIF, 2SIF, 4SIF
CIF, QCIF, SQCIF, 4CIF
VGA, QVGA, QQVGA
Dimensions(W x H): 6.00 x 4.20 inches

Documentation

File Version Type Size
Model 614 Instruction Manual1.0.0PDF772 KB
Verified Model 614 Features1.0.0PDF10 KB
Model 614 Windows SDK User Manual1.0.0PDF183 KB
Model 614 Caption Overlay Programming Guide1.0.0PDF91 KB

Downloads

File Version Type Size
Windows SDK (software developer's kit)1.0.0ZIP15.37 MB
Open Source Linux Driver4.1.0BZ24.09 MB
Other Operating Systems
Need a software development kit for another operating system? We can port our SDK to
your OS or provide the information you need to do it yourself. Contact Sales for details.

Pricing & Ordering

Model Description Qty 1 Qty 2-9 Order Qty.
614MPEG-4/2/1, MJPEG A/V Encoder$439$400
