Model 201 | 24 V 10 Watt Power Supply

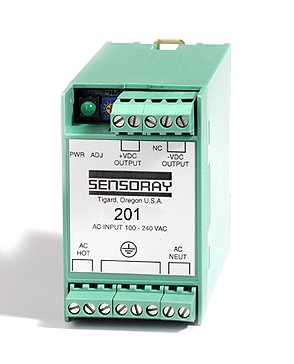

Model 201 24 V 10 Watt Power Supply
  • Low cost
  • Compact size
  • DIN rail mountable
  • Input: 100 to 240 VAC
  • Output: 24 VDC, 0.45 A

Description

Model 201 converts AC power from the mains into 24 VDC. It can power up to two model 2518 or 2519 Ethernet sensor interface modules. The unit mounts onto standard, 35 mm DIN rails in seconds by simply snapping it on. A green LED next to the output terminals indicate whether output voltage is available, and a trimpot allows adjustment of the 24 V output voltage by ±5%.

Application Example

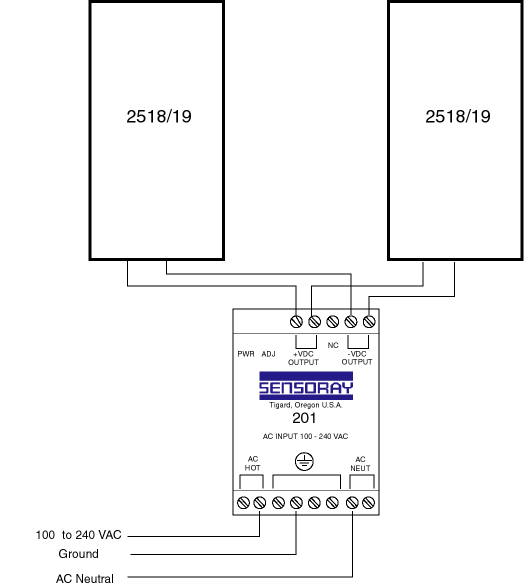

Two Smart A/D modules powered by a Model 201 power supply


Accessories

Model Description
2518DIN8-Channel Smart Sensor Interface, DIN rail mountable
2519DIN16-Channel Smart Sensor Interface, DIN rail mountable

Specifications

Input voltage range100 to 240 VAC (50/60 Hz)
Maximum output current
(at 120 VAC input)
.45 A (at 24 VDC)
Fuse type0.8 A

Pricing & Ordering

Model Description Qty 1 Qty 2-9 Order Qty.
20124 V 10 Watt Power Supply$152$136
