Model 911 | 4-channel A/V frame grabber with PCI pass-through connector

Model 911 4-channel A/V frame grabber with PCI pass-through connector
  • 4 NTSC/PAL composite/S-Video + 4 stereo audio inputs
  • Simultaneously captures multiple channels
  • RGB, YUV video formats
  • VB1 support
  • 4 GPIOs

Description

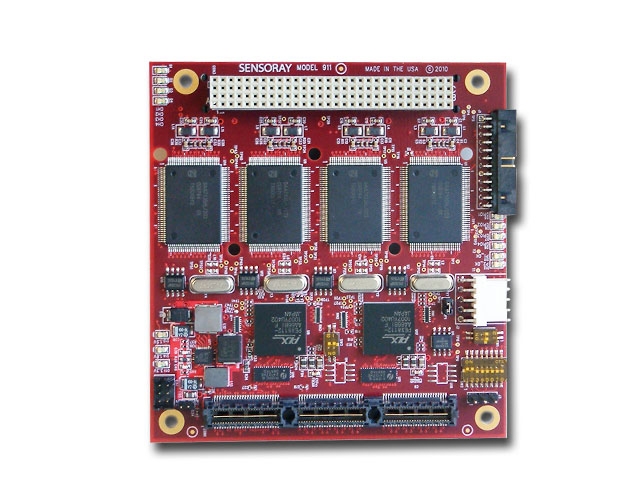

Model 911 is a PCI/104-Express board that simultaneously captures four channels of analog video and four channels of stereo audio. It captures raw video frames from each channel at up to full frame rate, resulting in an aggregate frame capture rate of up to 120 fps for NTSC and 100 fps for PAL. The 911's high frame capture rate, coupled with its high performance bus interface, makes it well-suited for applications that require uncompromising capturing of multiple video sources in a compact form factor.

A 24-pin header provides convenient access to all I/O signals on the board. This enables all of the board's I/O signals to be routed through a single cable to a custom termination system or to one of Sensoray's standard breakout boards (see Accessories).

The board's PCI/104-Express connectors support both stack-up and stack-down so that the board can be located anywhere in the stack, and its full conformance to the PCI/104-Express specification guarantees that it won't mechanically interfere with adjacent boards.

All operating power is obtained from the PCI/104-Express bus; no external power supply is needed.

Video

Each of the four video inputs may be connected to a composite or S-video source, or left unconnected if not used. The unit supports a wide range of video capture resolutions, including D1, VGA, QVGA, QQVGA, SIF, 2SIF, 4SIF, CIF, QCIF, SQCIF, and 4CIF. Captured frames are formatted as raw RGB or YUV.

Digital I/Os

Four general-purpose digital I/O (GPIO) signals are available for controlling cameras and illumination sources, alarm signal monitoring, etc. The GPIOs may be configured to function as all outputs or all inputs.

Software

Software Development Kits (SDKs) are available for both Linux and Windows developers. The SDKs include drivers, programming examples, and comprehensive documentation to enable programmers to quickly develop custom application software for the 911.

System Requirements

Due to the extremely high data rates involved, a computer with sufficient bandwidth and processing power is required to ensure error-free processing of the video streams produced by Model 911. Sensoray has tested Model 911 with a cross-section of computers to help you determine whether your system will support these high data rates. For details see 911 Performance Benchmarks.

Qualified computers

Single-board computers (SBCs) are a great way to take advantage of the 911's compact size and advanced capabilities. Sensoray is continually testing new SBCs; qualified units are listed at 911 Verified SBCs.

Accessories

Sensoray offers several breakout boards that route the 911's video, audio and digital I/O signals to standard connectors. All of the breakout boards are designed to directly connect to the 911's 24-pin I/O header with a single cable.


Model 811TA-SVIDEO breaks out all of the 911's video inputs and digital I/O signals. It has four S-Video input connectors and a spring terminal block for digital I/Os.

811TA-SVIDEO (4x S-Video in, 4 digital I/O)

811TA-SVIDEO breakout board


Model 911TA combines a 911TC and 911TB to provide connectors for four audio inputs and four composite video inputs. The two-board combination is securely held together with standoffs.

911TA (4x audio in, 4x composite video in)

911TA breakout system

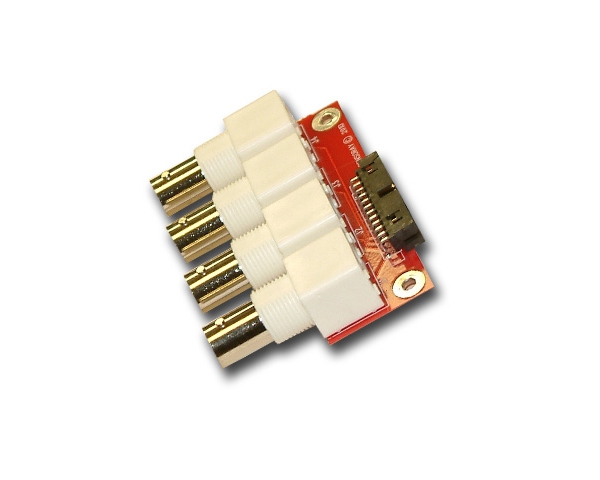

Model 911TB breaks out the four video inputs onto BNC connectors for composite video sources.

911TB (4x composite video in)

911TB breakout board

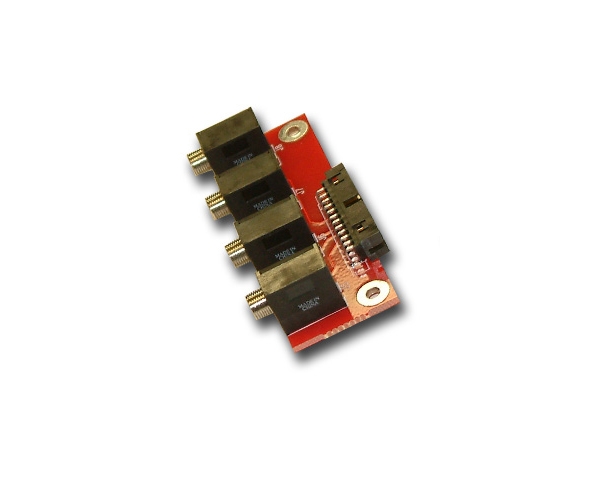

Model 911TC breaks out the four audio inputs onto 3.5mm TRS stereo jacks.

911TC (4x audio in)

911TC breakout board


The Model 911TAC1 cable connects a Model 911 board to any of the above breakout boards. One of its three 24-pin connectors plugs into the 911 board, while one or both of the other connectors can be plugged into breakout boards.

911TAC1 Cable

911TAC1 Cable

Specifications

System Requirements
Computer Due to the extremely high data rates involved, a computer with sufficient bandwidth and processing power is required to ensure error-free processing of the video streams produced by Model 911. Sensoray has tested Model 911 with a cross-section of computers to help you determine whether your system will support these high data rates. For details see 911 Performance Benchmarks.
Video
Inputs Channels 4 simultaneous, in any combination of composite or S-video
Formats NTSC, PAL
Connector Multi-function, 24-pin header
Impedance 75 Ohms
Capture Modes Raw digital frame or video, RGB or YUV
Frame Rate
(maximum)
120 (30x4) frames/sec for NTSC
100 (25x4) frames/sec for PAL
Resolution D1.NTSC: 720x480, D1.PAL: 720x576, SIF: 352x240, 2SIF: 704x240, 4SIF: 704x480, VGA: 640x480, QVGA: 320x240, QQVGA: 160x112, CIF: 352x288, QCIF: 176x144, SQCIF: 128x96, 4CIF: 704x576
Audio
Inputs Channels 4, programmable as stereo or mono per channel
Signal level Line-in level, +/- 1.0V
Connector Multi-function, 24-pin header
Capture Sampling Rate 32 kHz, 44.1 kHz, or 48 kHz
Digital I/O
Channels 4, configurable as all inputs or all outputs
Signal Type TTL compatible
Connector Multi-function, 24-pin header, in parallel with 5-pin Molex connector
Other
Bus Compliance PCI-Express Base Specification (Revision 1.0/1.1)
PCI-to-PCI Bridge Specification (Revision1.2)
Dual PCI-Express lanes ensure 120fps transfers for CPU's capable of high data rates.
Power Nominal 6.5W, +5V @ 1.3A
Temperature Operating 0 to 70°C
Mechanical Dimensions 3.775 x 3.55 inches (96mm x 90mm)

Documentation

File Version Type Size
Manuals
911 Hardware Manual1.0.1PDF820 KB
911 Quick Start Guide - LinuxPDF23 KB
Mechanical Drawings
911 Board Layout and Connector Pinout1.0.0PDF253 KB
911 Mechanical Drawing1.0.0PDF34 KB
911TA Mechanical Drawing1.0.0PDF120 KB
911TB Mechanical Drawing1.0.0PDF108 KB
911TC Mechanical Drawing1.0.0PDF89 KB
Application Notes
Transcoding and Streaming using VLC1.0.0PDF336 KB
911 Verified ComputersPDF38 KB

Downloads

File Version Type Size
SDK Release Notes -- please read before using the SDK1.0.0PDF5 KB
911 Windows SDK1.0.6ZIP21.57 MB
911 LabVIEW Demo1.0.0ZIP175 KB
Other Operating Systems
Need a software development kit for another operating system? We can port our SDK to
your OS or provide the information you need to do it yourself. Contact Sales for details.

Pricing & Ordering

Model Description Qty 1 Qty 2-9 Order Qty.
9114-channel A/V frame grabber with PCI pass-through connector$645$587
911-PCIE4-channel A/V frame grabber (without PCI pass-through connector)$645$587
Termination and Breakout Boards
811TA-SVIDEOTermination Board, 4 S-Video In + 4 Digital I/O$94$88
911TABreakout (audio in and composite video in)$71$65
911TBBreakout (composite video in)$56$51
911TCBreakout (audio in)$54$49
Cables
911TAC1Cable, video$7$7
