Model 7409TB | Breakout board, 40-pin, with temperature sensor

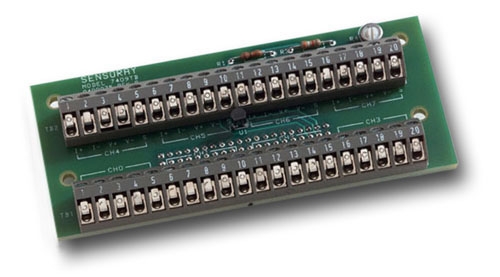

Model 7409TB Breakout board, 40-pin, with temperature sensor
  • Connects eight sensors directly to any Sensoray Smart A/D board
  • Low cost
  • Screw terminals for easy field wiring
  • Cold-junction sensor for thermocouples
  • Small size-4.6 by 2 inches
  • Connects to all Sensoray Smart A/D models and interface boards 421, 425, and 7405

Description

The Sensoray Model 7409TB Termination Board provides a low-cost interface between sensor field wiring and any Sensor A/D or D/A board. It simplifies field wiring by breaking out flat cable to screw terminals.

Thermocouple Reference

A temperature sensor on the 7409TB supplies a dedicated ninth channel with a measure of the temperature at the cold end of thermocouples. 7409TB boards may be painlessly interchanged because each cold-junction sensor is individually calibrated.

Field Connections

Five screw terminals are available for each channel: two for voltage measurement, two for sensor excitation, and one for a shield. Field wires need only be stripped of insulation, inserted into the terminal receptacles, and the screw tightened for a secure connection. A 40-pin header on the back side of the board facilitates panel mounting.

Mechanical

The board is rigidly constructed from 1/8-inch thick FR-4 material to prevent flexing caused by heavy gauge field wires.

Specifications

Input power, excluding output drive current +12 to 15 VDC (at 30 mA)
5 VDC (at 40 mA)
Operating temperature-25 to +85 °C
DAC resolution12 bits
Channel update rate10 kHz per channel
Output linearity0.03%
Output Modes
Voltage+10 V
Current4 to 20 mA
Special (configured at factory) 0 to 5 V
0 to 10 V

Model 7409TB dimensional diagram


Documentation

File Version Type Size
Model 7409TB Manual1.0.0PDF65 KB

Pricing & Ordering

Model Description Qty 1 Qty 2-9 Order Qty.
7409TBBreakout board, 40-pin, with temperature sensor$67$61
Cables
7409CCable, flat, 40 conductor, 18 inches$20$19
7409C1Cable, flat, 40 conductor, 1 meter$29$26
