LVDS to HD-TVI converter | Model 3101
- Transmits HD-TVI video (up to 1080p30) on a single coax cable
- Drives long cables: up to 1000 feet
- Pass-throughs for camera power and serial COM
- Compact size facilitates direct-to-camera and space-limited mounting
- Powered from 12 VDC
- Special order item; minimum quantities apply
Description

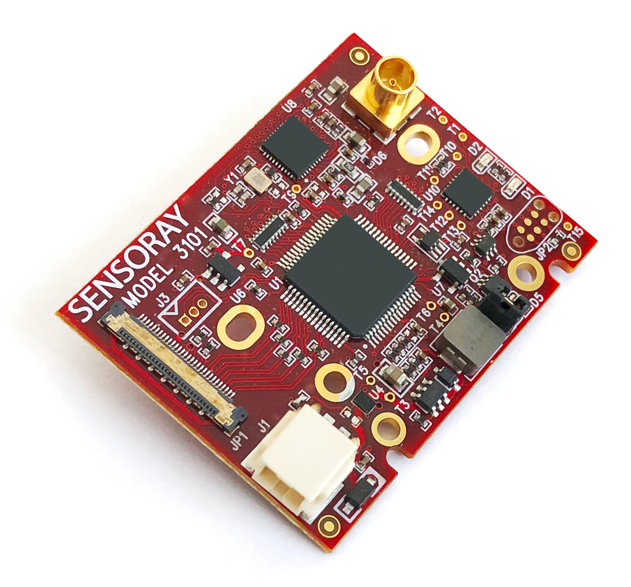

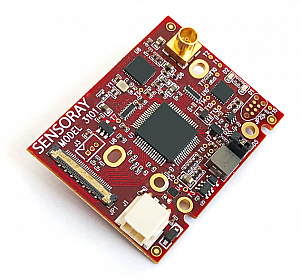

Model 3101 is a stand-alone board that converts the parallel LVDS outputs from an HD video camera to HD-TVI (High Definition Transport Video Interface), thereby making it possible to transmit the video over a single coaxial cable of up to 1000 feet in length. It is supplied as a compact, bare board to allow it to be directly mounted on top of the camera or to fit into any nearby, convenient location in space-constrained applications.

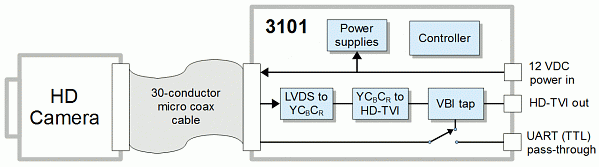

3101 block diagram
A single, external 12 VDC supply provides all necessary operating power for both the camera and 3101 board. The board routes power to the camera, and also includes a connector for pass-through serial communication. Alternatively, the camera's serial communication signals may be routed to the board's VBI data injector/extractor, thus allowing the camera to be controlled over the HD-TVI coaxial cable.
The board employs a 30-pin KEL type connector to convey all camera signals and power. To interface the camera, simply connect it to the 3101 board with a 30-conductor micro coaxial cable (not included). The connector pinout is compatible with industry-standard block cameras such as Sony's FCB-EV7520A.

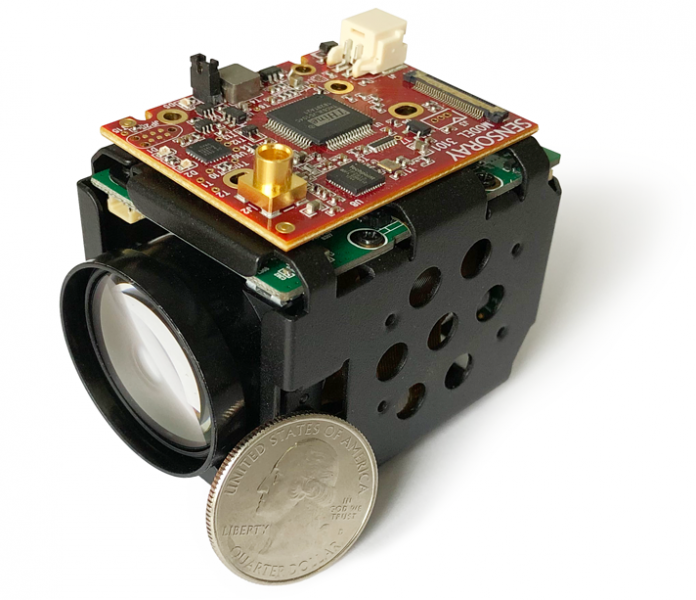

Model 3101 mounted on a block camera
Specifications
| Input | |
|---|---|
| Video formats | 1080p 30/25 720p 60/50/30/25 |
| Signal type | LVDS |
| Connector | 30-pin KEL or equivalent |
| Cable (not included) | 30-conductor micro coaxial cable |
| Output | |
| Signal type | HD-TVI |
| Connector | Mini-coaxial |
| Serial COM | |
| Signal type | TTL logic levels |
| Environmental | |
| Input power | 12 VDC |
Documentation
| File | Version | Date M-D-Y | Type | Size |
|---|---|---|---|---|
| Technical manuals | ||||
| Model 3101 hardware manual | 1.0.0 | 06-18-20 | 303 KB | |
