Model 2446 | Streaming video server

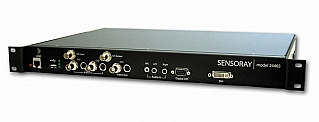

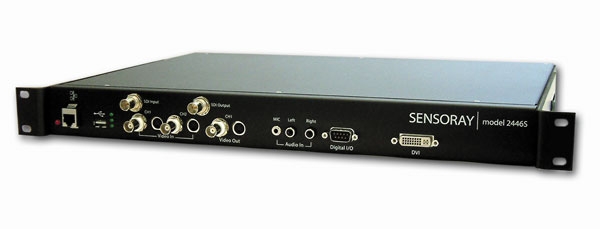

Model 2446 Streaming video server
  • Full screen graphic/text overlay with transparency
  • SDI-HD/SD, SD, DVI video output formats
  • SDI-HD/SD, SD video input formats
  • Real time SD video compression
  • Full resolution snapshots with freeze-frame
  • Analog pass-through on power loss
  • 19-inch 1U rack mountable
  • Low latency

Description

Model 2446 is a rack-mountable streaming video server that compresses one HD or SD video input, and one synchronized audio input, into MPEG-1, MPEG-2, or MPEG-4 format and transmits it via transport stream over Ethernet using UDP or RTP protocol. The host computer controls the server over Ethernet.

Four video outputs are available: SDI-HD/SD, DVI, composite, and S-VIDEO. All outputs are available simultaneously.

Audio may be sourced from embedded SDI audio, external audio line in, or external microphone signals. Audio can be output to embedded SDI, line out, MPEG stream, or any combination of these.

Real time hardware compression is performed by Sensoray's model 2246. The encoded video is playable by commercial set top boxes such as the Amino and open source software like VideoLan.

Latency

When operating under appropriate network conditions, the video into the 2446 can be encoded, transmitted, and displayed by a remote network decoder in less than one second.

On-Screen Display (OSD)

Model 2446 supports text and graphic overlays at 16-bit color resolution. Eight overlappable, hardware-managed regions are supported. Each rectangular region may occupy up to full screen size. Any true-type font can be displayed. Graphics can be displayed from standard .bmp files as well as generated on the fly by Sensoray's 2446 API. The API allows graphics to be easily placed and moved anywhere on the screen. Real-time update rates are possible for small overlay regions, while update rates for larger regions vary depending on computer speed and Ethernet activity.

Image processing

The 2446's scan converter guarantees the DVI output will be synchronized to LCD displays. 25 frame-per-second PAL sources will be displayed at the highest LCD refresh rate. Video compression can be done on both HD and SD sources; HD sources are downscaled to SD prior to compression.

Specifications

Power requirements120 VAC
Dimensions(W x H x D): 19.00 x 12.00 x 1.75 inches
Video inputs
HDTV1920 x 1080 SDI
1080i 25/30 fps
Video formats supported
HDTVSMPTE 295M, SMPTE 274M, SMPTE 296M
SD-SDISMPTE 259M
HD-SDISMPTE 292M
SDTVSMPTE 125
SDTVITU-R BT 601.5
SDI input specifications
Maximum serial input data rate1.485 GB/s
Maximum serial input voltage swing950 mV/p
Input impedance75 Ω, single-ended
Composite
NTSC640 x 480, 30 fps, ±1 V/p
PAL704 x 544, 25 fps, ±1 V/p
S-Video1.18 V/p (when load is 75 Ω)
Audio
Channels2 stereo
Analog input voltage1 V/p
Input resistance1 kΩ, single-ended
Video outputs
DVI for LCD displays60 Hz, 1280 x 1024 display supported at all input resolutions
Maximum DVI output voltage3.475 V
DVI output voltage swing400 to 600 mV/p
ESD (HBM)4000 V
Composite1.25 V/p (when load is 75 Ω)
S-Video1.18 V/p (when load is 75 Ω)
Maximum SDI Serial output data rate1.485 GB/s
Maximum SDI Serial output voltage swing880 mV/p
SDI Output impedance75 Ω, single-ended
Image processing
Compression types MPEG-1 320 x 240
MPEG-2 704 x 544
Scaling1080i/720i to D1 for MPEG compression

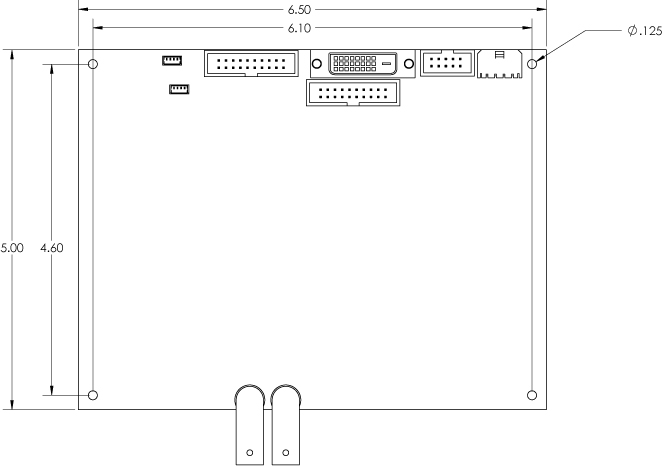

Model 2446 board dimensions

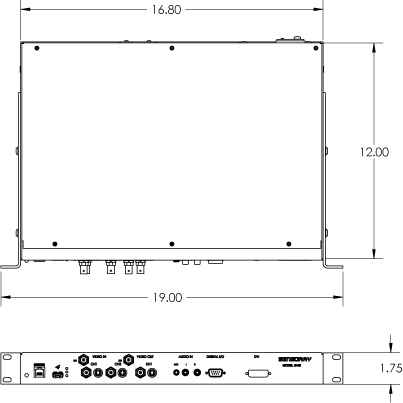

Model 2446 enclosure dimensions


Pricing & Ordering

Model Description Qty 1 Qty 2-9 Order Qty.
2446Streaming video server$4273$4171
