Model 1012 | 8-channel frame grabber with audio capture

Model 1012 8-channel frame grabber with audio capture
  • Simultaneously captures 8 composite video + 8 analog audio
  • 8 NTSC/PAL inputs captured to YUYV, UYVY, RGB555, or RGB565
  • 8 audio inputs captured to PCM
  • Real-time image resize and H/V flip
  • Ultra-compact footprint

Description

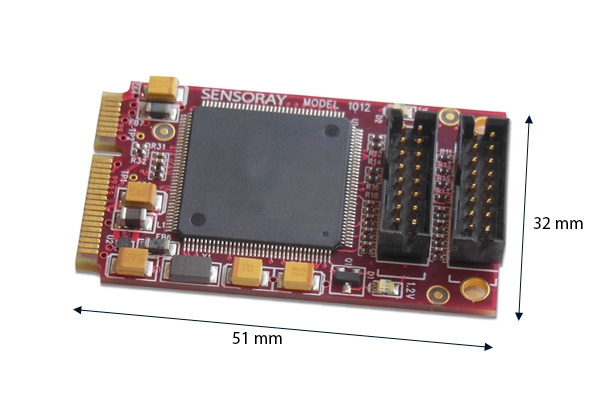

Model 1012 is a Mini PCIe board that simultaneously captures up to eight NTSC/PAL composite video and eight mono analog audio signals. Each of its eight identical channels captures uncompressed video at full frame rate and uncompressed audio at up to 48 kHz.

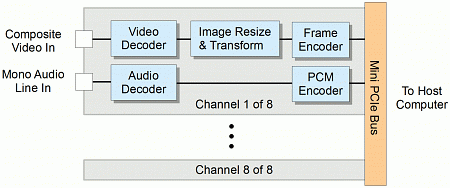

Simplified 1012 block diagram


All operating power is supplied by the Mini PCIe bus, and the board's single-lane (x1) interface allows it to be plugged into any Mini PCIe slot. The 1012's tiny footprint and high performance make it ideally suited for surveillance and other applications in which multiple video and audio signals must be captured at the same time.

Video

The eight video inputs can accept any combination of NTSC and PAL signals. Each channel captures uncompressed video at full frame rate (30 fps NTSC, 25 fps PAL), resulting in an aggregate capture rate of up to 240 fps (NTSC) or 200 fps (PAL), at up to D1 resolution.

The image resizer supports a variety of common resolutions, and images can be flipped horizontally, vertically or both. Captured frames may be formatted as YUYV, UYVY, RGB555, or RGB565.

Audio

Each line-level audio input is captured in PCM format, at a sampling rate of 8, 16, 42, 44.1 or 48 kHz.

Connectors

Two 16-pin headers are used to connect the audio and video inputs to external circuitry. Each header provides access to all audio inputs and four of the eight video inputs.

Software

Software Development Kits (SDK) are available for Linux and Windows. The SDKs include drivers, programming samples, and comprehensive documentation to enable programmers to quickly develop custom applications.

Performance

Due to the extremely high data rates involved, a computer with sufficient bandwidth and processing power is required to ensure error-free processing of the video streams produced by Model 1012.

Sensoray bundles chipset drivers for both Linux and Windows. The Linux driver is high performance and makes possible simultaneous full frame rate capture at D1 resolution from all eight inputs. The Windows driver has lower performance that may impose tradeoffs between the number of active channels and resolution.

The following table shows combinations of channels and resolutions that will reliably result in error-free processing on a typical modern, high performance PC. In general, higher channel counts and resolutions require a higher performance computer. See Performance Benchmarks for examples of the actual performance observed on various computers.

Maximum channels vs. resolution

Driver Streaming video channels Resolution Frames/second per channel
NTSC PAL
Linux 1 - 8 VGA, 4SIF/4CIF, D1, or smaller 30 25
Windows 1 - 4 VGA, 4SIF/4CIF, D1, or smaller 30 25
5 - 8 QVGA, SIF, CIF, or smaller 30 25


In the case of PCs with an Intel chipset, a plug-in graphic video card may be required to obtain satisfactory performance when previewing multiple channels.

Accessories

Sensoray offers breakout boards and cables that route the 1012's video and audio signals to standard connectors.

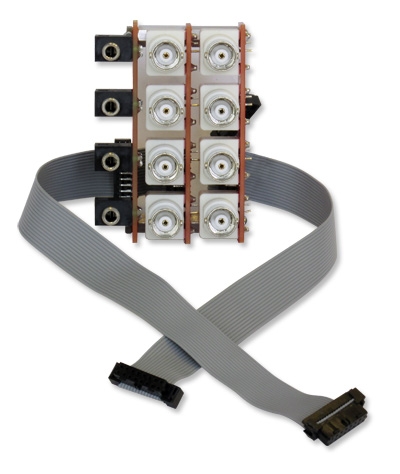

Model 1012TA provides connectors for four 3.5mm audio inputs and eight BNC composite video inputs (includes 953TAC1 cable.)

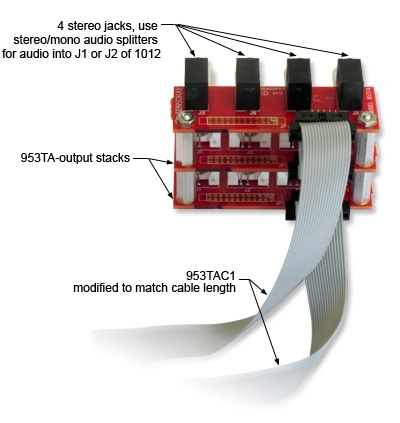

1012TA Connectors

1012TA Connectors1012TA Connectors


The Model 953TAC1 cable connects a Model 1012 board to the 1012TA breakout board. One of its three 16-pin connectors plugs into the 1012 board, while one or both of the other connectors can be plugged into breakout boards. (Available as replacement cable)

953TAC1 Cable

911TAC1 Cable

Specifications

Video
Inputs 8 composite, 75 Ohms
Input formats NTSC, PAL
Output formats UYVY/Y422, YUYV/YUY2, RGB555, RGB565
Aggregate capture rate
(maximum)
NTSC: 240 (30x8) frames/sec
PAL: 200 (25x8) frames/sec
Resolution D1 (720x480 NTSC, 720x576 PAL)
SIF (352x240), 2SIF (704x240), 4SIF (704x480)
VGA (640x480), QVGA (320x240), QQVGA (160x120)
CIF (352x288), QCIF (176x144), SQCIF (128x96), 4CIF (704x576)
Audio
Inputs 8 mono, line level
Output format PCM
Resolution 16 bits
Sample rate 8, 16, 32, 44.1, or 48 kHz
Environmental
Bus PCI-Express Mini x1, compliant with PCI-Express base specification rev 1.1/2.0
Input power <1W (+3.3V @ 300mA)
Operating temperature 0 - 70 °C (Standard/Commercial version)
-40 °C to +80 °C (Extended/Industrial version)
Mechanical dimensions 50.95mm x 30mm

Documentation

File Version Type Size
Manuals
1012 Hardware Manual1.0.0PDF362 KB
812/1012 Windows Software Manual1.0.17PDF519 KB
Application Notes
1012 Verified ComputersPDF34 KB

Downloads

File Version Type Size
812/1012 Windows Software Development Kit1.0.17ZIP18 MB
812/1012 Linux Software Development Kit1.1.14ZIP151 KB
Other Operating Systems
Need a software development kit for another operating system? We can port our SDK to
your OS or provide the information you need to do it yourself. Contact Sales for details.

Pricing & Ordering

Model Description Qty 1 Qty 2-9 Order Qty.
10128-channel frame grabber with audio capture$99$96
1012-ET8-channel Mini PCIe frame grabber, extended temperature$113$110
Breakout Boards
1012TA16 pin break-out (audio in and composite video in)$67$61
Cables
953TAC1Cable, 16 conductor, for 953 breakout boards$7$7
