USB 2.0 HD video SDI/DVI/composite capture device | Model 2271
- HD (up to 1080p30)/SD video capture from DVI, VGA, SDI or composite
- H.264 HP@L3 / MJPEG video compression
- Scaled down uncompressed capture
- Unicode text and graphic overlay (monochrome)
- UVC compliant
- USB 2.0, bus powered
- Available as a bare board or in a metal enclosure
Description
Model 2271 is a USB 2.0 HD video capture device. It accepts SDI, DVI, and composite video. It captures uncompressed SD or scaled down HD video and will compress resolutions up to 1080p30 (from one of 3 inputs at a time). It can simultaneously send both compressed and uncompressed video to the host computer.

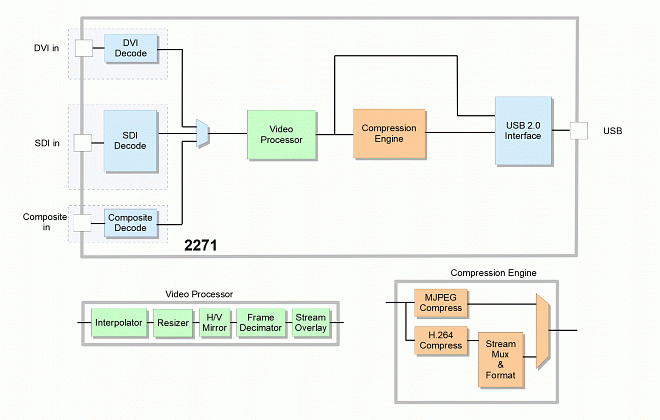

2271 block diagram
Software
The unit is a fully compliant UVC (USB Video Class) device that works with any standard UVC driver, thus eliminating the need for a custom driver and allowing seamless control through video APIs such as DirectShow and Video4Linux.
Free Linux and Windows software development kits (SDKs) are available for model 2271. The SDKs include our versatile high-level API with popular functions such as snapshot capture, recording to files (in AVI, MP4 and TS formats), overlay management and, to facilitate styled text, functions for drawing Unicode text on video overlays. Also included is a comprehensive demo program that shows off the device's full capabilities, complete with source code that serves as an ideal starting point for custom applications.
Packaging options
Model 2271 is available as a bare board (2271) or as an enclosed unit (2271S).

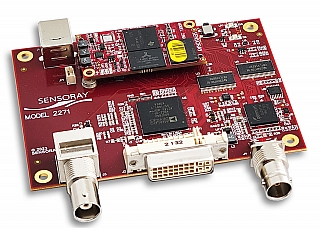

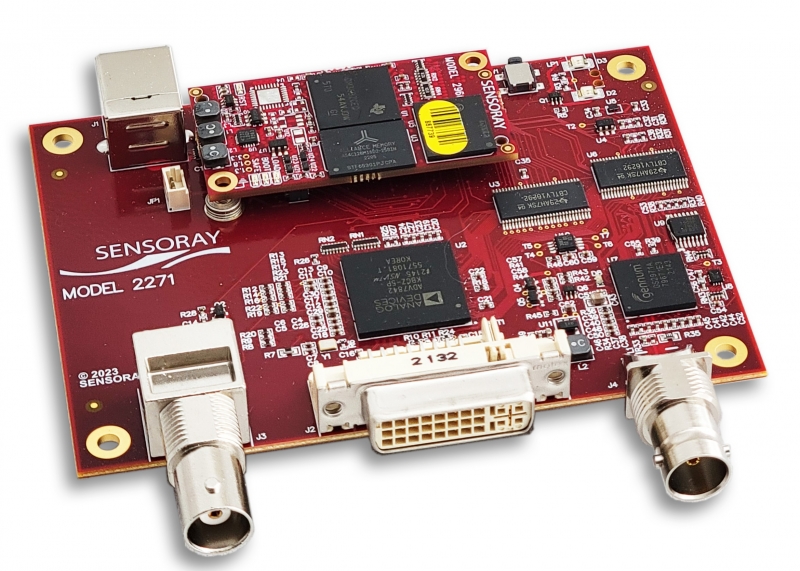

Model 2271 bare board

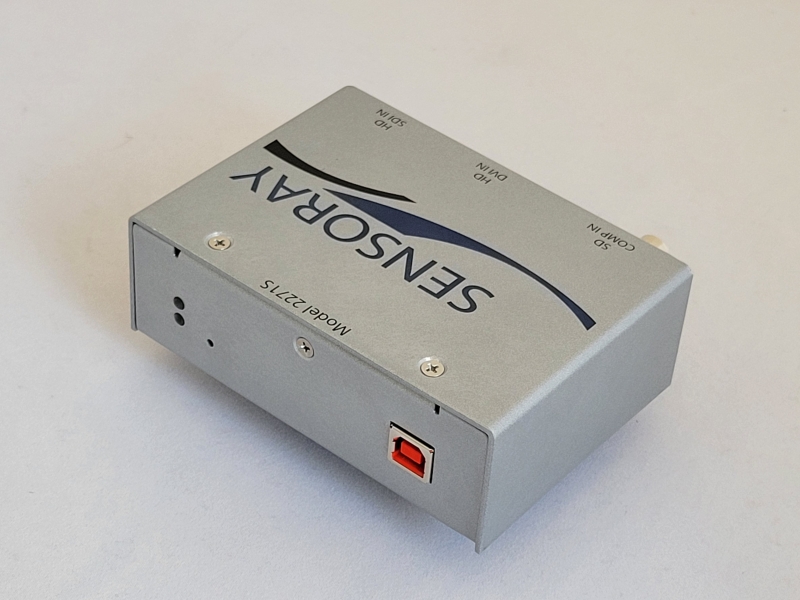

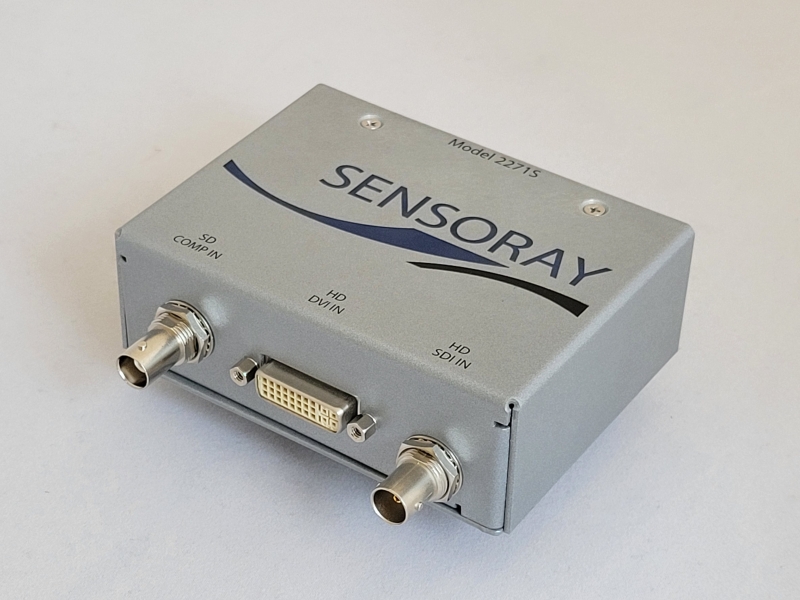

Model 2271S features a sturdy metal enclosure with video and USB connectors.
Specifications
| SDI video input | |
|---|---|
| Data rates | 270 Mbps, 1.483 Gbps, 1.485 Gbps |
| Standards | SMPTE 259M(C), SMPTE 292, SMPTE 424M |
| Maximum resolution/frame rate | 1920x1080p30 |
| Connector type/impedance | BNC, 75 Ohm |
| DVI video input | |
| Input resolutions/frame rates (DVI, VGA, component) |
720x480i60 720x576i50 1280x720 at p30, p25, p60, p50 1920x1080 at i60, i50, p30, p25, p24 1920x1200p24,p25 1680x1050p30 1600x1200p30, 1600x900p30 1440x900p30, 1360x768p30 1280x1024p60, 1280x960p60, 1280x800p60, 1280x768p60, 1280x720p60 1152x864p60, 1152x648p60 1024x768p85 800x600p85 |
| Connector Type | DVI-I. Component and VGA inputs supported with adapters |
| Composite video input | |
| Input standards | NTSC, PAL |
| Connector Type | BNC, 75 Ohms |
| Output video streams | |
| H.264 | High Profile @ Level 3 (MP4, AVI, transport stream) |
| JPEG | single snapshots, AVI |
| Raw (uncompressed) | UYVY (scaled down for HD inputs) |
| Electrical, mechanical and environmental | |
| Dimensions | 75x101 mm (PCB outline, does not include connectors) |
| Mass | board only: 66 g |
| Operating temperature | 0º to 70º C |
| Interface | USB 2.0 |
| Connector | USB 2.0 type B connector (socket) |
| Power | 2.5 W max |
| Software (Windows and Linux) | |
| Driver | UVC video |
| SDK | Library wrappers around the DirectShow (Windows) or V4L2 (Linux) APIs |
Documentation
| File | Version | Date M-D-Y | Type | Size |
|---|---|---|---|---|
| Technical manuals | ||||
| Software manual for models 2263, 2464, 2271 and 3364 | 1.1.30 | 12-04-24 | 805 KB | |
Downloads
| File | Version | Date M-D-Y | Type | Size |
|---|---|---|---|---|
| 3364 Linux software development kit | 1.1.31 | 12-16-24 | BZ2 | 6.91 MB |
| 3364 Windows software development kit | 1.1.30 | 12-04-24 | ZIP | 31.85 MB |
| Latest firmware | 4106.0.0 | 12-04-24 | ZIP | 6.43 MB |
| Other Operating Systems | ||||
| Need a software development kit for another operating system? We can port our SDK to your OS for a NRE fee or, with a volume commitment, at no additional cost. Contact Sales for details. | ||||
