Miniature 13 megapixel HD IP camera with H.264 compression | Model 3011
- HD 1080p video capture at 30 fps
- 13 megapixel JPEG snapshots
- Image stabilization, autofocus
- Dual output streams
- High sensitivity CMOS sensor
- Supports both PoE and 5 VDC power
Model 3011 is obsolete. This archived information is provided as a courtesy to customers who own model 3011 units.
Description

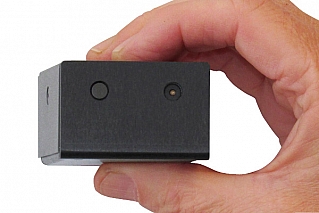

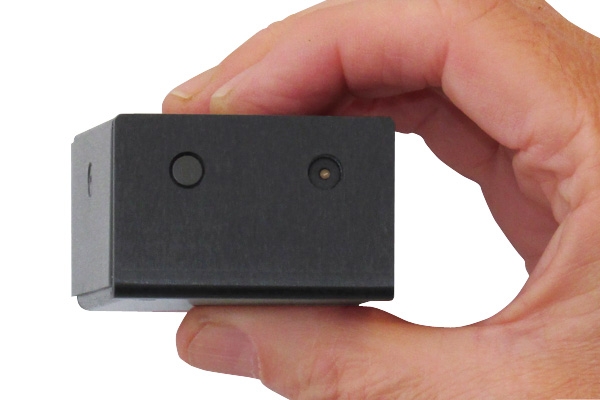

Model 3011S is a miniature HD IP camera in a robust 2.25 x 2.00 x 1.20 inch enclosure, including the lens. It is capable of producing an H.264 or JPEG compressed stream at up to 1080p30, or two simultaneous streams at lower resolutions. JPEG capture is supported for resolutions up to 4192 x 3104.
Advanced features such as autofocus, auto white balance, image stabilization, and ultra-tough packaging make this device a perfect fit for a variety of applications. Model 3011 consumes less than 3 W from PoE (power over Ethernet) or an external 5 V power supply.
Compression
The camera performs efficient H.264 video compression (HP@L3) and outputs the compressed video in transport stream, elementary stream, RTMP, or RTSP formats. Two separate output streams — each with independently configurable resolution and bitrate — can be generated for some combinations of resolutions.
Real-Time Text Overlay
Built-in overlay generators allow up to 160 text characters to be positioned anywhere in the video frame. A unique text string, consisting of mixed constant and variable text, may be defined for each overlay generator. Text variables such as time, date, and frame count are automatically updated every video frame.
Web Interface
A built-in web server facilitates device configuration and control, user management, and live stream previewing using any web browser. Each output stream can be directed to a specific network address so that a remote computer can record it or display the live video with a player application such as VLC.
Packaging Options

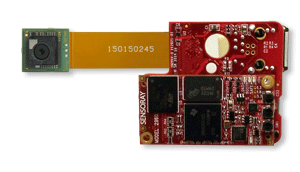

Model 3011NE is a bare-board version for OEM applications.
Specifications
| Specifications | |
|---|---|
| Image sensor | Progressive scan, CMOS, 4192 x 3104 (Sony FCB-MA130) |
| Focus range | 100 mm to infinity |
| Compression | H.264 High Profile at Level 3, JPEG |
| Compressed stream formats | MP4, AVI, transport stream |
| Text overlay | Programmable, up to 160 characters |
| Output Resolutions | 4192 x 3104 (JPEG only, 1 fps) 1920x1080, 30 fps 1280x720, 30 fps 640x480, 30 fps |
| Interface | Ethernet, 100BaseTX |
| Power options | POE, IEEE 802.3af compliant; +5 VDC |
| Power consumption | 2.5 W typical; 3 W maximum |
| Mechanical | 2.25 x 2.00 x 1.20 inch metal enclosure |
| Environmental | -5 to +50 °C operational temperature |
| GPIO | Opto-isolated, 1 in, 1 out |
| Weight (including POE supply) | 33 g without enclosure 87 g with enclosure |
Documentation
| File | Version | Date M-D-Y | Type | Size |
|---|---|---|---|---|
| Manuals | ||||
| 3011S Product Manual | 1.0.1 | 10-17-24 | 1.13 MB | |
