MPEG-1/2/4,JPEG frame grabber | Model 2250S

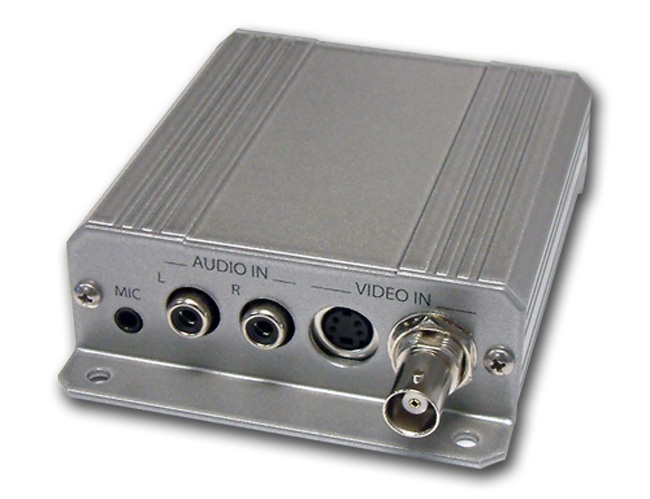

Model 2250 MPEG-1/2/4,JPEG frame grabber
  • MPEG1/2/4 & JPEG capture to USB from analog video at D1
  • 30 fps NTSC, 25 fps PAL
  • Synchronous audio capture from mic or stereo line inputs
  • Motion detection
  • Text overlay (OSD)
  • Powered from USB

Model 2250S is obsolete. This archived information is provided as a courtesy to customers who own model 2250S units.

Description

The Model 2250 USB frame grabber accepts an NTSC or PAL analog video source (composite or S-video) and converts it into one of the supported MPEG streams along with the optional audio (line or microphone). Frame grabbing in JPEG format is supported as well. A USB interface allows video capture at full resolution and frame rate. Flexible resolution and bitrate selections provide the optimal balance between quality and storage requirements for a wide range of applications.

The 2250 was designed primarily for OEMs who integrate it with their application software using the Software Development Kit (SDK) available for download under the "Downloads" tab. This product requires a knowledge of C-language or Visual Basic. It is not a consumer product intended for home use. The 2250 SDK does not support the development of applications natively in DirectShow. If this is required, Sensoray suggests evaluating our model 2253.

This product is also available in a small form factor. Please see our Model 2251 for details.

Motion Detection

The 2250 performs motion detection in three user programmable regions of interest. For each separate region of interest, the user can set up different motion detection sensitivity. Within the regions of interest motion can be further localized to a 16x16 pixel block. Please see images under images and mechanical drawings.

Software

The 2250 was designed primarily for OEMs who integrate it with their application software using the Software Development Kit (SDK) available for download under the downloads tab. The SDK supports simultaneous preview and recording, snapshot feature, OSD. A fully functional demo application (with the source code) illustrates the use of the SDK. A JPEG capture demo application illustrates the simple frame grabbing function.

Currently, the 2250 driver does not support seamless integration with any 3rd party applications (such as Video LAN, or Windows Media Encoder). The functions of the 2250 without software development are limited to those of the demo applications in the SDK. This product requires a knowledge of C-language or Visual Basic. It is not a consumer product intended for home use.

Software Interface


The SDK includes three demo applications provided with the source code:

App 2250 demo, an MFC application, that allows:

  • Video stream preview in the window

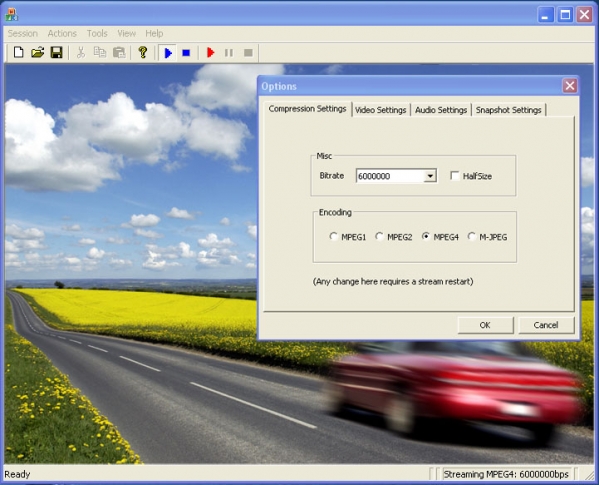

  • Modification of compression, audio and video setting
  • Recording the stream to the hard drive

MotionJPEG Demo, a simple console application, records a given number of JPEG frames to the hard drive without display.

Visual Basic Demo, a Visual Basic 6.0 demonstration program, is available for downloading. It shows how to communicate with the 2250 but it does not implement every function.

Motion Detection

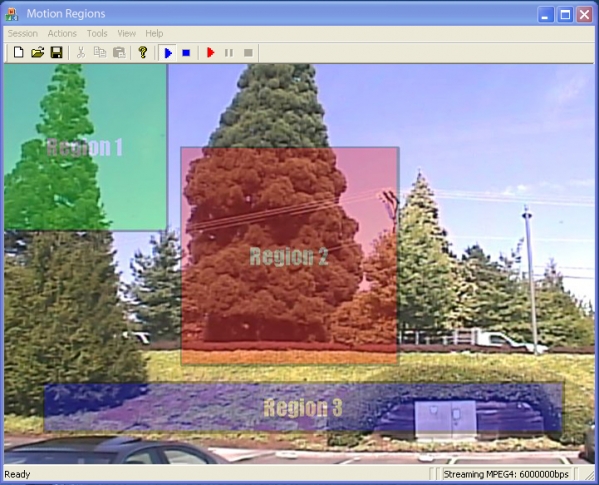

Motion Regions

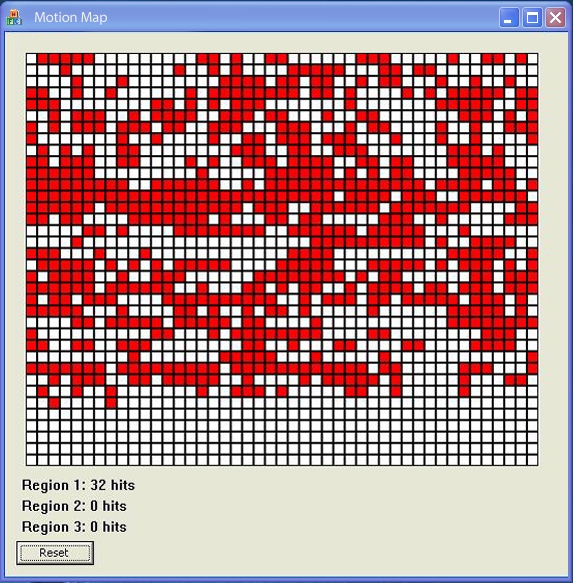

Motion Map


Specifications

Inputs Video: composite (BNC) or S-video (DIN), 75 Ω
Audio: line in stereo (2xRCA) or microphone mono (3.5 mm 3-position jack), 10 kΩ
Input Video Formats NTSC (M), PAL (BDGHIMN)
Output Video Formats MPEG-1, MPEG-2 (MP@ML), MPEG-4 (SP@L3 + B-frame support)
Output Resolution 320x240, 720x480 (NTSC, 30 frames/sec)
320x288, 720x576 (PAL, 25 frames/sec)
Bitrates Constant and variable, up to 6 Mbs
OSD 96 characters, 16x16 pixel font
Snapshot JPG and BMP formats, concurrent with preview/capture
USB Current Draw 470 mA
Host Communication USB 1.1 or 2.0

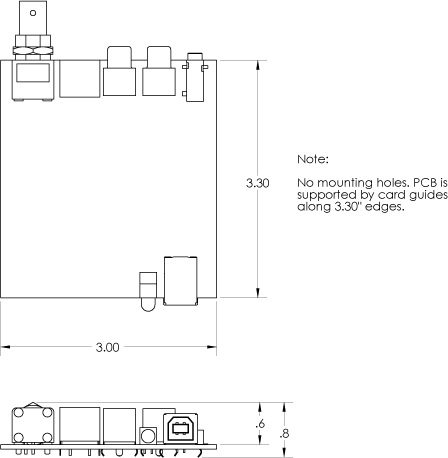

2250 Dimensions (without enclosure)

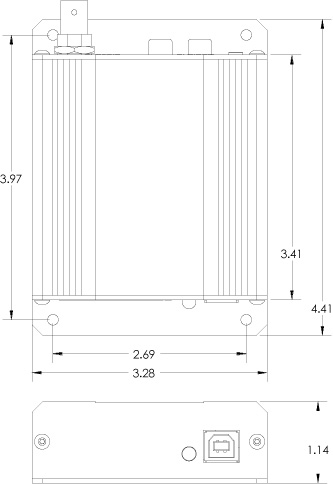

2250S Dimensions (with enclosure)


Documentation

FileVersionDate M-D-YTypeSize
Model 2250 Hardware Manual1.0.010-17-24PDF74 KB
Model 2250 Software Manual1.0.010-17-24PDF1.08 MB
Model 2250 Linux Software Manual (Part 1: Standard V4L2 API)2.0.010-17-24PDF212 KB
Model 2250 Linux Software Manual (Part 2: Legacy functions)2.0.010-17-24PDF246 KB

Downloads

FileVersionDate M-D-YTypeSize
Model 2250/2251 Windows SDK1.1.2110-17-24ZIP24.93 MB
Model 2250/2251 Linux SDK
Note: Linux kernels more recent than 2011 are not supported. Recommend using Model 2253.
2.1.210-17-24GZ126 KB
Other Operating Systems
Need a software development kit for another operating system? We can port our SDK to your OS
for a NRE fee or, with a volume commitment, at no additional cost. Contact Sales for details.
