Audio/video HD H.264 encoder | Model 2263
- HD/SD video capture from DVI, component, composite sources
- Low latency uncompressed preview on host
- Video compression: H.264 HP@L3, MJPEG
- Audio compression: AAC
- USB bus powered
- UVC compliant
- SDK for Windows, Linux, and OS X
- Unicode text and graphic overlay
Description
Model 2263 is a versatile USB audio/video encoder that supports a variety of analog and digital input formats. It captures HD or SD video and simultaneously sends both a compressed and an uncompressed (preview) stream to the host. Supported video inputs include DVI, component (with a component-to-DVI-I adapter, not included) and composite. If desired, audio can be captured from the analog line input, compressed, and multiplexed into a transport stream along with compressed video.
The unit is a UVC (USB Video Class) device, which means it does not require a device-specific driver and can be easily controlled using popular video APIs such as DirectShow and Video4Linux. Sensoray provides Software Development Kits (SDKs) for several operating systems to accelerate application development. Our fully functional demo program illustrates model 2263's capabilities and serves as an excellent starting point for custom designs.

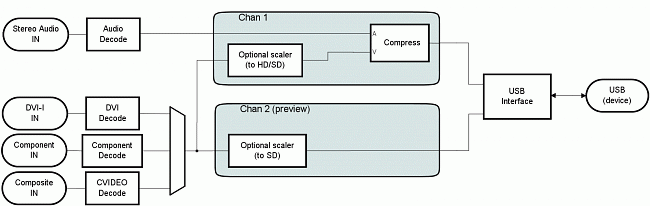

2263 block diagram
Stream Formats
This device implements efficient H.264 video compression, producing output data formatted as either MPEG transport stream (MPEG-TS) or in MP4 or AVI file formats. Audio compression is performed using AAC-LC. The stream multiplexer employs high precision hardware timestamps, thereby ensuring perfect audio-video sync on players. Snapshot capturing is also supported, with MJPEG compression available for both snapshots and AVI streams.
Packaging Options
Model 2263 is available in two configurations:
- 2263S – in a rugged metal enclosure
- 2263 – board-only

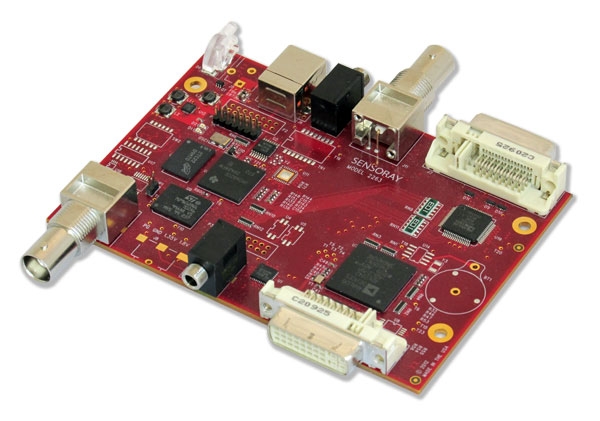

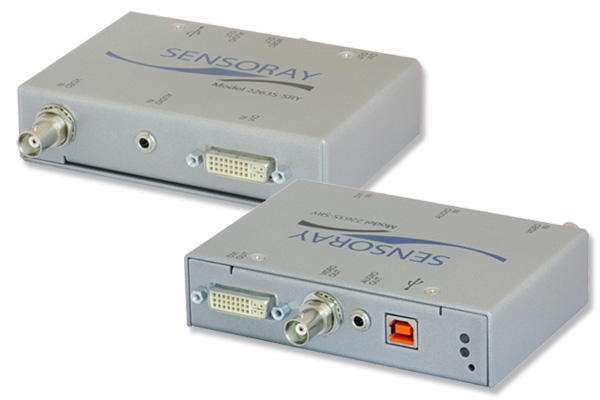

Model 2263S with enclosure (left) and Model 2263 board only (right)
Specifications
| Inputs | |
|---|---|
| Video, analog | Composite (RCA connector, 75 Ω), NTSC/PAL; Component (DVI connector, with adapter, 75 Ω). |
| Video, digital | DVI (DVI-I connector) and VGA. Supported resolutions: 720x480i60, 720x576i50, 1280x720p30, 1280x720p25, 1280x720p60, 1280x720p50 1920x1080i60, 1920x1080i50, 1920x1080p30, 1920x1080p25, 1920x1080p24 1920x1200p30, 1920x1080p30, 1680x1050p30, 1600x1200p30, 1600x900p30, 1440x900p30, 1360x768p30, 1280x1024p60, 1280x960p60, 1280x800p60, 1280x768p60, 1280x720p60, 1152x864p60, 1152x648p60, 1024x768p85, 800x600p85 |
| Audio, analog | Stereo line in, 2xRCA jacks, 10 kΩ |
| Video compression | |
| H.264 | HP@L3 (MP4, AVI, transport stream) |
| MJPEG | Single snapshots, AVI |
| Audio compression | |
| AAC-LC | 16 bits/sample; 32 kHz, 44.1 kHz, 48 kHz sample rates |
| Electrical | |
| Host Interface | USB 2.0 High-speed |
| Power | Bus powered (requires a Y-cable), 2.75 W max |
| Mechanical and Environmental | |
| Dimensions | 4.75 x 3.25 x 1.125 inch (enclosure); 4.75 x 4.75 x 1.125 inch (including connectors) 4.45 x 4.75 x 0.80 inch (PCB, including connectors). |
| Mass | Board – 90 g; In enclosure – 190 g. |
| Operating temperature | 0 to 70° C |
Documentation
| File | Version | Date M-D-Y | Type | Size |
|---|---|---|---|---|
| Manuals | ||||
| 2263 Hardware Manual | 1.0.1 | 10-17-24 | 560 KB | |
| 2263 Software Manual | 1.1.30 | 12-04-24 | 805 KB | |
Downloads
| File | Version | Date M-D-Y | Type | Size |
|---|---|---|---|---|
| 2263 Linux Software Development Kit | 1.1.31 | 12-16-24 | BZ2 | 6.91 MB |
| 2263 Windows Software Development Kit | 1.1.30 | 12-04-24 | ZIP | 31.85 MB |
| 2263 Firmware | 4106.0.0 | 12-04-24 | ZIP | 6.43 MB |
| Other Operating Systems | ||||
| Need a software development kit for another operating system? We can port our SDK to your OS for a NRE fee or, with a volume commitment, at no additional cost. Contact Sales for details. | ||||
