HD IP video server, SDI or DVI compatible | Model 2464
- Two independent output streams from one video input
- H.264 HP@L3, MJPEG video compression
- Supports MPEG-TS, H.264 VES, MJPEG over HTTP
- Streams via HTTP, RTP, RTSP, UDP
- AAC-LC audio (with optional 3364TA board)
- General-purpose RS-232 port
Description
Model 2464 is a compact IP video server that captures, compresses and streams HD video and audio over Ethernet. It can simultaneously produce two output streams (one HD and one SD) with independent resolutions, frame rates, and bit rates, allowing it to be easily tailored to match network capabilities. Real-time text overlay is supported along with popular video processing functions such as interpolation for motion artifact removal, image mirroring and rotation (180°), and frame decimation. Either output stream can be overlaid with additional text/graphics and output as video.
Two versions are available: SDI and DVI. The DVI version also captures VGA, component and composite sources (with appropriate adapters). Both versions include an RS-232 port that can be used for camera control or any other purpose.
Audio can be captured from a microphone or line source using a 3364TA accessory board (not included). Audio may be sent uncompressed, or compressed and multiplexed with compressed video into a transport stream, or both simultaneously.

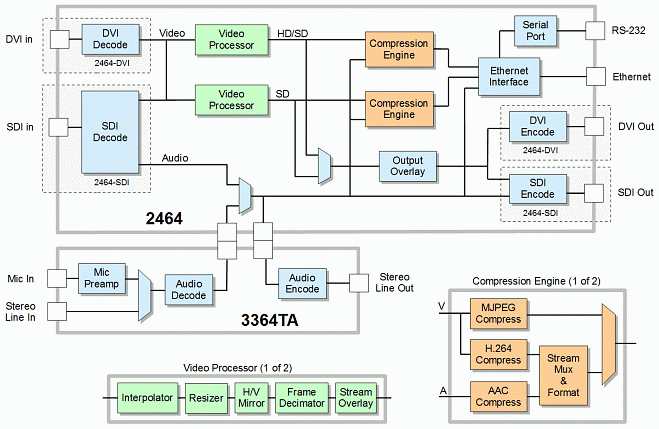

2464 block diagram
Stream formats
The video processor performs efficient H.264 video compression, producing output data formatted as either transport stream, elementary stream, or RTSP. Alternatively, MJPEG compression can be performed, which is especially useful for capturing high definition snapshots. Audio compression is performed using AAC-LC. The stream multiplexer employs high precision hardware timestamps to ensure perfect A/V sync on players.
Real-time text overlay
The text overlay generators can position up to 160 characters of monochrome text anywhere in the video frame. A unique text string, consisting of mixed constant and variable text, may be defined for each overlay generator. Text variables such as time, date, and frame count are automatically updated every video frame.
User interface
The built-in web server allows device configuration and control, user management, and live stream previewing on any web browser. In automated applications, these functions can be accessed from a remote client through custom software (e.g., Curl, Python, Selenium) or multimedia frameworks such as GStreamer.
Ordering information
Model 2464 is available as a bare board (2464-SDI and 2464-DVI) or as an enclosed unit (2464-SDIS and 2464-DVIS). Enclosed units combine a 2464 bare board and a 3364TA audio accessory board in a robust metal enclosure, thus providing built-in analog audio interfaces. Bare board versions do not include a 3364TA audio accessory board, so a 3364TA must be purchased separately if you require analog audio interfaces.

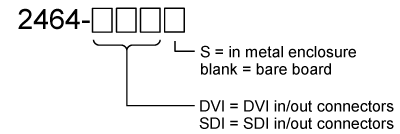

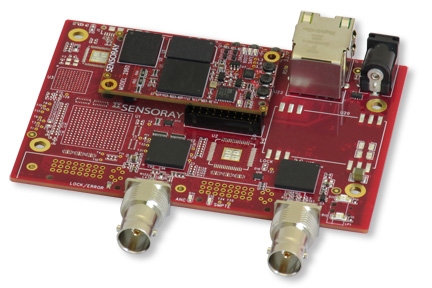

Model 2464-SDI
|

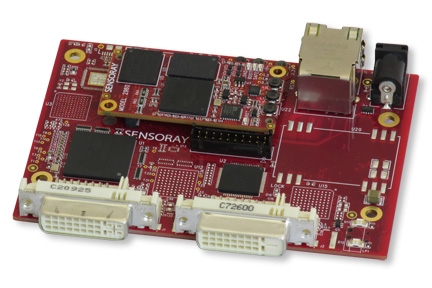

Model 2464-DVI
|
Part Number
Specifications
| Video & Audio | |
|---|---|
| HD-SDI version | 270 Mbps, 1.483 Gbps, 1.485 Gbps SMPTE 259M(C), SMPTE 292, SMPTE 424M 1920x1080p30 maximum |
| Video Input/Output, DVI option | |
| Input resolutions/frame rates (DVI, VGA, component, composite) |
720x480i60 720x576i50 1280x720 at p30, p25, p60, p50 1920x1080 at i60, i50, p60, p50, p30, p25, p24 1920x1200p25,p24 1680x1050p30 1600x1200p30, 1600x900p30 1440x900p30, 1360x768p30 1280x1024p60, 1280x960p60, 1280x800p60, 1280x768p60, 1280x720p60 1152x864p60, 1152x648p60 1024x768p85 800x600p85 |
| Output resolutions/frame rates (DVI) | 720x480p59.94 720x576p50 1280x720p30 1280x720p50 1280x720p60 1920x1080i50 1920x1080i60 1920x1080p24 1920x1080p25 1920x1080p30 |
| Audio input | Analog line stereo (requires an optional 3364TA board) |
| Video compression | H.264 (HP@L3), Motion JPEG |
| Audio compression | AAC-LC, 48 kHz, 32-512 kbps bitrate |
| Video streaming | Up to 2 video streams with individually configurable compression types, bitrates, resolutions and frame rates. One HD stream (up to 1280x720p60), one SD or lower resolution stream |
| Output stream formats | MPEG-TS, H.264 VES, MJPEG |
| Network | |
| Network security | Password protection, digest access authentication, user access log |
| Network protocols | HTTP, RTP, RTSP, UDP |
| Alarm triggers | Video loss |
| Alarm actions | e-mail notification, HTTP, FTP upload |
| Other | |
| Serial interface | RS-232 |
| Network interface | 10/100Base-T(X) |
| Power | 4 W, 5 V DC |
| Operating temperature | 0 to 70 °C |
| Non-operating temperature | -40 to 85 °C |
| Humidity | 5 to 95% RH, non-condensing |
| Dimensions | 3.9“ x 2.8“ (without enclosure) |
Documentation
| File | Version | Date M-D-Y | Type | Size |
|---|---|---|---|---|
| Technical manuals | ||||
| Hardware manual for models 2464 and 3364 | 1.1.0 | 10-17-24 | 1.66 MB | |
| Mechanical | ||||
| 3D model, 2464-DVI | — | 10-17-24 | STEP | 6.74 MB |
| 3D model, 2464-SDI | — | 10-17-24 | STEP | 6.55 MB |
Downloads
| File | Version | Date M-D-Y | Type | Size |
|---|---|---|---|---|
| Latest firmware | 1315.0.0 | 10-31-24 | ZIP | 6.22 MB |
| Other Operating Systems | ||||
| Need a software development kit for another operating system? We can port our SDK to your OS for a NRE fee or, with a volume commitment, at no additional cost. Contact Sales for details. | ||||
