This is the technical wiki page for Sensoray's model 826, a versatile analog and digital I/O system on a PCI Express board. The board has 48 digital I/Os with edge detection, sixteen 16-bit analog inputs, eight 16-bit analog outputs, six 32-bit counter channels, a watchdog timer with fail-safe controller, and a flexible signal router.

Contents

Counters

How to use interrupts

I see that counters have an "Interrupt System (IRQ)" signal but have no idea how to access it.

An interrupt request (IRQ) is generated when a counter event (e.g., Compare register match) is detected and stored in the counter's FIFO (i.e., when a "snapshot" is captured). This IRQ is managed by the blocking API function S826_CounterSnapshotRead, which enables/disables counter interrupts and handles IRQs as required so that software developers need not be concerned with the complexities of interrupt programming.

To wait for the next IRQ, simply call S826_CounterSnapshotRead. The function will return when an event is available, and will block and allow other threads to run while the event FIFO is empty. See the following sections for examples of how this works.

Canceling an interrupt wait

Sometimes it's necessary to force S826_CounterSnapshotRead to unblock and return before an IRQ occurs. The calling thread can do this itself by specifying a time limit for the block. But what if a different thread needs to force the unblock? For example, suppose threadA is blocked by S826_CounterSnapshotRead (because it's waiting for an IRQ) and threadB must force threadA to unblock. There are several ways for threadB to accomplish this:

  • Call S826_CounterWaitCancel. This will cause S826_CounterSnapshotRead to immediately return S826_ERR_CANCELLED to threadA.
  • Call S826_CounterSnapshot. Note that this doesn't actually cancel the block; instead it triggers a snapshot and generates an IRQ. This will cause S826_CounterSnapshotRead to immediately return S826_ERR_OK to threadA, with trigger flag S826_SSRMASK_SOFT set to indicate the snapshot was triggered by software.
  • Call S826_SystemClose. This will cause threadA (and all other threads blocked by the API) to immediately become unblocked; all blocking functions will return S826_ERR_SYSCLOSED.

Time delay

A counter can be used as a delay timer to cause a software task to be executed after a specific amount of time has elapsed. To implement this, preload the counter with the desired delay time and configure it to count down and capture a snapshot when it reaches zero counts.

The following function creates a delay timer that has 1 µs resolution (because it uses the 1 MHz internal clock). For higher resolution (20 ns), use the 50 MHz internal clock. Note that error checking has been simplified for clarity (it is recommended to always perform error checking in production software).

#include "826api.h"

// Create a delay timer and start it running.
int CreateDelay(uint board, uint ctr, uint delay)  // delay specified in microseconds
{
  // Configure the delay timer:
  S826_CounterModeWrite(board, ctr,                // Configure counter0 mode:
    S826_CM_K_1MHZ |                               //   clock source = 1 MHz internal
    S826_CM_UD_REVERSE |                           //   count down
    S826_CM_PX_START |                             //   preload when counter enabled
    S826_CM_TD_ZERO);                              //   stop counting when counts==0
  S826_CounterPreloadWrite(board, ctr, 0, delay);  // Delay time in microseconds.
  S826_CounterSnapshotConfigWrite(board, ctr,      // Configure snapshots:
      S826_SSRMASK_ZERO |                          //  capture snapshot when counts==0
      (S826_SSRMASK_ZERO << 16),                   //  disable snapshots when counts==0
      S826_BITWRITE);
  return S826_CounterStateWrite(board, ctr, 1);    // Start the timer running.
}

To wait for the delay timer's interrupt, call S826_CounterSnapshotRead() with a non-zero tmax (must be longer than the delay time). S826_CounterSnapshotRead() will return upon snapshot interrupt and you can then perform the desired task.

int WaitForDelay(uint board, uint ctr)
{
  return S826_CounterSnapshotRead(board, ctr,   // Block while waiting for timer:
    NULL, NULL, NULL,                           //  ignore snapshot counts, timestamp and reason
    S826_WAIT_INFINITE);                        //  never timeout
}

For example, the following code will delay for 0.5 seconds while other threads are allowed to run, using counter0 on board number 0:

CreateDelay(0, 0, 500000);           // Create 0.5 second delay timer and start it running.
WaitForDelay(0, 0);                  // Wait for delay time to elapse.
printf("Delay time has elapsed!");   // Perform the delayed task.

In the above example, the calling thread simply waits for WaitForDelay to return. If desired, it can do some work while the delay timer is running:

CreateDelay(0, 0, 500000);           // Create 0.5 second delay timer and start it running.
                                     // If desired, do some work here while timer runs.
WaitForDelay(0, 0);                  // Wait for delay time to elapse.
printf("Delay time has elapsed!");   // Perform the delayed task.

Periodic timer

A counter can be used as a periodic timer, which is useful for periodically executing software or triggering ADC conversions. To implement this, configure the counter so that it repeatedly counts down to zero and then preloads (see examples below). The preload value and clock frequency determine the period. The following functions create a timer having 1 µs resolution because they use the 1 MHz internal clock; for higher resolution (20 ns), use the 50 MHz internal clock.

Hardware timer

The following function will cause a counter to periodically pulse its ExtOut output. The pulses can be internally routed to the ADC and used to trigger conversion bursts as shown in this example. If desired, ExtOut may be routed to a DIO for external use, but note that the output pulses are always 20 ns wide regardless of the input clock frequency (for longer pulses, use a PWM generator).

// Configure a counter as a 20 ns pulse generator and start it running.
int CreateHwTimer(uint board, uint chan, uint period) // period in microseconds
{
  S826_CounterModeWrite(board, chan,                // Configure counter mode:
    S826_CM_K_1MHZ |                                //   clock source = 1 MHz internal
    S826_CM_PX_START | S826_CM_PX_ZERO |            //   preload @start and counts==0
    S826_CM_UD_REVERSE |                            //   count down
    S826_CM_OM_NOTZERO);                            //   ExtOut = (counts!=0)
  S826_CounterPreloadWrite(board, chan, 0, period); // Set period in microseconds.
  return S826_CounterStateWrite(board, chan, 1);    // Start the timer running.
}

Software timer

This function will configure a counter to capture snapshots at regular intervals and start it running:

// Configure a counter as a periodic software timer and start it running.
int CreateTimer(uint board, uint chan, uint period)   // period in microseconds
{
  S826_CounterModeWrite(board, chan,                // Configure counter mode:
    S826_CM_K_1MHZ |                                //   clock source = 1 MHz internal
    S826_CM_PX_START | S826_CM_PX_ZERO |            //   preload @start and counts==0
    S826_CM_UD_REVERSE);                            //   count down
  S826_CounterPreloadWrite(board, chan, 0, period); // Set period in microseconds.
  S826_CounterSnapshotConfigWrite(board, chan,      // Generate IRQ when counts==0.
      S826_SSRMASK_ZERO, S826_BITWRITE);
  return S826_CounterStateWrite(board, chan, 1);    // Start the timer running.
}

While the timer is running, a thread can call the following function to wait for the next snapshot. Other threads are allowed to run while the calling thread waits for S826_CounterSnapshotRead(), resulting in efficient, event-driven operation.

// Wait for the next timer period. Returns 0=ok, else=826 error code.
int WaitForTimer(uint board, uint chan)
{
  return S826_CounterSnapshotRead(board, chan,      // Block until next period.
      NULL, NULL, NULL,  // ignore snapshot values
      S826_WAIT_INFINITE);
}

Call a function periodically

How can I use a counter to periodically call a function?

First, create a timer as shown above. For example, the following code creates a 10 millisecond timer using counter0:

CreateTimer(0, 0, 10000);   // Create 10 ms (10000 us) timer and start it running.

Now run the following loop. Note that other threads can run while this thread is waiting for the next timer period.

// Repeat while no errors detected:
while (!WaitForTimer(0, 0)) {        // Block until next timer period.
  PeriodicFunction();                // Execute the periodic function.
}

Alternatively, if you need to perform other processing while waiting for the next period and cannot use another thread to do so, you can poll the counter by calling S826_CounterSnapshotRead() with a zero (or other finite) wait time:

while (1) { // Repeat forever:
  uint errcode = S826_CounterSnapshotRead( // Poll to see if period has elapsed (don't block).
      0, 0, NULL, NULL, NULL, 0);
  if (errcode == S826_ERR_OK)              // If it's a new period
    PeriodicFunction();                    //  execute the periodic function.
  else if (errcode != S826_ERR_NOTREADY)   // Else if fatal error detected
    break;                                 //  exit the polling loop.
  else                                     // Else
    DoSomeOtherStuff();                    //  do other processing.
}

Frequency counter

The frequency of an external digital signal can be precisely measured using just one counter channel. To do this, connect the external digital signal to the ClkA+ input and route one of the internal tick generator signals to the Index input. The selected tick signal is used as a counting gate and it also determines the sampling rate and measurement resolution. The sampling rate is equal to the tick frequency, whereas resolution is inversely proportional to the tick frequency.

The following function shows how to configure a counter for frequency measurement.

// Configure a frequency counter and start it running.
int CreateFrequencyCounter(uint board, uint chan, uint ticksel)
{
  if ((ticksel < S826_CM_XS_R1HZ) || (ticksel > S826_CM_XS_1MHZ))
    return S826_ERR_S826_ERR_VALUE;               // Abort if invalid tick selector.
  S826_CounterModeWrite(board, chan,              // Configure counter:
    S826_CM_K_ARISE |                             //   clock = ClkA (external digital signal)
    ticksel |                                     //   route tick generator to Index input
    S826_CM_PX_IXRISE);                           //   preload upon tick rising edge
  S826_CounterPreloadWrite(board, chan, 0, 0);    // Reset counts upon tick rising edge.
  S826_CounterSnapshotConfigWrite(board, chan,    // Acquire counts upon tick rising edge.
      S826_SSRMASK_IXRISE, S826_BITWRITE);
  return S826_CounterStateWrite(board, chan, 1);  // Start the frequency counter running.
}

While the frequency counter is running, a thread can call the following function to wait for the next sample. Other threads are allowed to run while it waits for the next sample to arrive.

// Receive the next frequency sample.
int ReadFrequency(uint board, uint chan, uint *sample)
{
  return S826_CounterSnapshotRead(board, chan,      // Block until next sample
      sample, NULL, NULL,                           //   and then receive accumulated counts.
      S826_WAIT_INFINITE);
}

For example, the following code will measure frequency 10 times per second using counter0 on board 0. Note that the first sample is discarded as it may not be valid.

// Measure frequency 10 times per second.
uint counts;
CreateFrequencyCounter(0, 0, S826_CM_XS_10HZ);  // Create frequency counter and start it running.
ReadFrequency(0, 0, NULL);                      // Discard first sample.
while (!ReadFrequency(0, 0, &counts)) {         // Wait for next sample; if no errors then
  printf("Frequency = %d Hz\n", counts * 10);   //   display measured frequency.
}

Routing a counter output to DIO pins

The following function will route a counter's ExtOut signal to a DIO pin, which is useful when a physical output is needed (e.g., PWMs, one-shots).

int RouteCounterOutput(uint board, uint ctr, uint dio)
{
  uint data[2];      // dio routing mask
  if ((dio >= S826_NUM_DIO) || (ctr >= S826_NUM_COUNT))
    return S826_ERR_VALUE;  // bad channel number
  if ((dio & 7) != ctr)
    return S826_ERR_VALUE;  // counter output can't be routed to dio

  // Route counter output to DIO pin:
  S826_SafeWrenWrite(board, S826_SAFEN_SWE);        // Enable writes to DIO signal router.
  S826_DioOutputSourceRead(board, data);            // Route counter output to DIO
  data[dio > 23] |= (1 << (dio % 24));              //   without altering other routes.
  S826_DioOutputSourceWrite(board, data);
  return S826_SafeWrenWrite(board, S826_SAFEN_SWD); // Disable writes to DIO signal router.
}

Each DIO is associated with a specific counter and can only be routed to that counter's ExtOut (see S826_DioOutputSourceWrite documentation for details). For example, counter3 can be routed to dio 3, 11, 19, 27, 35 or 43, or to any combination of these. This example shows how to route counter3's ExtOut signal to both dio3 and dio11:

RouteCounterOutput(0, 3, 3);   // On board number 0, route counter3's ExtOut signal to dio3
RouteCounterOutput(0, 3, 11);  //   and also to dio11.

RouteCounterOutput is not thread-safe because it uses an unprotected read-modify-write (RMW) sequence to access and configure the DIO signal router. If multiple threads will be calling this function then a mutex should be used to ensure thread safety.

One-shot

A counter can be used to implement a "one-shot" that outputs a pulse when triggered. The trigger can be an external signal (applied to the counter's IX input) or another counter's ExtOut signal. The one-shot can also be triggered by software by invoking a counter preload. The output pulse appears on the counter's ExtOut signal, which can be routed to a DIO pin and/or another counter's Index input, if desired. The following function will configure a counter as a one-shot, with pulse width (ontime) specified in microseconds.

// Configure a counter as as a one-shot -----------
// trig specifies the trigger source: 0 = external (IX input); 2-7 = counter[trig-2] ExtOut.
int CreateOneShot(uint board, uint ctr, uint trig, uint ontime)
{
  S826_CounterModeWrite(board, ctr,                // Configure counter:
    S826_CM_K_1MHZ |                               //   clock = internal 1 MHz
    S826_CM_UD_REVERSE |                           //   count down
    trig |                                         //   route trig to Index input
    S826_CM_PX_IXRISE |                            //   preload @ trig rising edge
    S826_CM_TE_PRELOAD |                           //   enable upon preload
    S826_CM_TD_ZERO |                              //   disable when counts reach 0
    S826_CM_OM_NOTZERO);                           //   ExtOut = (counts!=0)
  S826_CounterPreloadWrite(board, ctr, 0, ontime); // Pulse width in microseconds.
  return S826_CounterStateWrite(board, ctr, 1);    // Enable the 1-shot.
}

The above function can be used to implement a retriggerable or non-retriggerable one-shot. These examples show how to create a 700 µs externally-triggered one shot using counter0, with output on dio0:

// Implement a retriggerable one-shot.
RouteCounterOutput(0, 0, 0); // Route one-shot (counter0) output to dio0.
CreateOneShot(0, 0, 0, 700); // Create 700 us retriggerable one-shot.
// Implement a non-retriggerable one-shot.
RouteCounterOutput(0, 0, 0); // Route one-shot (counter0) output to dio0.
CreateOneShot(0, 0,          // Create 700 us non-retriggerable one-shot.
  S826_CM_NR_NORETRIG,
  700);

Jamming counts into a counter

In some situations an application may need to programmatically load a particular counts value in a counter. This is done by writing the value to the counter's preload0 register and then invoking a soft counter preload, as shown below:

// Jam a value into a counter.
void JamCounts(uint board, uint ctr, uint value)
{
  S826_CounterPreloadWrite(board, ctr, 0, value);   // Write value to preload0 register.
  S826_CounterPreload(board, ctr, 1, 0);            // Copy preload0 to counter.
}

JamCounts(0, 3, 1234);  // Example usage: Jam 1234 into counter3 of board0.

Period measurement

A counter can be used to measure the period of a digital signal applied to its IX+ input. It does this by counting internal clocks during one complete cycle of the input signal. At the end of each cycle, the accumulated counts are captured in a snapshot and the counter is zeroed to start the next measurement. Since a new measurement begins at the end of each input cycle, the sampling rate will equal the signal's input frequency.

The signal's period is indicated by the snapshot counts, so a higher clock frequency will result in a greater number of counts and higher resolution. In the example functions below, set hires=0 to select the 1 MHz internal clock (provides 1 µs resolution for periods up to approximately 71.6 minutes) or set hires=1 to select the 50 MHz internal clock (provides 20 ns resolution for periods up to approximately 1.43 minutes).

// Create a period counter and start it running.
int CreatePeriodCounter(uint board, uint ctr, int hires)
{
  S826_CounterModeWrite(board, ctr,             // Configure the period counter:
    (hires ?                                    //   select internal clock based on resolution:
      S826_CM_K_50MHZ :                         //     for high res (20 ns) use 50 MHz
      S826_CM_K_1MHZ) |                         //     for low res (1 us) use 1 MHz
    S826_CM_UD_NORMAL |                         //   count up
    S826_CM_XS_EXTNORMAL |                      //   connect index input to IX (external signal)
    S826_CM_PX_IXRISE);                         //   preload upon signal rising edge

  S826_CounterPreloadWrite(board, ctr, 0, 0);   // Preload 0 at start of each cycle.
  S826_CounterSnapshotConfigWrite(board, ctr,   // Snapshot upon signal rising edge.
    S826_SSRMASK_IXRISE, S826_BITWRITE);
  return S826_CounterStateWrite(board, ctr, 1); // Enable period measurement.
}
// Read measured period in seconds.
int ReadPeriod(uint board, uint ctr, double *period, int hires)
{
  uint counts;
  int errcode = S826_CounterSnapshotRead(board, ctr,  // Block until next sample available.
     &counts, NULL, NULL, S826_WAIT_INFINITE);
  *period = counts * (hires ? 2e-8 : 1e-6);
  return errcode;
}
// Example: Measure period of external digital signal.
double period;     // period in seconds
int hires = TRUE;
CreatePeriodCounter(0, 0, hires);     // Create high-resolution (20 ns) period counter.
ReadPeriod(0, 0, &period, hires);     // Discard the first sample (may not be a complete cycle).
ReadPeriod(0, 0, &period, hires);
printf("Signal period (in seconds) = %f", period);

Incremental encoders

An incremental encoder

Programming fundamentals

Which functions should I use for incremental encoders?

The flexible counter architecture allows for many options, but basic operation works as follows:

First configure and enable the counter channel:
#include "826api.h"

S826_CounterModeWrite(0, 0, S826_CM_K_QUADX4);  // Configure counter0 as incremental encoder interface.
S826_CounterStateWrite(0, 0, 1);                // Start tracking encoder position.

To read the instantaneous encoder position without invoking a snapshot:

uint counts;
S826_CounterRead(0, 0, &counts);          // Read current encoder counts.
printf("Encoder counts = %d\n", counts);  // Display encoder counts.

When reading instantaneous counts you may need to know when the counts were sampled. You could rely on your software and operating system to sample the counts at precise times, but there's an easier and more accurate way: trigger a snapshot (via software) and then read the counts and sample time — accurate to within 1 µs:

uint counts;      // encoder counts when the snapshot was captured
uint timestamp;   // time the snapshot was captured

S826_CounterSnapshot(0, 0);               // Trigger snapshot on counter 0.
S826_CounterSnapshotRead(0, 0,            // Read the snapshot:
    &counts, &timestamp, NULL,            //  receive the snapshot info here
    0);                                   //  no need to wait for snapshot; it's already been captured
printf("Counts = %d at time = %d\n", counts, timestamp);

For example, two snapshots allow you to measure speed:

uint counts0, counts1;      // encoder counts when snapshot was captured
uint tstamp0, tstamp1;      // timestamp when snapshot was captured

S826_CounterSnapshot(0, 0);               // Trigger first snapshot.

// TODO: WAIT AWHILE TO ALLOW ENCODER TO MOVE

S826_CounterSnapshot(0, 0);               // Trigger second snapshot.
S826_CounterSnapshotRead(0, 0,            // Read the first snapshot:
    &counts0, &tstamp0, NULL,             //  receive the snapshot info here
    0);                                   //  no need to wait for snapshot; it's already been captured
S826_CounterSnapshotRead(0, 0,            // Read the second snapshot:
    &counts1, &tstamp1, NULL,             //  receive the snapshot info here
    0);

printf("Speed (counts/second) = %d\n", 1000000 * (counts1 - counts0) / (tstamp1 / tstamp0));

Encoder counts can be changed to an arbitrary value at any time. This is typically done when the encoder is at a known reference position (e.g., at startup or whenever mechanical registration is required), but not at other times as it would disrupt position tracking.

JamCounts(0, 0, 12345);       // Force encoder counts (counter0) to 12345.

Using interrupts with encoders

This code snippet employs hardware interrupts to block the calling thread until the encoder counts equals a particular value. Other threads are allowed to run while the calling thread waits for the counter to reach the target value. A snapshot is captured when the target count is reached. The snapshot generates an interrupt request, which in turn causes S826_CounterSnapshotRead() to return. The example ignores the snapshot counts (which will always equal the target value as explained here), the timestamp, and the reason code (which will always indicate a Match0 event).

// Wait for counts to reach 5000. Allow other threads to run while waiting.

S826_CounterCompareWrite(0, 0, 0,         // Set Compare0 register to target value:
    5000);                                //  5000 counts (for this example)
S826_CounterSnapshotConfigWrite(0, 0,     // Enable snapshots:
    S826_SSRMASK_MATCH0,                  //  when counts==Compare0
    S826_BITWRITE);                       //  disable all other snapshot triggers
S826_CounterSnapshotRead(0, 0,            // Wait for counter to reach target counts:
    NULL, NULL, NULL,                     //  ignore snapshot counts, timestamp and reason
    S826_WAIT_INFINITE);                  //  disable function timeout
printf("Counter reached target counts");

In some cases you may want to wait for two different count values at the same time. The following example shows how to wait for the encoder counts to reach an upper or lower threshold (whichever occurs first). Furthermore, it will only wait for a limited amount of time. To set this up, the threshold values are programmed into Compare registers and then snapshots are enabled for matches to both Compare registers. To set a limit on how long to wait, a time limit value is specified by tmax when calling S826_CounterSnapshotRead.

Since snapshots can now be caused by different events, it's necessary to know what triggered a snapshot in order to decide how to handle it; this is indicated by the snapshot's reason flags. Alternatively, you could use the snapshot counts value, which will always equal the threshold value that triggered the snapshot.

// Wait for counts to reach 3000 or 4000, or for 10 seconds to elapse, whichever comes first.

uint counts;      // encoder counts when the snapshot was captured
uint timestamp;   // time the snapshot was captured
uint reason;      // event(s) that caused the snapshot
uint errcode;     // API error code

S826_CounterCompareWrite(0, 0, 0, 3000);  // Set Compare0 register to low limit (3000 counts)
S826_CounterCompareWrite(0, 0, 1, 4000);  // Set Compare1 register to high limit (4000 counts)
S826_CounterSnapshotConfigWrite(0, 0,     // Enable snapshots:
    S826_SSRMASK_MATCH0                   //  when counts==low limit
    | S826_SSRMASK_MATCH1,                //  or when counts==high limit
    S826_BITWRITE);                       //  disable all other snapshot triggers
errcode = S826_CounterSnapshotRead(0, 0,  // Wait for a snapshot:
    &counts, &timestamp, &reason,         //  receive the snapshot info here
    10000000);                            //  timeout if wait exceeds 10 seconds (10000000 us)

switch (errcode) {                        // Decode and handle the snapshot:
  case S826_ERR_NOTREADY:                 //  snapshot not available (wait timed out), so
    S826_CounterRead(0, 0, &counts);      //   read counts manually
    printf("Timeout -- counter didn't hit limits within 10 seconds; current counts = %d", counts);
    break;
  case S826_ERR_OK:
    if (reason & S826_SSRMASK_MATCH0)
      printf("Counter reached upper threshold at timestamp %d", timestamp);
    if (reason & S826_SSRMASK_MATCH1)
      printf("Counter reached lower threshold at timestamp %d", timestamp);
    break;
  default:
    printf("Error detected: errcode=%d", errcode);
}

Measuring speed

Speed measurement depends on the ability to sample displacement (distance traveled) at known times. Counter snapshots are ideally suited for this task because they include both displacement and time information. To set this up, configure the counter to track the encoder position and arrange for it to periodically capture snapshots. Each time a new snapshot arrives, the count/timestamp pairs from the new and previous snapshots can be used to precisely compute speed.

An easy way to do this is to select the internal tick generator as the IX signal source, and configure the counter to capture snapshots on IX rising edges. The following code shows how to do this:

// Measure and display speed 10 times per second ---------------

#define DISP_PER_CNT 0.005  // Displacement per encoder count (e.g., 0.005 meters)

uint tstamp[2];       // Previous and current timestamps.
uint counts[2];       // Previous and current encoder counts.
double cnts_per_us;   // Encoder counts per microsecond.
double speed;         // Speed in user units (e.g., meters/second).

// Configure counter0 as encoder interface; automatically snapshot every 0.1 seconds.
S826_CounterModeWrite(0, 0,  // Configure counter mode:
  S826_CM_K_QUADX4 |         //   clock source = external quadrature x4
  S826_CM_XS_10HZ);          //   route internal 10 Hz clock to IX
S826_CounterSnapshotConfigWrite(0, 0, 0x10, 0); // Enable snapshots upon IX^.
S826_CounterStateWrite(0, 0, 1);                // Start tracking encoder position.

// Wait for first snapshot (captures starting displacement).
S826_CounterSnapshotRead(0, 0, counts, tstamp, NULL, S826_WAIT_INFINITE);

while (1) {  // Repeat every 0.1 seconds:
  // Wait for next displacement snapshot, then compute and display speed.
  S826_CounterSnapshotRead(0, 0, &counts[1], &tstamp[1], NULL, S826_WAIT_INFINITE);
  cnts_per_us = (double)(counts[1] - counts[0]) / (tstamp[1] - tstamp[0]);
  speed = DISP_PER_CNT * 1000000 * cnts_per_us;  // convert to meters/second
  printf("%f\n", speed);
  counts[0] = counts[1];   // Prepare for next snapshot.
  tstamp[0] = tstamp[1];
}

If IX is already being used, create a thread that executes approximately 10 times per second. Each time the thread runs, have it call S826_CounterSnapshot to trigger a soft snapshot. In this case the sample rate will not be exactly 10 Hz, but speed will still be measured precisely.

Precise homing

To achieve high-accuracy homing, it is necessary to sample the counts without delay when a pulse is issued by the home position sensor. The delay time becomes increasingly important as traversal speed increases, and is critically important in high-performance systems that seek home at high speeds. Consequently, the hardware must acquire the counts directly without any software involvement.

The following example shows how to precisely determine the home position at any traversal speed. It does this by configuring the hardware to sample the counts within 20 ns of the homing pulse's leading edge. The sensor is connected to the counter's IX+ terminal, which is internally routed to the counter's index input. The counter is effectively "armed" to enable sampling upon the sensor's next rising edge. When the edge is detected, the counter will be "disarmed" automatically so that subsequent rising edges won't cause sampling.

First configure the counter:

uint offset;   // exact counts at home position

S826_CounterSnapshotConfigWrite(0, 0,  // Set up snapshot triggering for counter0 (on board0):
  S826_SS_FIRST_IXRISE,                //   arm for snapshot upon first IX rising edge (auto-disarm)
  S826_BITSET);                        //   leave other triggering rules intact

The program can either block or poll while waiting for the homing pulse. When blocking is used, other threads are allowed to run while the hardware waits for the pulse:

S826_CounterSnapshotRead(0, 0,         // Block while waiting for IX rising edge.
  &offset,                             //   store exact home position counts here
  NULL, NULL, S826_INFINITE_WAIT);

Alternatively, the program can poll while waiting for the homing pulse:

while (S826_CounterSnapshotRead(0, 0, &offset, NULL, NULL, 0) == S826_ERR_NOTREADY) {
  // do other things while waiting for IX rising edge
}

After the homing pulse has been detected, the exact counts corresponding to the pulse's leading edge will be stored in offset.

Resetting the counter

If desired, the captured homing counts value can be immediately used to correct all subsequent position samples. Note that this does not reset the hardware counts; it performs a software correction by subtracting the homing offset counts:

uint curposn;
S826_CounterRead(0, 0, &curposn);    // Get current position.
uint position = curposn - offset;    // Compute corrected position.

The counts value can be used this way even if the encoder is still moving. However, it may be necessary to defer such usage to avoid motion control disruption, as explained below.

Avoiding PID loop disruption

Often it's desirable to zero the encoder counts at the precise moment an index signal is detected, but it's impractical to do so because the sudden counts change would disrupt PID loop control. To solve this problem, use the above code to configure the counter to capture — but not reset — the counts when the index signal is detected, and to notify the application that the index event occurred. Later, when the encoder is stationary and the loop controller is inactive, use the captured counts to "reset" the counter.

This can be done as shown above, but since the encoder has stopped it is now possible to safely perform a read-modify-write to the counts so that subsequent software corrections will not be necessary:

uint curposn;
S826_CounterRead(0, 0, &curposn);       // Sample current position.
void JamCounts(0, 0, curposn - offset); // Correct current position and jam it into counter.

Now the application can simply read the corrected counts directly from the counter.

Output pulse at specific position

A counter can output a pulse on a DIO when the counts reach a particular value. The pulse duration will be 20 ns regardless of how long the counts remain at the target value. Consequently, an external pull-up must be added to the DIO to speed up its rising edge (see Using external pull-up resistors for details) and thereby ensure proper pulse formation.

The following code will generate a 20 ns output pulse when the counts reach 5000, using counter0 and dio0 on board number 0. A snapshot is captured when the pulse is issued; this is required to produce the pulse but the snapshot data is not used in this example.

// Output a 20 nanosecond pulse when counts reach 5000 ----------

// Configure counter0 as encoder interface; output 20ns pulse when counts reach 5000.
S826_CounterModeWrite(0, 0,                  // Configure counter mode:
  S826_CM_K_QUADX4 |                         //   clock = external quadrature x4
  S826_CM_OM_MATCH);                         //   pulse ExtOut upon snapshot.
S826_CounterCompareWrite(0, 0, 0, 5000);     // Load target counts into compare0 reg.
S826_CounterSnapshotConfigWrite(0, 0, 1, 2); // Snapshot when counts reach target.
RouteCounterOutput(0, 0, 0);                 // Route counter0 output to dio0.
S826_CounterStateWrite(0, 0, 1);             // Start tracking encoder position.
Programmable pulse width

If desired, a second counter can be used to stretch the pulse to any desired width. To do this, configure the second counter as a one-shot (using the encoder counter's ExtOut as a preload trigger) and program its preload counts to the desired pulse width. In this case the one-shot's (vs. encoder counter's) ExtOut must be routed to the DIO. Note that if rise time is critical, an external pull-up may still be required.

The following code uses a second counter to stretch the pulse width: it will output a 500 µs pulse on dio0 when 5000 counts is reached.

// Output a 500 microsecond pulse when counts reach 5000 ----------

// Configure counter0 as one-shot, used to stretch output pulses from counter1.
CreateOneShot(0, 0, 3, 500);                 // Create 500 us 1-shot, trig=ExtOut1.
RouteCounterOutput(0, 0, 0);                 // Route one-shot output to dio0.

// Configure counter1 as encoder interface; output 20ns pulse upon compare0 match.
S826_CounterModeWrite(0, 1,                  // Configure counter mode:
  S826_CM_K_QUADX4 |                         //   clock = external quadrature x4
  S826_CM_OM_MATCH);                         //   pulse ExtOut upon snapshot.
S826_CounterCompareWrite(0, 0, 0, 5000);     // Load target counts into compare0 reg.
S826_CounterSnapshotConfigWrite(0, 0, 1, 2); // Snapshot when counts reach target.
S826_CounterStateWrite(0, 1, 1);             // Start tracking encoder position.

Output pulse every N encoder pulses

The following code will generate an output pulse every 20K encoder counts, using counter0 and dio0 on board number 0, while tracking encoder position. A snapshot is captured each time an output pulse is issued, which is used to set up the next target counts.

Note that the pulse width will always be 20 ns regardless of how long the counts remain at the target value. Consequently, an external pull-up must be added to the DIO to speed up its rising edge as explained in Using external pull-up resistors. If a longer pulse is needed, a second counter can be used to stretch counter0's output pulse as shown in Programmable pulse width.

If it isn't necessary to track encoder position then it's recommended to use the simpler method shown in Without tracking.

// Output a 20 ns pulse every 20000 encoder counts while tracking position ----------

#define PULSE_INTERVAL 20000     // output a DIO pulse every 20,000 encoder counts

uint targ = PULSE_INTERVAL;      // Generate pulse when encoder counts reach this.

// Configure counter0 as encoder interface; output 20ns pulse upon compare0 match.
S826_CounterModeWrite(0, 0,                  // Configure counter mode:
  S826_CM_K_QUADX4 |                         //   clock = external quadrature x4
  S826_CM_OM_MATCH);                         //   pulse ExtOut when counts reach target
S826_CounterSnapshotConfigWrite(0, 0, 1, 2); // Enable snapshots upon counts match.
RouteCounterOutput(0, 0, 0);                 // Route counter0 output to dio0.
S826_CounterStateWrite(0, 0, 1);             // Start tracking encoder position.

do {  // Repeat forever ...
  S826_CounterCompareWrite(0, 0, 0, targ);   // Program target counts and wait for match.
  int errcode = S826_CounterSnapshotRead(0, 0, NULL, NULL, NULL, S826_WAIT_INFINITE);
  targ += PULSE_INTERVAL;                    // Bump target counts.

  // TODO: PERFORM ANY OTHER REQUIRED PROCESSING

} while (errcode == S826_ERR_OK);
Programmable pulse width

The following code builds on the previous example by using a second counter to stretch the pulse width: it will output a 500 µs pulse on dio0 every 20K encoder counts.

// Output a 500 microsecond pulse every 20000 encoder counts while tracking position ----------

#define PULSE_INTERVAL 20000        // output a DIO pulse every 20,000 encoder counts

uint targ = PULSE_INTERVAL;         // generate pulse when encoder counts reach this

// Configure counter0 as one-shot, used to stretch output pulses from counter1.
CreateOneShot(0, 0, 3, 500);                 // Create 500 us 1-shot, trig=ExtOut1.
RouteCounterOutput(0, 0, 0);                 // Route one-shot output to dio0.

// Configure counter1 as encoder interface; output 20ns pulse upon compare0 match.
S826_CounterModeWrite(0, 1,                  // Configure counter mode:
  S826_CM_K_QUADX4 |                         //   clock = external quadrature x4
  S826_CM_OM_MATCH);                         //   pulse ExtOut when counts reach target
S826_CounterSnapshotConfigWrite(0, 1, 1, 2); // Enable snapshots upon compare0 match.
S826_CounterStateWrite(0, 1, 1);             // Start tracking encoder position.

do {  // Repeat forever ...
  S826_CounterCompareWrite(0, 1, 0, targ);   // Program target counts and wait for match.
  int errcode = S826_CounterSnapshotRead(0, 1, NULL, NULL, NULL, S826_WAIT_INFINITE);
  targ += PULSE_INTERVAL;                    // Bump target counts.

  // TODO: PERFORM ANY OTHER REQUIRED PROCESSING

} while (errcode == S826_ERR_OK);
Without tracking

If position tracking is not required then there's no need to reload the Compare0 register for each output pulse (as in the above examples). Instead, configure the counter to automatically preload zero counts upon Compare0 match. Counter snapshots must be enabled to generate an output pulse upon Compare0 match, but in this example the snapshots are not used (the snapshot FIFO is allowed to fill and harmlessly overflow). If a wider output pulse is needed, use a one-shot to stretch the 20 ns output pulse, as shown in the previous above.

// Output a 20 ns pulse every 20000 encoder counts (without position tracking) ----------

// Configure counter0 as encoder interface; output 20ns pulse upon compare0 match.
S826_CounterModeWrite(0, 0,                  // Configure counter mode:
  S826_CM_K_QUADX4 |                         //   clock = external quadrature x4
  S826_CM_OM_MATCH |                         //   pulse ExtOut when counts==compare0
  S826_CM_PX_MATCH0);                        //   reset counts to 0 when counts==compare0
S826_CounterCompareWrite(0, 1, 0, 20000);    // Set compare0 value to 20000.
S826_CounterPreloadWrite(board, 0, 0, 0);    // Set preload0 value to zero.
S826_CounterSnapshotConfigWrite(0, 0, 1, 2); // Enable snapshots upon counts match.
RouteCounterOutput(0, 0, 0);                 // Route ExtOut to dio0.
S826_CounterStateWrite(0, 0, 1);             // Start the counter running.

Here's a trick you can use to generate wide output pulses with a single counter: have the counter count down to zero and then preload. Both preload registers are used, alternately, with ExtOut active when Preload1 is selected (similar to a PWM generator). Snapshots are no longer needed to generate output pulses because ExtOut is controlled by the preload selector. In the following example a pulse will be output every 20000 encoder counts and the pulse will be active for 100 encoder counts. Note that the encoder direction must not change.

// Output a pulse every 20000 encoder counts with pulse width = 100 counts ----------

#define PULSE_INTERVAL 20000                 // output a DIO pulse every 20,000 encoder counts
#define PULSE_WIDTH    100                   // pulse width = 100 counts

#define PL0 (PULSE_INTERVAL - PULSE_WIDTH - 1)   // Preload0 counts = counts prior to pulse
#define PL1 (PULSE_WIDTH - 1)                    // Preload1 counts = counts during pulse

// Configure counter0 as encoder interface; output 20ns pulse upon compare0 match.
S826_CounterModeWrite(0, 0,                  // Configure counter mode:
  S826_CM_K_QUADX4 |                         //   clock = external quadrature x4
  S826_CM_UD_REVERSE |                       //   count down
  S826_CM_BP_BOTH |                          //   alternate between preload0 and preload1
  S826_CM_OM_PRELOAD |                       //   assert ExtOut when preload0 is selected
  S826_CM_PX_ZERO);                          //   preload when counts reach 0
S826_CounterPreloadWrite(board, 0, 0, PL0);  // Set preload0 value to pulse activation counts.
S826_CounterPreloadWrite(board, 0, 1, PL1);  // Set preload1 value to pulse width.
RouteCounterOutput(0, 0, 0);                 // Route ExtOut to dio0.
S826_CounterStateWrite(0, 0, 1);             // Start the counter running.

Encoder FAULT output

My encoder has a FAULT output. Can the 826 monitor the FAULT signal and notify the processor when it changes state?

Some incremental encoders output a FAULT (or FLT) signal to indicate problems such as damaged bearings, code disc defects/contamination, or malfunctioning emitters/detectors. The FLT signal is typically conveyed over an RS-422 differential pair, which is compatible with the 826's counter inputs. This hardware compatibility and the counter's flexible architecture allow it to monitor the FLT signal and automatically notify the processor when FLT changes state. Note that the general technique discussed here can be used to monitor the state of any RS-422 signal.

To implement this, connect FLT to the counter's IX input. If FLT is active-low, swap the differential pair between line driver and receiver as shown below (don't swap if active-high) so that a disconnected or unpowered encoder will be reported as a fault.

Using an 826 counter channel to monitor an incremental encoder's active-low FAULT output

The following code initializes the counter, starts it running, and then monitors the FLT signal state. It should be run in a dedicated thread because it blocks while waiting for FLT to go active. The counter is configured to count up at 1 MHz. A preload is triggered whenever IX is high, which holds the counts at 0, and the first Compare0 match triggers a snapshot; these allow the FLT state to be determined when the counter is enabled. Snapshots are also triggered upon IX rising and falling edges; these are used to notify the processor that FLT has changed state.

int FLT_state = -1;    // Public FLT state indicator: -1=unknown, 0=normal, 1=fault

// FLT monitor thread: maintains FLT_state and notifies other threads when FLT_state changes.
int EncoderFaultMonitor(uint board, uint chan)
{
  uint errcode;
  S826_CounterModeWrite(board, chan,                    // Configure counter0 mode:
    S826_CM_K_1MHZ |                                    //   count up at 1 MHz
    S826_CM_PX_IXHIGH);                                 //   preload while IX is high
  S826_CounterSnapshotConfigWrite(board, chan,          // Capture snapshot upon:
    S826_SSRMASK_MATCH0 | (S826_SSRMASK_MATCH0 << 16) | //   first compare0 match
    S826_SSRMASK_IXRISE |                               //   all IX rising edges
    S826_SSRMASK_IXFALL,                                //   all IX falling edges
    S826_BITWRITE);
  S826_CounterPreloadWrite(board, chan, 0, 0);          // Set preload0 to 0.
  S826_CounterCompareWrite(board, chan, 0, 1);          // Set compare0 to 1.
  S826_CounterStateWrite(board, chan, 1);               // Enable counter.
  errcode = ReadFLT(board, chan, 1);                    // Determine FLT initial state.
  while (errcode == S826_ERR_OK);                       // Monitor FLT state transitions.
    errcode = ReadFLT(board, chan, S826_WAIT_INFINITE);
  return errcode;
}

The following function is called by the above code to determine the state of FLT. Note that you must insert code that notifies other threads (e.g., via semaphore) when FLT_state has changed.

// Wait up to tmax for a FLT state change, then copy the current state to FLT_state.
static int ReadFLT(uint board, uint chan, uint tmax)
{
  uint reason;
  int errcode = S826_CounterSnapshotRead(board, chan, NULL, NULL, &reason, tmax);
  if (errcode == S826_ERR_NOTREADY) {     // If no snapshots captured within finite tmax then
    errcode = S826_ERR_OK;                //   cancel error;
    FLT_state = 1;                        //   counts holding at 0 because FLT asserted.
  } else if (errcode != S826_ERR_OK)      // Else if error detected then
    FLT_state = -1;                       //   abort and declare FLT state unknown.
  else                                    // Else
    FLT_state = ((reason & S826_SSRMASK_IXRISE) != 0);  //   FLT state determined by snapshot trig.

  // TODO: NOTIFY OTHER THREADS THAT FLT STATE CHANGED

  return errcode;
}

Interfacing touch-trigger probes

A touch-trigger probe

Touch-trigger probes (such as those made by Renishaw, Tormach, Marposs, etc.) are commonly used in CNC machine tools and coordinate measuring machines (CMMs). In a typical application, three or more incremental encoders monitor the position of a probe as it moves relative to a workpiece. The probe will output a digital signal when its stylus contacts the workpiece. When this happens, the stylus location must be determined by sampling all of the encoder counters.

At lower traverse speeds and in cases where moderate accuracy is acceptable, a probe-triggered interrupt service routine (ISR) can be used to sequentially sample the counters. This is feasible because ISR overhead and ISR-induced measurement errors (due to trigger latency and sampling skew) are negligible in such cases. However, these issues become significant when high accuracy and throughput is required. Consequently, in high-performance machines a hardware mechanism is needed that will simultaneously sample all counters with very low trigger latency.

High-performance measurement

Model 826 directly supports high-performance probe measurement by providing the ability to simultaneously sample up to six encoder counters with sub-microsecond trigger latency. In the following example, the probe's trigger signal is connected to dio17, and consecutive counters (starting with counter0) are assigned to the encoders of a 3-axis probe. The counters' high-speed FIFOs will simultaneously capture all encoder positions within 20 ns of receiving a probe trigger.

First we will define a data structure and function to receive coordinates. The function returns the sampled encoder counts along with a code (trig) that indicates what caused the counts to be sampled (trig may be set to NULL if the software doesn't need to know what triggered the sample).

typedef struct POINT {  // Probe coordinates (extensible to higher dimensions)
  uint x;
  uint y;
  uint z;
} POINT;

int InputTouch(POINT *p, uint *trig)
{
  // Wait for a snapshot, then get X coordinate and snapshot's trigger source.
  int errcode = S826_CounterSnapshotRead(0, 0, &p->x, NULL, trig, S826_WAIT_INFINITE);

  // Get Y and Z coordinates; no need to wait because they've already been triggered.
  if (errcode == S826_ERR_OK) {
    errcode = S826_CounterSnapshotRead(0, 1, &p->y, NULL, NULL, 0);
    if (errcode == S826_ERR_OK)
      errcode = S826_CounterSnapshotRead(0, 2, &p->z, NULL, NULL, 0);
  }
  return errcode;
}

This function will set up the probe interface and start it running:

CreateProbeInterface(uint trig, uint dio)
{
  for (int i = 0; i < 3; i++) {  // For each axis, assign a counter and configure it:
    S826_CounterExtInRoutingWrite(0, i, dio);       // Route dio to counter's ExtIn input.
    S826_CounterSnapshotConfigWrite(0, i, trig, 0); // Capture counts upon these events.
    S826_CounterModeWrite(0, i, S826_CM_K_QUADX4);  // Counter clock = external quadrature x4.
    S826_CounterStateWrite(0, i, 1);                // Start tracking encoder position.
  }
}

Now put it all together. This code will instantiate the probe interface and then loop while it processes touch events:

// Implement a high-performance touch probe interface --------

#define PROBE_DIO   17      // The probe signal is connected to this DIO (0-47)
#define PROBE_EDGE  0x20    // Trigger on this probe edge (0x20=falling, 0x40=rising)

POINT point;  // touch coordinates

CreateProbeInterface(PROBE_EDGE, PROBE_DIO);    // Config probe interface and start it running.
                                                // Process triggers from the probe:
while (InputTouch(&point, NULL) == S826_ERR_OK) //   Wait for next touch and get coordinates.
  ProcessTouchPoint(&point);                    //   TODO: PROCESS TOUCH (e.g., add to point list).
Halting the probe interface

This expanded version of the previous example provides an easy way to halt the probe interface:

// High-performance touch probe interface with Halt function --------

POINT point;  // touch coordinates
uint  trig;   // trigger flags

CreateProbeInterface(PROBE_EDGE, PROBE_DIO);       // Config probe interface and start it running.
                                                   // Process triggers from the probe:
while (InputTouch(&point, &trig) == S826_ERR_OK) { //   Wait for next touch and get coordinates.
  if (trig & S826_SSRMASK_SOFT)                    //   If snapshot triggered by software then
    break;                                         //     halt probe interface.
  ProcessTouchPoint(&point);                       //   TODO: PROCESS TOUCH (e.g., add to point list).
}

To halt the probe interface, simply trigger a soft snapshot on counter0:

S826_CounterSnapshot(0, 0);
Handling false triggers

Touch-trigger probes commonly detect false triggers due to vibration, contact bounce, or both. Most probes internally debounce detected triggers to reduce the frequency of false output triggers. This debouncing increases the trigger latency, which in turn causes measurement error because the probe is moving while the trigger is being delayed. To mitigate this, systems will typically maintain constant probe speed while seeking a touch and then, when the debounced trigger has been received and all encoders have been sampled, estimate the actual touch coordinates via extrapolation (using the probe calibration).

Unfortunately, even internally debounced probes will sometimes output false triggers. This problem is especially prevalent in high-vibration CNC machines, and in both CNC and CMM systems when low-latency probes (ones with very fast or no internal debounce) break contact with a workpiece.

An obvious solution is to suppress false triggers by externally debouncing the probe. Since the probe signal enters the 826 board via a DIO, an easy way to do this is to use the DIO's built-in debounce filter. However, external debouncing will introduce additional trigger latency, which defeats the purpose of high-speed probes and further reduces the accuracy of lower-performance probes. Furthermore, probe speed cannot be allowed to change until debouncing completes — an inconvenient constraint that becomes a performance bottleneck when high throughput is required. What is needed is a way to record the probe position at the leading edge of a touch so that later, when the touch has been validated, its precise position will already be known.

Model 826 offers an elegant solution to this problem which produces exact touch coordinates while at the same time rejecting false triggers. Also, since coordinates are captured at the leading edge of a touch, it's no longer necessary to maintain constant probe speed during touch acquisition. This method capitalizes on counter features used in the previous example (simultaneously sampling multiple counters; storing a sequence of samples from each counter in a dedicated high-speed FIFO) and the counters' ability to accept simultaneous sampling triggers from multiple sources. In the following example, counter5 is used as a retriggerable one-shot to debounce the probe signal's leading edge. The probe signal must be connected to dio17 as in the previous example, and also to counter5's IX+ input for the debounce function.

// High-accuracy touch probe interface with false trigger rejection ---------------

#define PROBE_DIO   17      // The probe signal is connected to this DIO (0-47)
#define BOUNCE_TIME 100     // Suppress triggers shorter than this (microseconds)
#define DB_TIMER    5       // Counter used as debounce timer.

POINT point;        // Exact probe coordinates at probe trigger rising edge.
int touching = 0;   // Not currently touching.
uint trig;          // Event type that triggered a counter snapshot.
int i;
int errcode;

CreateOneShot(0, DB_TIMER,               // Create retriggerable one-shot:
  S826_CM_XS_EXTNORMAL,                  //   trigger source = IX input (probe signal).
  BOUNCE_TIME);                          //   output pulse width = debounce interval.

for (i = 0; i < 3; i++) {  // Create encoder interfaces: counter0/1/2 = X/Y/Z axis -----
  S826_CounterExtInRoutingWrite(0, i,    // Connect counter's ExtIn input
    PROBE_DIO);                          //   to probe signal.
  S826_CounterModeWrite(0, i,            // Configure counter:
    S826_CM_K_QUADX4 |                   //   clock = external quadrature x4.
    (DB_TIMER + 2));                     //   connect Index input to one-shot ExtOut.
  S826_CounterSnapshotConfigWrite(0, i,  // Capture snapshot to FIFO when:
    S826_SSRMASK_EXTRISE |               //   probe rising edge
    S826_SSRMASK_EXTFALL |               //   probe falling edge
    S826_SSRMASK_IXFALL,                 //   one-shot trailing edge
    0);
  S826_CounterStateWrite(0, i, 1);       // Start tracking the encoder.
}

while (1)   // Repeat forever ...
{
  // Wait for next probe snapshot, get its coordinates and trigger source.
  POINT p;
  errcode = InputTouch(&p, NULL, &trig);
  if (errcode != S826_ERR_OK)   // Abort if problem reading counters.
    break;

  if (reason & S826_SSRMASK_EXTFALL) { // If probe trailing edge,
    touching = 0;   // discard coordinates and start next touch acquisition
  }
  else if (reason & S826_SSRMASK_IXFALL) { // If one-shot trailing edge,
    if (touching) { // discard coordinates and, if currently touching,
      // We have a new, valid touch point, so we will now pass the point to the
      // application so it can be processed as needed (e.g., add to point list).
      ProcessTouchPoint(&point);  // TODO: PROCESS THE NEW POINT
      touching = 0; // start next touch acquisition
    }
  }
  else if (reason & S826_SSRMASK_IXRISE) {  // If probe leading edge,
    point = p;     // record the coordinates
    touching = 1;  // touch acquisition is in progress
  }
  else
    break;  // unexpected snapshot trigger (e.g., fifo overflowed)
}

Encoder-controlled voltage

Panel mount encoder with integrated pushbutton
Panel mount incremental encoders are commonly used as manually operated controls for audio volume, power supply output voltage, and other analog phenomena. Some (like the one seen on the right) have a built-in pushbutton that can be monitored with an 826 DIO, either by polling the DIO or by taking advantage of the DIO's interrupt-driven edge detection system.

The following example shows how to use a panel mount encoder to control an analog voltage. The encoder is connected to counter0 (via its clkA/clkB inputs) and the output voltage is generated by dac0. The encoder counts are sampled (and the dac is updated accordingly) at 10 Hz.

// Use a panel mount encoder to control a DC voltage -----------------

#define MAX_COUNTS  0          // Minimum dac value, corresponds to 0V.
#define MAX_COUNTS  65535      // Maximum dac value, corresponds to +10V.

uint counts;
uint prev = ~0;

// Configure DAC and encoder interface.
S826_DacRangeWrite(0, 0, 1, 0);        // Set dac output range to 0 to +10 V.
S826_CounterModeWrite(0, 0,            // Configure counter:
  S826_CM_K_QUADX4 |                   //   Clock = external quadrature x4.
  S826_CM_XS_10HZ);                    //   Use 10 Hz tick generator as sampling trigger.
S826_CounterSnapshotConfigWrite(0, 0,  // Capture counter snapshot upon
     S826_SSRMASK_IXRISE, 0);          //   rising edge of sampling trigger.
S826_CounterStateWrite(0, 0, 1);       // Start tracking the encoder position.

// Repeat forever: wait for next sample and then process it.
while (S826_CounterSnapshotRead(0, 0, &counts, NULL, NULL, INFINITE_WAIT) == S826_ERR_OK) {
  if (counts != prev) {                // If counts changed since previous sample ...
    if ((int)counts < MIN_COUNTS) {      // Limit counts to legal dac values.
      counts = MIN_COUNTS;
      JamCounts(0, 0, MIN_COUNTS);
    }
    else if (counts > MAX_COUNTS) {
      counts = MAX_COUNTS;
      JamCounts(0, 0, MAX_COUNTS);
    }
    S826_DacDataWrite(0, 0, counts, 0);  // Program the dac output voltage.
    prev = counts;
  }
}

Unexpected snapshots

Why do I occasionally get two snapshots (upon counts match) from my incremental encoder when only one is expected?

Assuming your encoder has not changed direction, the unexpected snapshots are probably caused by noise or slow edges on the encoder clock signals. This is possible even when the snapshot timestamps are identical, because encoder clocks are sampled every 20 nanoseconds whereas timestamp counts are incremented only once per microsecond.

If this is what is happening, unexpected snapshots can be prevented by calling S826_CounterFilterWrite() to establish a clock filter. A small filter value is usually sufficient -- just enough to clean up clock edges, but not so long that valid encoder counts will be missed. For example, this will set the clock filter to 100 ns (index input will not be filtered):

#define FILT_NS    100                // Filter time in ns -- change as desired to multiple of 20.
#define FILT_RES   20                 // Filter resolution in nanoseconds.
#define FILT_CLK   (1 << 30)          // Bit flag to enable clock filtering.
S826_CounterFilterWrite(0, 0,         // Activate clock filter on counter 0.
    FILT_CLK + FILT_NS / FILT_RES);

Another way to handle this is to configure the Match snapshot trigger to become automatically disabled when it fires. Note that if you use this method, you will need to re-enable the Match trigger to capture snapshots of subsequent matches.

S826_CounterSnapshotConfigWrite(0, 5, // Configure snapshots on counter 5:
   S826_SSRMASK_MATCH0                //  enable snapshot upon Match0 (counts==Compare0 register)
   | (S826_SSRMASK_MATCH0 << 16),     //  disable subsequent Match0 snapshots upon Match0
   S826_BITWRITE);                    //  disable all other snapshot triggers

Encoder maximum frequency

As explained in clock frequency limits, the ClkA Nyquist frequency is 12.5 MHz in quadrature modes and 25 MHz in single-phase modes. Consequently, if you expect ClkA to exceed 12.5 MHz during a particular motion segment then you should use a single-phase clock mode across that entire segment. This is recommended because even though the clock mode can be changed "on the fly" (by calling S826_CounterModeWrite), you will likely accumulate errors if you switch modes while the encoder is rotating.

Encoder wiring

I want to connect two TTL/CMOS incremental encoders to counter channels 0 and 1 — what's the correct way to do this?

Connect the encoders as shown below. If the encoder has a "Z" (index) output, connect Z to the counter's +IX input. Encoders may be connected to counter channels 2-5 in a similar fashion.

Wiring diagram showing how to connect two TTL/CMOS-compatible single-ended incremental encoders to the 826 board using counter channels 0 and 1

Timing

Clock frequency limits

Quadrature clocks

In all quadrature clock modes (x4, x2, and x1) the ClkA and ClkB inputs are simultaneously sampled at 50 Ms/s (every 20 ns). In any two consecutive samples, ClkA may change, or ClkB may change, or neither, but not both. Consequently, the Nyquist frequency of ClkA (or ClkB) is 12.5 MHz (four times the sampling period). This corresponds to a maximum count rate of 50 Mcounts/s, but in practice some margin should always be allowed for differential noise and quadrature clock phase/duty cycle errors.

If both ClkA and ClkB change in consecutive samples then it must be assumed that counts have been missed. This event is critically important to the application software because the current counts can no longer be relied on to accurately indicate the encoder position. To account for this, the counter will immediately notify the application software by capturing a snapshot with the S826_SSRMASK_QUADERR bit asserted in the reason flags. The software should check every snapshot for this notification — regardless of the expected reason for the snapshot — in a fashion similar to this:

// In quadrature clock modes, always check for quadrature clock errors -------

uint counts, tstamp, reason;
int errcode = S826_CounterSnapshotRead(board, ctr,  // Wait for next snapshot.
   &counts, &tstamp, &reason, S826_WAIT_INFINITE);
if (reason & S826_SSRMASK_QUADERR)                  // Check for quadrature clock error.
   printf("Quadrature clock error!");
else
   // ... process other reason bits normally
Single-phase clocks

In single-phase (non-quadrature) modes, ClkB is ignored and the clock decoder samples ClkA at 50 Ms/s (every 20 ns). In any two consecutive samples, ClkA can change at most one time. Since ClkA must be sampled at least every half-cycle, the Nyquist frequency of ClkA is 25 MHz. Note that the counter has no way of knowing if ClkA exceeds 25 MHz, so it cannot notify the application if this occurs.

Input filters

The ClkA, ClkB and Index inputs are acquired using an internal 50 MHz sampling clock (SysClk) with 3 ns minimum setup time. Consequently, an edge on any of these signals will will be detected 0.3 to 20.3 ns after it occurs. In the below timing diagram, the input edge is detected at SysClk 2 because it occurs after SysClk 1 and ≥ 0.3 ns before SysClk 2.

Each input has a digital filter with programmable time F. A filter's input signal will appear on its output when the input has remained stable for time F. The filter delays the detected edge by F+1 SysClk periods. This diagram show filter timing in the general case:

External clock delay due to clock sampler and noise filter

The filter delay can be minimized by setting F=0, which results in the following timing:

External clock delay due to clock sampler and noise filter

Counter functions

The filtered ClkA/B signals are decoded and used to control the counter. As shown in the following diagram, counts will change one SysClk period after a filter output change and then, one SysClk later, a snapshot is captured to the event FIFO and ExtOut goes active for one SysClk period. If ExtOut is routed to a DIO, it will be delayed one additional SysClk period by the DIO output sampler on its way to the DIO connector pin.

Counter timing diagram

Summary of counter timing parameters:

Timing Parameter Minimum Maximum
ClkA/ClkB setup time 3 ns
ClkA/ClkB hold time 0 ns
ClkA/ClkB to counts change 40 ns 60 ns
ClkA/ClkB to counts change 40 ns 60 ns
ClkA/ClkB to snapshot 60 ns 80 ns
ClkA/ClkB to ExtOut (internal) 60 ns 80 ns
ClkA/ClkB to ExtOut (DIO pin) 80 ns 100 ns

Using external pull-up resistors

My PWM stops working when it outputs high frequencies. Why does this happen and how can I prevent it?

The PWM signal (from the counter's ExtOut) is output by a DIO channel. When the DIO driver transitions to the off state, its 10 KΩ source resistance (combined with circuit capacitance) stretches the DIO rise time and thereby delays its transition to logic '1' (see DIO rising edge in the above timing diagram). As the PWM off time decreases, the rise time (which is constant) becomes a higher percentage of the off time. When the off time is too short (i.e., off time < rise time), the PWM output will seem to "stop" because there is not enough time for the signal to reach logic '1'.

This situation can arise when the PWM is operating at high frequencies or generating short positive pulses, and can be avoided by speeding up the DIO rise time.

PWM operation

How to configure a counter for PWM operation

The following functions configure a counter to operate as a PWM generator and start it running. The PWM period is defined by ontime and offtime, which are specified in microseconds. The PWM output appears on the counter's ExtOut signal, which can be routed to a DIO pin if desired.

int SetPWM(uint board, uint ctr, uint ontime, uint offtime)
{
  S826_CounterPreloadWrite(board, ctr, 0, ontime);   // On time in us.
  S826_CounterPreloadWrite(board, ctr, 1, offtime);  // Off time in us.
}

int CreatePWM(uint board, uint ctr, uint ontime, uint offtime)
{
  S826_CounterModeWrite(board, ctr,        // Configure counter for PWM:
    S826_CM_K_1MHZ |                       //   clock = internal 1 MHz
    S826_CM_UD_REVERSE |                   //   count down
    S826_CM_PX_START | S826_CM_PX_ZERO |   //   preload @startup and counts==0
    S826_CM_BP_BOTH |                      //   use both preloads (toggle)
    S826_CM_OM_PRELOAD);                   //   assert ExtOut during preload0 interval
  SetPWM(board, ctr, ontime, offtime);     // Program initial on/off times.
}

int StartPWM(uint board, uint ctr)
{
  return S826_CounterStateWrite(board, ctr, 1);      // Start the PWM generator.
}
// Example: Configure counter0 and dio0 as a PWM generator; ontime = 900, offtime = 500 microseconds.
CreatePWM(0, 0, 0, 900, 500);    // Configure counter0 as PWM.
RouteCounterOutput(0, 0, 0);     // Route counter0 output to dio0.
StartPWM(0, 0);                  // Start the PWM running.

Fail-safe PWM generator

I'm using a counter-based PWM to control a motor. Is there a way to automatically shut off the motor if my program crashes?

Yes, you can use the watchdog timer and fail-safe controller to force the PWM output to a constant state. To do this, configure the watchdog to activate safemode when it times out, as shown in this simplified block diagram:

Fail-safe PWM generator

Before enabling the PWM generator or watchdog, program the desired PWM failsafe level into the DIO channel's SafeData register (see Programming safemode states); this specifies the signal that will be sent to your motor controller when your program crashes (which will shut off the motor). Note that the DIO output is active-low. The SafeEnable register is set to '1' by default, thus enabling fail-safe operation on the DIO channel. Next, program the watchdog interval and start the watchdog running. Finally, start the PWM running.

After enabling the watchdog, your program must periodically kick it to prevent it from timing out, by calling S826_WatchdogKick(). When your program is running normally, the PWM signal will appear on the DIO pin. If your program crashes (or fails to kick the watchdog in a timely manner), the watchdog will time-out and activate the fail-safe controller. This will switch the DIO pin to the level specified by the SafeData register, which in turn will halt the motor.

#define CRASH_DET_SECONDS 0.5  // Halt motor if program fails to kick watchdog within this time.

uint dio_mask[2]= {1, 0};                     // dio bitmask for PWM output (dio0)
uint wdtime[5] = {                            // watchdog timing:
  (uint)(50000000 * (CRASH_DET_SECONDS)),     //   timer0
  1, 1, 0, 0}; // watchdog interval           //   others

// Create a fail-safe PWM generator using counter0 and dio0.
CreatePWM(0, 0, 900, 500);                    // Config counter0 as PWM w/initial 0.9/0.5 ms on/off times.
RouteCounterOutput(0, 0, 0);                  // Route counter0 output to DIO 0.
S826_SafeWrenWrite(0, S826_SAFEN_SWE);        // Enable writes to watchdog and SafeData.
S826_DioSafeWrite(0, dio_mask, S826_BITCLR);  // Force PWM output to '0' (+5V) when program crashes.
S826_WatchdogConfigWrite(0, 0x10, wdtime);    // Set wdog interval; trig safemode upon timeout.

// Start the PWM generator running.
S826_WatchdogEnableWrite(0, 1);               // Start watchdog. PROGRAM MUST KICK IT FROM NOW ON!
S826_SafeWrenWrite(0, S826_SAFEN_SWD);        // Prevent errant writes to watchdog and SafeData.
StartPWM(0, 0);                               // Start the PWM generator.

Phase-locked PWM outputs

Some applications require multiple, phase-locked PWM outputs. Although the 826's counters do not directly implement phase locking, it is possible to simulate phase-locked PWM outputs by using counters configured as hardware-triggered one-shots. This technique can be used in a variety of ways.

Example: quadrature generator

A quadrature clock generator can be implemented using three counters and two DIOs as shown in the example below. Except for DIO load connections, no external wiring is required (counter and DIO interconnects are established by the board's programmable signal router).

Quadrature generator

Counter0 is a PWM running at 50% duty cycle, which directly generates the quadrature "A" output clock on dio0. Counter2 is used to hold off the "B" generator after "A" rises, to create the 90° phase angle between "A" and "B" clocks. Counter1 is a one-shot that generates the "B" clock on dio1; it does this by issuing a pulse when triggered by Counter2.

This quadrature generator has 1 µs resolution because the counters are using the board's internal 1 MHz clock. If higher resolution is needed, the functions can be modified to use the internal 50 MHz clock.

// Generate A/B quadrature clocks ---------

#define PERIOD 600          // Output period in microseconds.
#define HP ((PERIOD) / 2)   // Half-period.
#define QP ((PERIOD) / 4)   // Quarter-period.

CreatePWM(0, 0, HP, HP);      // Generate "A" clock with counter0.
CreateOneShot(0, 2, 2, QP);   // Generate phase shift with counter2.
CreateOneShot(0, 1, 4, HP);   // Generate "B" clock with counter1.
RouteCounterOutput(0, 0, 0);  // Route "A" clock (ExtOut0) to dio0.
RouteCounterOutput(0, 1, 1);  // Route "B" clock (ExtOut1) to dio1.
StartPWM(0, 0);               // Start the quadrature generator.
Example: 3-phase controller

Here's a way to implement a 3-phase PWM generator using five counters and three DIOs:

3-phase PWM generator

High resolution pulse-burst generator

Many applications (e.g., radar, laser) require a fixed number of precisely-timed pulses. This example shows how to generate a burst of pulses with selectable resolution of 20 ns or 1 µs. It uses two counters (counter0 and counter1) to generate the pulse burst and one DIO (dio0) to output the pulses. The DIO must be externally connected to counter1's clkA+ input to allow it to control the pulse count. A snapshot is used to signal burst completion, which allows other threads to run while the burst is in progress. A pulse burst can be triggered by software (by calling OutputBurst) or by an external signal applied to counter1's IX+ input (optional).

// Create a pulse burst generator.
//  res - timing resolution: set to 1 (microsecond) or 20 (nanoseconds).
void CreateBurstGenerator(uint board, int res)
{
  S826_CounterModeWrite(board, 0,           // Config counter0 as PWM generator:
    ((res == 1) ?                           //   select clock based on resolution:
      S826_CM_K_1MHZ :                      //     1 us -> internal 1 MHz
      S826_CM_K_50MHZ) |                    //     20 ns -> internal 50 MHz
    S826_CM_UD_REVERSE |                    //   count down
    S826_CM_BP_BOTH |                       //   use both preloads (toggle)
    S826_CM_XS_EXTOUT(1) |                  //   connect index input to ExtOut1 (pulse gate)
    S826_CM_PX_IXRISE | S826_CM_PX_ZERO |   //   preload @ index^ and counts=0
    S826_CM_TE_IXRISE |                     //   enable counting upon index^
    S826_CM_TD_IXFALL |                     //   disable counting upon index falling edge
    S826_CM_OM_PRELOAD);                    //   assert ExtOut during preload0 interval

  S826_CounterModeWrite(board, 1,           // Config counter1 as pulse counter (PWM enable):
    S826_CM_K_ARISE |                       //   clock = external clkA (wire from ExtOut0)
    S826_CM_UD_REVERSE |                    //   count down
    S826_CM_TE_PRELOAD |                    //   enable counting upon preload
    S826_CM_PX_IXRISE |                     //   preload @ index^ (allows hardware triggering)
    S826_CM_TD_ZERO |                       //   disable counting upon counts=0
    S826_CM_OM_NOTZERO);                    //   assert ExtOut while counts!=0

  S826_CounterSnapshotConfigWrite(board, 1, // Assert IRQ when a burst has completed.
    S826_SSRMASK_ZERO,
    S826_BITWRITE);

  RouteCounterOutput(board, 0, 0);               // Route PWM output to dio0.
  S826_CounterStateWrite(board, 0, 1);            // Enable PWM generator.
  S826_CounterStateWrite(board, 1, 1);            // Enable the pulse counter.
}

// Specify attributes of next pulse burst.
//  npulses - number of pulses in burst.
//  period  - pulse period in res units (e.g., when res=20, period=5 -> 5*20ns = 100ns).
//  width   - pulse width in res units (e.g, when res=1, width=4 -> 4*1us = 4us).
void ConfigBurst(uint board, int npulses, uint period, uint width)
{
  S826_CounterPreloadWrite(board, 0, 0, width);   // Set pulse width (in res units).
  S826_CounterPreloadWrite(board, 0, 1,           // Set pulse period (in res units).
    period - width);
  S826_CounterPreloadWrite(board, 0, 0, npulses); // Set pulse count.
  S826_CounterStateWrite(board, 0, 1);            // Enable PWM generator.
  S826_CounterStateWrite(board, 1, 1);            // Enable the pulse counter.
}

void OutputBurst(uint board)
{
  S826_CounterPreload(board, 1, 1, 0);     // Trigger a pulse burst.
  S826_CounterSnapshotRead(board, 1, NULL, // Block until burst completes.
    NULL, NULL, S826_WAIT_INFINITE);
}
// Example usage:
CreatePulseGenerator(0, 20); // Create a pulse-burst generator w/20 ns resolution.
ConfigBurst(0, 99, 25, 3);   // Burst attributes: 99 pulses @ 2.0 MHz, pulse width = 60 ns.
OutputBurst(0);              // Output the burst.

Stepper motor control

Input section of a basic stepper motor driver
A stepper motor driver has two digital inputs: DIR specifies the rotation direction, and STEP causes the motor to rotate by a fixed-angle "step" each time it receives a pulse. To move the motor through a desired angle, it is necessary to assert DIR and then issue a burst of pulses to the STEP input. The angle is determined by the number of pulses issued on STEP, whereas motor speed is determined by the pulse rate.

The following example shows how to generate the DIR and STEP signals needed to control a stepper motor. It uses two counters (counter0 and counter1) to generate a burst of pulses, and two DIOs to convey DIR and STEP to the controller. A snapshot is used to signal burst completion, which allows other threads to do productive work while the motor is moving.

#define PULSE_WIDTH  5    // STEP pulse width in microseconds

// Create stepper motor driver interface. STEP appears on dio0, DIR on dio1.
void CreateStepperInterface(uint board)
{
  CreateBurstGenerator(board, 1);  // Create burst generator w/1 us resolution.
}

// Move the stepper motor.
void StepperMotorMove(uint board, uint dir, uint period, int npulses)
{
  uint diomask[] = {2, 0};  // bitmask for dio1 (DIR)
  S826_DioOutputWrite(board, diomask,      // Output DIR signal to motor driver.
    dir ? S826_BITSET : S826_BITCLR);
  ConfigBurst(board, npulses, period, PULSE_WIDTH);
  OutputBurst(board);
}

// Example usage:
CreateStepperInterface(0);           // Create motor driver interface.
StepperMotorMove(0, 1, 1000, 100);   // Move motor cw 100 steps at 1 KHz (1000 us/step).
StepperMotorMove(0, 0, 800, 50);     // Move motor ccw 50 steps at 1.25 KHz (800 us/step).

Serial data capture

A counter can be used to capture serial data by leveraging its snapshot FIFO. When the counter has been appropriately configured and enabled, the computer allows the channel hardware to acquire snapshots while it asynchronously reads and processes snapshots from the FIFO.

Serial data capture (asynchronous)

A timestamp is included in every snapshot, which is especially useful for capturing data from asynchronous sources and irregularly-timed sources such as bar code wands. The basic idea is to apply the serial data signal to the counter's Index or ExtIn input and have the counter automatically capture snapshots at signal edges.

In each snapshot, only the timestamp and reason flags are of interest (counts are ignored). The reason flag indicates whether a snapshot was triggered by rising or falling edge and the timestamp indicates the time when the edge occurred. For example, in the serial data waveform shown below, the first rising edge (A) caused a snapshot to be captured when the timestamp generator value was 100, and the reason code indicates the snapshot was triggered by a rising edge.

Serial data capture

Any two consecutive snapshots represent a matched pair of rising/falling or falling/rising edges, corresponding to an interval during which the serial data value was '1' or '0', respectively. For example, in the waveform shown above, snapshots A and B bracket a '1' interval. It is possible to determine the binary value of the serial data from the first reason code, and the duration of the data value from the difference between the timestamps.

To see how this works, consider the above serial data waveform. The counter automatically captures a snapshot for each of the edge events A, B, C and D. When the computer considers snapshots A and B, it determines that the serial data was '1' during interval A-B because A was triggered by a serial data rising edge. Furthermore, it knows that the serial data held at '1' for 300 µs (the difference between the A and B timestamps). Similary, it can determine that interval B-C was a logic '0' lasting 200 µs, and C-D was a 400 µs logic '1'.

For maximum efficiency, consider using a dedicated thread to read the FIFO. This eliminates polling and makes the application event-driven because the thread can wait in S826_CounterSnapshotRead() for the next snapshot without wasting CPU time. Also, this decouples the timing of serial data acquisition from other tasks, thereby greatly simplifying overall software development and maintenance. If fast processing of the serial data is required, raise the thread priority to an appropriately high level.

Serial data capture (synchronous)

To capture clocked serial data (e.g., SPI, I2C), apply the clock signal to the counter's ExtIn or Index input and configure the counter to capture snapshots at either the rising or falling edge of the clock signal (whichever edge coincides with stable data). Apply the data signal to the counter's ClkA input and set the counter's clock mode K=6 (external quadrature clock, x2 multiplier); this will cause the counts to change (it will alternate between two values) upon each data edge.

A serial data bit can be obtained directly from the counts lsb (least significant bit) of each snapshot. Timestamps may be used to identify data packet boundaries, or ignored if frame markers are encoded in the data.

An open-source demo of this technique is available at synchronous serial receiver.

Mode register decoder utility

Is there an easy way to convert a mode register value to a human readable description of counter settings?

Yes: download Sensoray's counter mode decoder utility program (Windows compatible). Run the program and enter the mode register value to see an English language description of the counter mode settings.

Snapshot counts upon match

In case it's not obvious: When a snapshot is caused by counts equal to a compare register, the snapshot counts will always equal the compare register value. Similarly, when a snapshot is caused by counts reaching zero, the snapshot counts will always be zero.

ADC

Handling ADC interrupts

An interrupt request (IRQ) is generated when the ADC completes a conversion burst. These IRQs are managed by the blocking function S826_AdcRead, which configures ADC interrupts and handles the resulting IRQs as required. To wait for the next IRQ, simply call S826_AdcRead; the function will return when ADC data is available, and will block and allow other threads to run while ADC data is unavailable.

The following example shows how this works. In this example, only slot 0 is being used, and timestamps are not used. Note that the ADC (and its trigger source) must have been previously configured and enabled (see next example).

void AdcHandler(void)
{
  int errcode;
  int slotval[16];  // buffer must be sized for 16 slots
  while (1) {
    uint slotlist = 1;  // only slot 0 is of interest in this example
    errcode = S826_AdcRead(0, adcdata, NULL, &slotlist, S826_WAIT_INFINITE); // wait for IRQ
    if (errcode != S826_ERR_OK)
      break;
    printf("Raw adc data = %d", slotval[0] & 0xFFFF);
  }
}

Periodic ADC conversions (self-paced)

Can the ADC periodically acquire samples without using a counter to pace it?

Yes: To do this, configure the ADC for continuous triggering mode and use the slot settling times to control the sampling rate. Note that the sampling period will have a small amount of jitter (≤ 1 µs) because ADC conversion time is 2-3 µs. This example shows how to acquire approximately 20 samples per second from analog input 0:

#define SAMPLING_PERIOD 50000         // Sampling period in microseconds (50000 = 20 samples/s).
#define TSETTLE SAMPLING_PERIOD - 3;  // Compensate for nominal ADC conversion time.

// Configure the ADC subsystem and start it running
S826_AdcSlotConfigWrite(board, 0, 0, TSETTLE, S826_ADC_GAIN_1); // measuring ain 0 on slot 0
S826_AdcSlotlistWrite(board, 1, S826_BITWRITE);                 // enable slot 0
S826_AdcTrigModeWrite(board, 0);                                // trigger mode = continuous
S826_AdcEnableWrite(board, 1);                                  // start adc conversions

while (1) {
  AdcHandler();   // Handle periodic ADC interrupts (using code from earlier example)
}

Periodic ADC conversions (using counter)

A counter can be used to periodically trigger ADC bursts. To do this, configure the counter as a periodic timer that outputs a pulse at the end of each period. The output pulse need not be routed to a DIO pin because it can be internally routed to the ADC's trigger input. Also, it's not necessary to generate counter snapshots because the ADC will notify software when a conversion has completed.

The following code shows how to digitize all 16 analog inputs in a burst, at a rate of period µs/burst. The bursts are triggered by counter0.

// Use counter0 to periodically trigger ADC conversions -------------

void StartAdc16(uint period)  // Configure/start ADC and trigger generator
{
  int i;
  for (i = 0; i < 16; i++)  // Configure all timeslots: 1 slot per AIN; 20us/slot settling time.
    S826_AdcSlotConfigWrite(0, i, i, 20, S826_ADC_GAIN_1);
  S826_AdcSlotlistWrite(0, 0xFFFF, S826_BITWRITE); // Enable all 16 timeslots.
  S826_AdcTrigModeWrite(0, 0xB0);                  // Hardware triggered, source = counter0 ExtOut.
  S826_AdcEnableWrite(0, 1);                       // Enable ADC conversions.
  CreateHwTimer(0, 0, period);                     // Create and start the trigger generator.
}

int ReadAdc16(int *adcbuf)
{
  uint slotlist = 0xFFFF;     // Wait for ADC burst completion.
  return S826_AdcRead(0, adcbuf, NULL, &slotlist, S826_WAIT_INFINITE);
}

In the following example, all 16 AINs are digitized and processed ten times per second.

int adcbuf[16];       // sample buffer -- always set size=16 (even if fewer samples needed)
StartAdc16(100000);   // Configure adc; start adc and trigger generator.
while (ReadAdc16(adcbuf) == S826_ERR_OK) {    // Repeat forever:
  // TODO: PROCESS ADC SAMPLES
}

Oversampling

Oversampling is a useful technique for reducing noise and increasing resolution. Model 826 facilitates oversampling by allowing an analog input (AIN) to be measured multiple times in a single ADC burst. After the burst, the samples can be averaged to obtain an enhanced sample value.

Example

The following code shows how to oversample two AINs. In each burst, AIN0 is digitized eight times and then AIN1 is digitized eight times. To set this up, each AIN is assigned to eight contiguous slots. For each AIN, the first slot includes a settling time because the ADC input has just switched. The seven subsequent slots do not require settling time (and thus settling times are set to 0 µs) because the input has not switched.

The ADC's internal timing is used to pace conversions, by selecting the continuous triggering mode and assigning appropriate settling times. Slot 0 is assigned a long settling time, which effectively determines the sampling period and also provides a necessary settling delay. Slot 8 has a shorter settling time because it only needs to delay long enough for signal settling.

Note that error checking has been omitted here for clarity, but should always be included in robust application code.

// Settling times in microseconds
#define TSETTLE0 10000  // Delay after switching to AIN0 (tweak this to adjust sampling rate).
#define TSETTLE1 20     // Delay after switching ADC to AIN1.

// Average 8 samples and convert to volts (assumes +/-10V measurement range)
#define VOLTS(SUM)  ((SUM) * 10.0 / (8.0 * 32768.0))

int slot;
int adcbuf[16];  // Sample buffer -- always set size=16 (even if fewer samples needed)

// Adc timeslot attributes.
struct SLOTATTR {
  uint chan;      // analog input channel
  uint tsettle;   // settling time in microseconds
} attr[16] = {                                             // During each burst:
  {0, TSETTLE0},                                           //  switch to AIN0, delay, then digitize
  {0, 0}, {0, 0}, {0, 0}, {0, 0}, {0, 0}, {0, 0}, {0, 0},  //  digitize AIN0 7 more times without delay
  {1, TSETTLE1},                                           //  switch to AIN1, delay, then digitize
  {1, 0}, {1, 0}, {1, 0}, {1, 0}, {1, 0}, {1, 0}, {1, 0}}; //  digitize AIN1 7 more times without delay

// Configure all 16 timeslots.
for (slot = 0; slot < 16; slot++)
  S826_AdcSlotConfigWrite(board, slot, attr[slot].chan, attr[slot].tsettle, S826_ADC_GAIN_1);

// Configure adc system and start it running.
S826_AdcSlotlistWrite(board, 0xFFFF, S826_BITWRITE);  // Enable all 16 timeslots.
S826_AdcTrigModeWrite(board, 0);                      // Select continuous triggering mode.
S826_AdcEnableWrite(board, 1);                        // Start conversions.

while (1)    // Repeatedly fetch and display oversampled data:
{
  int sum[] = {0, 0};                                 // Reset sample accumulators (one per AIN).
  uint slotlist = 0xFFFF;                             // Wait for ADC burst
  S826_AdcRead(board, adcbuf, NULL, &slotlist, 1000); //   and read samples from 16 slots.

  for (slot = 0; slot < 16; slot++)                   // Sum the 8 samples from each AIN
    sum[slot >> 3] += (short)(adcbuf[slot] & 0xFFFF); //   while masking off sample meta-data.

  // Compute and report measured voltages.
  printf("AIN0=%3.3fV, AIN1=%3.3fV\n", VOLTS(sum[0]), VOLTS(sum[1]));
}

Polled operation

How can I read analog inputs as fast as possible?

In event-driven applications, the S826_AdcRead function is allowed to block until ADC samples are available. However, blocking necessarily involves context switching, which introduces overhead. To avoid this overhead, blocking must be disabled. This is done by setting argument tmax=0, which allows the ADC subsystem to be polled without blocking.

Example

The following code employs polling to acquire data from all 16 AINs. Each call to S826_AdcRead will return immediately, with slotlist bits indicating the AINs that have new samples waiting in adcbuf. If desired, individual samples may be processed when they arrive in adcbuf (each time S826_AdcRead executes), or the program can wait for all 16 AINs and then process them en masse.

In this example a 7 µs settling delay is allowed before each conversion begins. The ADC conversion time is ≤3 µs, so the total time per AIN is ≤10 µs and the burst time for all AINs is ≤160 µs. Note that individual settling times may need adjustment depending on factors such as source impedance and required accuracy.

#define TSETTLE    7        // Settling delay after switching AIN (adjust as necessary).
#define SLOTFLAGS  0xFFFF   // Timeslot flags: use all 16 timeslots.

int i;
int adcbuf[16];  // Sample buffer -- always set size=16 (even if fewer samples needed)

// Configure all timeslots: 1 slot per AIN; constant settling time for all slots.
for (i = 0; i < 16; i++)
  S826_AdcSlotConfigWrite(board, i, i, TSETTLE, S826_ADC_GAIN_1);

// Configure adc system and start it running.
S826_AdcSlotlistWrite(board, SLOTFLAGS, S826_BITWRITE); // Enable all 16 timeslots.
S826_AdcTrigModeWrite(board, 0);                        // Select free-running mode.
S826_AdcEnableWrite(board, 1);                          // Start conversions.

while (1)    // Repeat forever:
{
  uint remaining = SLOTFLAGS;      // timeslots that have not yet been read
  do {
    uint slotlist = remaining;     // Read all available remaining timeslots.
    int errcode = S826_AdcRead(board, adcbuf, NULL, &slotlist, 0); // note: tmax=0
    remaining &= ~slotlist;

    // OPTIONAL: NEWLY ARRIVED SAMPLES MAY BE PROCESSED WHILE WAITING FOR REMAINING SAMPLES

  } while (errcode == S826_ERR_NOTREADY);

  if (errcode != S826_ERR_OK)
    break; // error

  // TODO: PROCESS ALL UNPROCESSED SAMPLES IN ADCBUF
}

Software triggering

Some applications require that ADC conversion bursts be triggered by software. To set this up, configure the ADC for hardware-triggering and select one of the board's virtual digital outputs as the trigger source. The software can then write to the virtual digital output to start an ADC conversion burst. The following code shows how to use virtual digital output 0 as a software-controlled ADC trigger:

#define TSETTLE    7        // Settling delay after switching AIN (adjust as necessary).
#define SLOTFLAGS  0xFFFF   // Timeslot flags: use all 16 timeslots.
#define VIRTOUT    0        // Use virtual digital output 0 as ADC burst trigger.

void InitAdc(uint board)
{
  // Configure all timeslots: 1 slot per AIN; constant settling time for all slots.
  int i;
  for (i = 0; i < 16; i++)
    S826_AdcSlotConfigWrite(board, i, i, TSETTLE, S826_ADC_GAIN_1);

  // Configure adc system and start it running.
  S826_AdcSlotlistWrite(board, SLOTFLAGS, S826_BITWRITE); // Enable all 16 timeslots.
  S826_AdcTrigModeWrite(board, VIRTOUT + 182);            // Use virtual digital output as trigger.
  S826_AdcEnableWrite(board, 1);                          // Enable conversions.
}

This triggers a conversion burst:

void TriggerBurst(uint board)
{
  S826_VirtualWrite(board, 1 << VIRTOUT, S826_BITSET);   // Rising edge of trigger starts conversion.
  S826_VirtualWrite(board, 1 << VIRTOUT, S826_BITCLR);   // Falling edge of trigger pulse.
}

This returns True if a conversion burst has completed:

int IsBurstDone(uint board)
{
  uint status;
  S826_StatusRead(board, &status);
  return (status == SLOTFLAGS);
}

This example demonstrates how to use the above code:

InitAdc(0);
while (1)    // Repeat forever:
{
  uint slotlist;
  int slot;
  int adcbuf[16];  // Sample buffer -- always set size=16 (even if fewer samples needed)

  TriggerBurst(0);                      // Trigger a conversion burst.
  do {} while (!IsBurstDone(0));        // Poll until burst completes.
  slotlist = SLOTFLAGS;                 // Copy ADC data into adcbuf.
  int errcode = S826_AdcRead(0, adcbuf, NULL, &slotlist, 0); // note: tmax=0

  for (slot = 0; slot < 16; slot++)    // Display all samples.
    printf("Slot %d sample value = %d\n", slot, adcbuf[slot]);
}

Calibration errors caused by missing shunt

On 826 SDKs earlier than version 3.2.0, analog calibration values will not be applied without J6 (labeled "Calibration Enable") installed. A missing shunt is intended to protect against accidental overwriting of calibration values, but in these SDKs it also prevents the reading of those values. This is resolved in SDK version 3.2.0 and above; in these versions the shunt functions as intended and must be installed only when calibrating the board (though leaving it installed all the time is okay).

If board calibration is incorrect, make sure J6 is installed or upgrade to SDK version 3.2.0 or higher. The 826 SDK can be downloaded from the 826 product page.

Apparent nonlinearity

To prevent high CMV, connect isolated source to ADC ground.

ADC linearity can be adversely affected by high common-mode voltage (CMV). This can happen when the ADC is used to measure an isolated voltage source such as a battery, thermocouple, or isolated power supply. Since the source is isolated, the CMV may float up or down until it exceeds the maximum allowed CMV of the ADC's input circuitry.

When measuring an isolated source, be sure to connect one side of the source to the ADC power supply ground as shown in the diagram to the right. This will prevent high CMV that might othewise result in apparent non-linearity or calibration errors.

ADC accuracy specification

Resolution and no missing codes are both 16 bits minimum.

Parameter Value Units Description
Min Typ Max
Integral Nonlinearity Error ±0.75 ±1.5 LSB Deviation of ADC transfer function from best-fit line
Differential Nonlinearity Error ±0.5 ±1.25 LSB Deviation of ADC code width from ideal code width
Gain Error ±2 ±40 LSB Deviation of difference between actual level of last data transition and actual level of first transition from difference between ideal levels
Gain Error Temperature Drift ±0.3 ppm/°C
Zero Error ±0.8 mV Difference between ideal midscale voltage and actual voltage producing the midscale output code
Zero Temperature Drift ±0.3 ppm/°C

Maximum input voltage

The analog inputs accept common mode voltages up to ±12V with no resulting input current or damage. CMV up to ±25V is tolerated continuously, though this will cause currents to flow in the analog inputs. CMV greater than 25V may be tolerated for brief intervals, but this can cause significant currents to flow in the analog inputs and is not specified nor guaranteed to be safe.

DAC

Specifying setpoint in Volts

Is there a way to program the analog outputs using Volts units?

The following function will set a DAC output to the specified voltage (note: the function does not check for illegal voltage values):

int SetDacOutput(uint board, uint chan, uint range, double volts)
{
  uint setpoint;
  switch (range) {  // conversion is based on dac output range:
    case S826_DAC_SPAN_0_5:   setpoint = (uint)(volts * 0xFFFF /  5); break;          // 0 to +5V
    case S826_DAC_SPAN_0_10:  setpoint = (uint)(volts * 0xFFFF / 10); break;          // 0 to +10V
    case S826_DAC_SPAN_5_5:   setpoint = (uint)(volts * 0xFFFF / 10) + 0x8000; break; // -5V to +5V
    case S826_DAC_SPAN_10_10: setpoint = (uint)(volts * 0xFFFF / 20) + 0x8000; break; // -10V to +10V
  }
  return S826_DacDataWrite(board, chan, setpoint, 0);  // program DAC output
}

If the DAC output range is known, it can be explicitly specified like this:

// Program board0, dac0 output to -7.35 V
int errcode = SetDacOutput(0, 0, S826_DAC_SPAN_10_10, -7.35);

If the DAC output range is not known, call S826_DacRead first to determine the range:

// Program board0, dac0 output to +0.573 V
uint range, setpoint;
int errcode = S826_DacRead(0, 0, &range, &setpoint, 0);  // get range
if (errcode == S826_ERR_OK)
  errcode = SetDacOutput(0, 0, range, 0.573);

Setpoint readback

The following function will return a DAC's programmed output voltage. Note that the returned volts may not exactly match the value specified in the last SetDacOutput call because the output voltage can only be programmed to discrete values.

int GetDacOutput(uint board, uint chan, double *volts)
{
  uint range, setpoint;
  int errcode = S826_DacRead(board, chan, &range, &setpoint, 0);  // Get DAC output range & setpoint.
  switch (range) {                                                // Convert binary setpoint to volts:
    case S826_DAC_SPAN_0_5:   *volts = setpoint * (5.0 / 0xFFFF); break;             // 0 to +5V
    case S826_DAC_SPAN_0_10:  *volts = setpoint * (10.0 / 0xFFFF); break;            // 0 to +10V
    case S826_DAC_SPAN_5_5:   *volts = (setpoint - 0x8000) * (10.0 / 0xFFFF); break; // -5V to +5V
    case S826_DAC_SPAN_10_10: *volts = (setpoint - 0x8000) * (20.0 / 0xFFFF); break; // -10V to +10V
  }
  return errcode;
}
// Example usage: Read board0, dac0 programmed output voltage.
double volts;
if (GetDacOutput(0, 0, &volts) == S826_ERR_OK)
  printf("dac0 output is set to %f volts", volts);
else
  printf("error reading dac0");

Control DAC voltage with an incremental encoder

This example shows how to use an incremental shaft encoder to control a DAC's output voltage.

Connecting to a VFD

In motor-control applications it's common to use a DAC to generate the control voltage for a variable-frequency drive (VFD). When doing this, it's essential to properly wire the ground signals so as to avoid noise and disruptive ground loops. In particular:

  • Connect the VFD analog ground to an 826 GND pin, which is the analog reference for the DAC output signal.
  • Do not connect the VFD analog ground net to anything else (e.g., chassis ground).

The recommended wiring shown below uses the DAC's signal ground (826 GND) as analog reference and avoids ground loops and thus ensures accurate, problem-free motor control:

Recommended wiring
Recommended connections


Don't do this! It will create a ground loop.
Don't do this!


Don't do this either! It has a noisy, inaccurate analog reference.
Don't do this either!

Linux Demo Sine Wave Generator counter error (-15)

The Linux sine wave generator demo may experience a timeout and exit with an error code -15 (S826_ERR_FIFOOVERFLOW). This occurs because the priority of the demo thread may be too low for the sample time. Linux is not a RTOS and the process (or interrupt) may be delayed and not complete the DAC output in the specified time.

Older version of the demo will exit when S826_ERR_FIFOOVERFLOW occurs. Later versions of the demo, however, will print an error code and continue outputting the sine wave.

In any case, if the DAC output sampling time requirements are very small and need to be precise, it is recommended to run the process at a higher priority. You may also consider using a low-latency or rt kernel.

To run the demo at a higher priority:

"nice -n 19 ./s826demo"

For Ubuntu low-latency kernel:

"sudo apt-get install linux-lowlatency linux-headers-lowlatency"

For Ubuntu rt kernel:

"sudo apt-get install linux-rt linux-headers-rt"

In extreme high performance cases, you may consider using the raw DAC write command (S826_DacRawWrite) instead of S826_DacDataWrite. You must make sure to understand the DAC ranges before doing so. This should normally not be necessary as S826_DacDataWrite is only marginally slower.

Short-circuit protection

The board's DAC devices do not have output short-circuit protection. However, each DAC automatically limits its output current to 38 mA. Consequently, a DAC can tolerate intermittent output shorts and will not be damaged as long as the DAC device does not overheat.

DAC accuracy specification

Resolution and monotonicity are both 16 bits minimum.

PARAMETER CONDITIONS VALUE UNITS
MIN TYP MAX
Integral Nonlinearity ±2 LSB
Differential Nonlinearity ±1 LSB
Gain Error ±4 ±20 LSB
Gain Temperature Coefficient ±2 ppm/°C
Unipolar Zero-Scale Error 5V unipolar range, 25°C
10V unipolar range, 25°C
5V unipolar range
10V unipolar range
±80
±100
±140
±150
±200
±300
±400
±600
µV
µV
µV
µV
V_offset Temperature Coefficient All unipolar ranges ±2 µV/°C
Bipolar Zero Error All bipolar ranges ±2 ±12 LSB

DIOs

Basic operation

To unconditionally program all DIO outputs, call S826_DioOutputWrite with the mode argument set to S826_BITWRITE (zero). For example, this code will turn on all DIOs:

uint dios[] = { // Specify DIOs that are to be turned on (driven to 0 V):
  0x00FFFFFF,   //   DIO 0-23
  0x00FFFFFF    //   DIO 24-47
}
S826_DioOutputWrite(0, dios, S826_BITWRITE); // Turn on all DIOs.

This example shows how to turn on DIOs 7, 13 and 38, and turn off all other DIOs:

uint dios[] = {         // Specify DIOs that are to be turned on:
  (1 << 7) + (1 << 13), //   DIOs 7 & 13 are in first 24-bit mask (DIOs 0-23),
  (1 << (38 - 24))      //   DIO 38 is in second 24-bit mask (DIOs 24-47).
}
S826_DioOutputWrite(0,  // Program all DIO outputs on board 0:
  dios,                 //   desired output states
  S826_BITWRITE);       //   unconditionally change all DIOs

To read the pin levels of all DIOs, call S826_DioInputRead. This example shows how to read and display all DIO pins on board 0:

int i;
uint pins[2];                // Buffer for pin states.
S826_DioInputRead(0, pins);  // Read all DIO pin states into buffer.
for (i = 0; i < 24; i++)     // Display states of DIOs 0-23.
  printf("dio%d = %d\n", i, (pins[0] >> i) & 1);
for (i = 24; i < 48; i++)    // Display states of DIOs 24-47.
  printf("dio%d = %d\n", i, (pins[1] >> (i - 24)) & 1);

Setting and clearing DIOs

Sometimes it's necessary to set or clear particular DIOs without disturbing others. Typically, this is accomplished with a read-modify-write (RMW) sequence consisting of reading all DIOs into a buffer, modifying the buffer, and then writing the buffer back to the DIOs. This task is further complicated when multiple threads control the DIOs — a common practice in high-performance event-driven applications — because concurrent RMWs on different threads will conflict with each other. To avoid such conflicts, the RMW must be treated as a critical section (e.g., protected by a mutex or semaphore).

Fortunately, the 826 provides a fast, efficient way to set and clear DIOs without the complications of RMW. Simply call S826_DioOutputWrite with the mode argument set to S826_BITSET or S826_BITCLR, as shown in this example:

// Set and clear some DIOs without affecting other DIOs
uint maskA[] = {7, 0};  // bitmask for DIOs 0-2
uint maskB[] = {0, 1};  // bitmask for DIO 24
S826_DioOutputWrite(0, maskA, S826_BITSET);  // Set DIOs 0, 1 and 2.
S826_DioOutputWrite(0, maskB, S826_BITCLR);  // Clear DIO 24.

Debouncing inputs

Oscilloscope screenshot showing the "bouncing" voltage when a switch turns on

DIOs are commonly used to monitor real-world signals that have glitches or other noise. For example, the electrical contacts of mechanical switches may "bounce" when first connected, thus producing pulses that may be incorrectly interpreted by the application program as state changes. This problem can be solved by implementing a software debounce algorithm, but an easier way is to use the input filters provided by the DIO system.

To use the DIO input filters, simply specify a filter interval and designate the DIOs to be filtered. Choose a filter interval that is long enough to suppress the longest expected noise pulse, but not so long that valid state changes will be missed. The following example shows how to suppress pulses up to 200 µs wide on dio0 and dio2:

// Debounce dio0 and dio2 ------------------

#define FILT_USEC 200                  // Desired filter interval (max = 1.31 ms).
uint tfilt = FILT_USEC * 50;           // Interval specified as multiple of 20ns.
uint enabs[] = {5, 0};                 // Enable filters on dio0 and dio2.
S826_DioFilterWrite(0, tfilt, enabs);  // Activate the DIO filters.

Edge detection

Event-driven software often must execute code in response to DIO input changes (e.g., when a pushbutton is pressed, a photoelectric sensor is activated, etc.). Polling is not a good way to detect these events because it degrades system responsiveness and tends to make the source code convoluted and difficult to maintain. However, the alternative — using interrupts — can complicate and prolong program development.

Fortunately, model 826 provides the best of both worlds: it implements DIO edge detection circuitry with interrupts for efficient event monitoring, and the API makes the interrupts easy to use. For example, the following function will return when a falling edge is detected on a particular DIO. It is a blocking function, meaning that other threads can run while it waits for the DIO edge.

int WaitForDioFallingEdge(uint board, uint dio)
{
  uint rise[] = {0, 0};       // not interested in rising edge
  uint fall[] = {(dio < 24) << (dio % 24), (dio > 23) << (dio % 24)}; // interested in falling edge
  S826_DioCapEnablesWrite(board, rise, fall, S826_BITSET);   // Enable falling edge detection.
  return S826_DioCapRead(board, fall, 0, INFINITE_WAIT);     // Block until falling edge.
}

WaitForDioFallingEdge(0, 29);  // Example usage: wait for falling edge on dio29 of board number 0.

Controlling output rise-time with an external pull-up

Each DIO has an output driver that actively drives the signal to 0 V in the on state and is high-impedance in the off state. In the off state, the channel's internal 10 KΩ resistor passively pulls up the signal to +5 V. When the output switches to the off state, this 10 KΩ source resistance (combined with circuit capacitance) stretches the DIO rise time, which delays its transition to logic '1'. If the rise time is too long, it can be shortened by adding an external pull-up resistor (and reducing external capacitance) on the signal net.

The following table shows nominal rise times for unloaded DIO pins. Lower resistance values may be needed to compensate external circuit capacitance, but do not use an external pull-up resistor having less than 220 Ω (to prevent excessive DIO output current).

External pull-up DIO rise time
None 200 ns
1.2 KΩ 20 ns
680 Ω 10 ns

Generating a burst of pulses

How can I make a DIO go active for 10ms and then inactive for another 10ms, and repeat this five times?

There are several ways to do this but the methods you can use depend on a number of factors. Here are two approaches:

  • If high precision is not needed then you could bit-bang the DIO, using a hardware timer (or system Sleep function) to pace the DIO writes like this:
int i;
uint mask[] = {1, 0};       // bitmask for dio0
CreateTimer(0, 0, 10000);   // Create 10 ms timer and start it running.
for (i = 0; i < 5; i++) {
  WaitForTimer(0, 0);                         // Wait for timer tick.
  S826_DioOutputWrite(0, mask, S826_BITSET);  // Set dio0 active.
  WaitForTimer(0, 0);                         // Wait for timer tick.
  S826_DioOutputWrite(0, mask, S826_BITCLR);  // Set dio0 inactive.
}

Example application: I2C Emulator

Can I use DIOs to communicate with I2C devices?

Have a look at Sensoray's I2C emulator, which uses two DIOs to bit-bang an I2C bus. This open source software implements a full-featured I2C master emulator with bus arbitration and bus-hang resolver. All 826-specific code resides in a hardware abstraction layer (HAL) — an architectural feature that belongs in all production-quality software.

If you need to monitor an I2C bus or emulate a slave device, consider using a counter to capture synchronous serial data.

Interfacing RS-422 signals

I need to monitor the state of an RS-422 signal pair. Can I do this with a DIO channel?

You may be able to use one of the signals if it has no common-mode voltage and is appropriately terminated but, in general, DIO channels are TTL/CMOS compatible and therefore not compatible with incoming RS-422 signals. However, it is possible to use a counter channel to monitor the state of an RS-422 signal pair, using the technique described here.

Relay rack compatibility

IMPORTANT: The DIO circuitry on model 826 is not compatible with 15 or 24 VDC modules. When choosing modules for your relay rack, be sure to select modules that are compatible with 5 VDC logic levels.

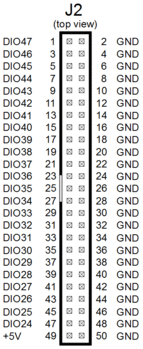

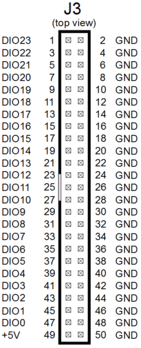

Each 50-pin DIO header carries 24 DIO signals that have 5 V logic levels. The header pinout is compatible with the following module racks and other racks that have the same pinouts:

Grayhill (various module types):

  • 8 channels: 70RCK8-HL, 70MRCK8-HL, 70GRCK8-HL, 70LRCK8-HL, 70RCK8-DIN
  • 16 channels: 70RCK16-HL, 70MRCK16-HL, 70GRCK16-HL, 70LRCK16-HL, 70RCK16-DIN
  • 24 channels: 70MRCK24-HL, 70LRCK24-HL, 70LRCK24-DIN

Opto-22 (type G4 modules):

  • 8 channels: G4PB8
  • 16 channels: G4PB16
  • 24 channels: G4PB24

Watchdog timer and fail-safe system

Activating safemode with an E-stop contact

An external emergency stop (E-stop) switch can be used to force analog and digital outputs to fail-safe states. To implement this, you must convert the E-stop signal to active-low TTL/CMOS and apply it to DIO47, so that DIO47 will be driven low when the E-stop button is pressed. The following schematic shows a robust, reliable way to do this for a 24V E-stop contact. This circuit ensures that safemode will be activated if the E-stop pushbutton is pressed, or 24VDC power is lost, or the relay coil opens.


A robust interface circuit for a 24V E-stop contact
A robust, reliable way to condition a 24V E-stop contact


Typically, the application program will configure the fail-safe system during initialization, before I/O operations begin. This is done by programming the analog and digital safemode states, and then "arming" the system by enabling DIO47 to trigger safemode operation. The following example illustrates this process:

// Configure and arm the fail-safe system ---------------

int i;

// The desired fail-safe output conditions (change as required):
uint safeDioEnables[2] = {0x00FFFFFF, 0x00FFFFFF};  // Switch all DIOs to fail-safe states.
uint safeDioData[2]    = {0, 0};                    // Safemode DIO states.
uint safeAoutRange[4]  = {0, 0, 0, 0};              // Safemode analog output ranges.
uint safeAoutLevel[4]  = {0, 0, 0, 0};              // Safemode analog output levels.

// Allow modifications to fail-safe settings.
S826_SafeWrenWrite(0, S826_SAFEN_SWE);

// Program analog output fail-safe conditions.
for (i = 0; i < S826_NUM_DAC; i++) {
  S826_DacRangeWrite(0, i, safeAoutRange[i], 1);
  S826_DacDataWrite(0, i, safeAoutLevel[i], 1);
}

// Program digital output fail-safe conditions.
S826_SafeEnablesWrite(0, safeDioEnables);
S826_DioSafeWrite(0, safeDioData, S826_BITWRITE);

// Allow the E-stop switch to activate fail-safe operation.
S826_SafeControlWrite(0, S826_CONFIG_XSF, S826_BITSET);

// Prevent errant software from modifying fail-safe settings.
S826_SafeWrenWrite(0, S826_SAFEN_SWD);

In many cases the application program must be alerted when the E-stop pushbutton is pressed, so that it can execute relevant tasks (e.g., record the event to an error log). The following example shows how to detect and handle an E-stop event.

// Detect and handle an E-stop pushbutton press ------------

WaitForDioFallingEdge(0, 47); // Wait for DIO47 falling edge.
printf("E-stop pushbutton was pressed!");

Activating safemode with the watchdog

In many control applications, the analog and digital outputs must automatically switch to safe states if software fails to execute normally. This can be implemented by using watchdog Timer0 to activate safemode. To set this up, configure the watchdog and safemode systems during initialization (before I/O operations begin):

#define WD_MILLISECONDS 100  // Watchdog Timer0 will timeout if unkicked for this long
wdtiming[] = {WD_MILLISECONDS * 50000, 1, 1, 0, 0};

S826_SafeWrenWrite(0, S826_SAFEN_SWE);       // Write-enable watchdog/safemode settings.
S826_WatchdogConfigWrite(0, 0x10, wdtiming); // Set t0 interval; t0 triggers safemode.

// TODO: Program safemode states

S826_WatchdogEnableWrite(0, 1);              // Start the watchdog running.
S826_SafeWrenWrite(0, S826_SAFEN_SWD);       // Write-protect watchdog/safemode settings.

The above code starts the watchdog timer, so the application program must now regularly "kick" the watchdog to prevent a timeout. This is typically done by periodically executing a kick algorithm. The kick algorithm may be simple or complex, depending on the number of running threads and other factors. The simplest algorithm will simply kick the watchdog, unconditionally:

CreateTimer(0, 0, 100000);  // Execute this loop every 100 milliseconds:
while (1) {
  S826_WatchdogKick(0, 0x5A55AA5A);  // Unconditionally kick the watchdog.
  WaitForTimer(0, 0);
}

Here's a slightly more complex version that monitors the states of two other threads (threadA and threadB). When each monitored thread completes its task, it stores a special value in a reserved memory location. The special values, when OR'ed together, form the value required for a watchdog kick.

int a_kick;  // ThreadA stores 0x5A550000 here when it completes.
int b_kick;  // ThreadB stores 0x0000AA5A here when it completes.

CreateTimer(0, 0, 100000);  // Execute this loop every 100 milliseconds:
while (1) {
  S826_WatchdogKick(0, a_kick | b_kick);  // Kick watchdog if both threads completed.
  a_kick = b_kick = 0;                    // Reset completion status.
  WaitForTimer(0, 0);
}

When watchdog timer0 times out, it may be necessary to notify "system health" monitoring software so it can take appropriate corrective action. This is easily done, as shown in the following code:

if (S826_WatchdogEventWait(0, INFINITE_WAIT) == S826_ERR_OK) {
  // Watchdog timer0 timed out, so take appropriate corrective action
}

Output watchdog on a DIO

The outputs from watchdog timer1 and timer2 can be routed to select DIOs. As explained in the API manual (see S826_DioOutputSourceWrite), timer1 can be routed to DIOs 7, 15, 23, 31, 39 and 47, and timer2 can be routed to DIOs 6, 14, 22, 30, 38 and 46.

The following code will route the output of timer1 to dio7 so that dio7 will be turned on (driven low, to 0 V) when timer1 times out. As always, timer0 is used to time the kicks. Timer1 is assigned a minimum delay (DELAY1=1) so that it will timeout (and thereby activate dio7) one clock (20 ns) after timer0 times out.

#define WD_MILLISECONDS 100  // Watchdog Timer0 will timeout if unkicked for this long

wdtiming[] = {WD_MILLISECONDS * 50000, 1, 1, 0, 0};  // timing parameters
uint routing[] = {1 << 7, 0};                        // mask for dio7

S826_SafeWrenWrite(0, S826_SAFEN_SWE);   // Write-enable protected settings.
S826_WatchdogConfigWrite(0,              // Configure watchdog:
  S826_WD_NIE,                           //   connect timer1 to NMI net
  wdtiming);                             //   set timer0 & timer1 intervals
S826_DioOutputSourceWrite(0, routing);   // Route NMI net to dio7.
S826_WatchdogEnableWrite(0, 1);          // Start the watchdog (AND START KICKING!)
S826_SafeWrenWrite(0, S826_SAFEN_SWD);   // Write-disable protected settings.

Turning off the relay

After the watchdog has activated the Reset Out relay, the application program can deactivate the relay by calling S826_WatchdogEnableWrite() with enable=0, as shown below:

S826_WatchdogEnableWrite(0, 0);  // Turn off relay on board0.

Default safemode states

In safemode, will all outputs default to power-on/reset conditions if safemode data registers have not been programmed?

Yes, because upon power-up or reset, all safemode data registers are initialized to match their runmode counterparts: DIO outputs are initialized to '0' (i.e., outputs will be pulled up to +5V) and analog outputs are initialized to 0V using the 0 to +5V output range.

Programming safemode states

It's recommended to program the safemode data registers even if you will be using default values. This will serve to document fail-safe operation in your code and enable you to easily change safemode states if you need to. The following example shows how to do this for board number 0:

// Program fail-safe states for all analog and digital outputs --------------

int aout;                   // analog output channel number
uint SafeDio[] = {0, 0};    // fail-safe DIO states

S826_SafeWrenWrite(0, S826_SAFEN_SWE);                // Write-enable safemode data registers.
S826_DioSafeWrite(0, SafeDio, S826_BITWRITE);         // Program safemode DIO states.
for (aout = 0; aout < S826_NUM_DAC; aout++) {         // Program safemode analog output condition:
  S826_DacRangeWrite(0, aout, S826_DAC_SPAN_0_5, 1);  //   output range
  S826_DacDataWrite(0, aout, 0, 1);                   //   output voltage
}
S826_SafeWrenWrite(0, S826_SAFEN_SWD);                // Protect safemode data registers.

P2 mating connector

These connectors (or equivalents) will mate to the board's three-pin Watchdog Reset Out header (P2):

  • Molex 22-01-2037 (ramp only)
  • Molex 22-01-3037 (ramp + alignment ribs)

Timestamp generator

The timestamp generator is a high-resolution "clock" based on a free-running 32-bit counter. The counter increments every microsecond and overflows (to zero, without notification) every 232 µs (approximately 71.6 minutes). It is a binary counter and consequently does not keep track of the date or time-of-day.

The generator's current time is automatically appended to every counter and ADC sample so that application programs can know (to within 1 µs) when each sample was acquired. It is particularly useful for precisely measuring the time between hardware events, and calculation of elapsed time is easy (a single subtraction) as long as the time doesn't exceed 71.6 minutes. It can be used in a variety of ways, including measuring speed and capturing serial data.

If desired, an application program can also directly read the current time as shown below:

// Read the timestamp generator's current time.
uint CurrentTimestamp(uint board)
{
  uint t;
  S826_TimestampRead(board, &t);
  return t;
}

The following example shows a simple application of direct timestamp reads:

// Example: Use board0 to measure system Sleep() time.
uint t1, t0 = CurrentTimestamp(0);  // Get start time.
Sleep(100);                         // Sleep approximately 100 ms.
t1 = CurrentTimestamp(0);           // Get end time.
printf("Slept %d µs", t1 - t0);     // Display actual sleep time.

Board ID

The "BOARD NUM" switches (at top edge of board near mounting bracket) assign the board ID used by software. The ID is binary coded on the four switches and can be programmed to any value from 0 (default) to 15. A board's ID determines the corresponding bit that will be set to '1' in the value returned by S826_SystemOpen. If you have a single 826 board, the return value will be (2^ID). If you have multiple boards, the return value is the sum of (2^ID) for each board. You can enter the return value here to quickly determine its meaning.

Examples
  • You have one board with ID set to 0, so the value returned by S826_SystemOpen will be (2^0) = 1.
  • You have two boards with IDs set to 1 and 4, so the value returned by S826_SystemOpen will be (2^1)+(2^4) = 2+16 = 18.

This code snippet will tell you the meaning of the value returned by S826_SystemOpen:

int id, flags = S826_SystemOpen();
if (flags < 0)
  printf("S826_SystemOpen returned error code %d", flags);
else if (flags == 0)
  printf("No boards were detected");
else {
  printf("Boards were detected with these IDs:");
  for (id = 0; id < 16; id++) {
    if (flags & (1 << id))
      printf(" %d", id);
  }
}

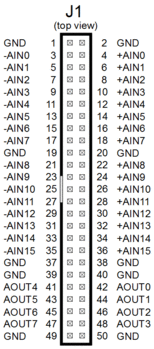

Connector pinouts

Software

C examples

A variety of C programming examples have been collected together in a common source file to illustrate how to program resources on the 826.

VB.NET demo

To help you jump-start your project, we offer the VB.NET demo for model 826. This demo program provides a pre-built Windows executable with a GUI for nearly every hardware resource on the board. All source files are provided, along with a VisualStudio project.

Labview

Before running an 826 virtual instrument (VI) under Labview, make sure you install the latest versions of the 826 DLL (s826.dll) and device driver (both are contained in the 826 SDK, which you can obtain from the Downloads tab of the 826 product page). Each VI is a basically a wrapper for a DLL function and consequently the VIs are dependent on the DLL, which in turn depends on the driver. Board hardware and firmware version numbers will be automatically read from the 826 board by software when all dependencies are satisfied -- it is not necessary to manually enter any board selection information except the board number, which is specified by the board's switch settings (factory default is board number 0).

The VIs are not independently documented, but since each VI wraps a DLL function, the DLL documentation effectively explains the function of each associated VI. The DLL documentation can be found in the 826 product manual (download from the 826 product page Documentation tab).

Resources for custom driver development

826 software stack. The generic API is portable — to port, simply adapt the Linux driver and HAL for your OS/RTOS.
I want to develop my own driver for the 826. Does Sensoray offer any resources for custom driver development?

Yes, we provide these resources free of charge:

  • Linux Software Development Kit (SDK) - Includes source code for the 826 driver, hardware abstraction layer (HAL) and API middleware, comprising a complete 826 software stack for Linux. The generic API is operating system independent and thread-safe, which makes this SDK a great starting point for porting to any operating system. The stack has been carefully designed for reliable operation in and for easy porting to real-time operating systems. The SDK can be found on the Downloads tab of the 826 product page.
  • Model 826 Technical Manual - This comprehensive manual explains the API and 826 hardware in detail (download from the Documentation tab of the 826 product page).
  • Register Map - A map of the board's hardware registers is available here. The registers are accessed through PCI BAR 2. Registers appear in both banked and flat address spaces. The banked space is only required for rev 0 boards; you should use the flat space exclusively if you have a later rev, as this will yield superior performance.

Software updates

1. Windows 3.3.4

  • C# demo application added to SDK. Error checking for invalid modes to S826_CounterModeWrite.

2. Linux 3.3.5

  • C# GUI demo available, using Linux mono. To get required libraries on Ubuntu, type:
"sudo apt-get install mono-complete"

For a C# development environment, type:

"sudo apt-get install monodevelop"

Windows

Custom installation and re-distribution

Sensoray's installer uses the NSIS installation system. It is created from a .NSI script. The core API is installed as follows in NSI script code:

Section "Core API"
SectionIn RO
${If} ${RunningX64}
 SetOutPath "$WINDIR\system32";
 !insertmacro  DisableX64FSRedirection
 File "..\mid-826\code\Release64\s826.dll";
 !insertmacro  EnableX64FSRedirection
 SetOutPath "$WINDIR\SysWOW64";
 File "..\mid-826\code\Release\s826.dll";
${Else}
 SetOutPath "$WINDIR\system32";
 File "..\mid-826\code\Release\s826.dll";
${EndIf}
SectionEnd

The drivers are installed via dpinst.exe in the NSI script as follows:

Section "Drivers"
SectionIn RO
CreateDirectory "$INSTDIR\driver\x64";
SetOutPath "$INSTDIR\driver\x64";
File "..\cd\driver\x64\dpinst.exe";
File "..\cd\driver\x64\s826.cat";
File "..\cd\driver\x64\s826.inf";
File "..\cd\driver\x64\s826.sys";
File "..\cd\driver\x64\s826filter.cat";
File "..\cd\driver\x64\s826filter.inf";
File "..\cd\driver\x64\s826filter.sys";
File "..\cd\driver\x64\WdfCoInstaller01009.dll";
CreateDirectory "$INSTDIR\driver\x32";
SetOutPath "$INSTDIR\driver\x32";
File "..\cd\driver\x32\dpinst.exe";
File "..\cd\driver\x32\s826.cat";
File "..\cd\driver\x32\s826.inf";
File "..\cd\driver\x32\s826.sys";
File "..\cd\driver\x32\s826filter.cat";
File "..\cd\driver\x32\s826filter.inf";
File "..\cd\driver\x32\s826filter.sys";
File "..\cd\driver\x32\WdfCoInstaller01009.dll";
MessageBox MB_OK "Driver installation dialog will pop-up. Follow the prompts and click Finish when done"
${If} ${RunningX64}
 ExecWait '"$INSTDIR\driver\x64\dpinst.exe" /f'
${Else}
 ExecWait '"$INSTDIR\driver\x32\dpinst.exe" /f'
${EndIf}
NoInstallDriver:
SectionEnd
What other libraries does the installer install as part of the Core API?

The 826 is compiled with Microsoft Visual Studio C++ 2008. The re-distributables for C++ must be installed. The installer installs this library silently running the command:

"vcredist_x86.exe /q"

and the following additional command on 64-bit systems:

"vcredist_x64.exe /q"

These re-distributables are available from Microsoft for x64 and x86.

Are any other libraries required? I installed the libraries above, but the demo doesn't work with my custom installer?

The demo is written using .NET libraries (version 3.5). These are also available from Microsoft here. The executable can be silently installed using this command:

"dotnetfx35setup.exe /qb"
Could I obtain the full 826 NSI script as a template for creating my own installer?

Yes, the full script is available here.

Silent install

I want to run the installer silently. Do you have any way to do this?

There are many options. For re-distribution, you may create your own installation package. Also, starting with version 3.3.9, there are additional command line options to quiet the setup.exe installer from command line or batch file. These options are described below.

What are the options for silent install?

The basic silent install is invoked by running the following command from command line or batch script:

"setup.exe /S"

Please note that the /S is case sensitive and must be upper case.

I've pre-installed the drivers and don't want to re-install them during the installation? Is there a command for that?
"setup.exe /S /no_driver=1"
Is there an additional command to not install the demo programs?

Yes, in version 3.3.9, the following command will install the required DLLs and system libraries, but no drivers or demo programs.

"setup.exe /S /no_driver=1 /no_demos=1"
I want to install the drivers silently, but there is always a pop-up to verify.

Unfortunately, there is no way around this. Windows requires confirmation from the user for driver install, even if the driver is signed.

I'm running the setup silently, but it pops up a dialog to confirm if I want to make changes to the PC (User Account Control). How do I prevent this?

Windows controls this through User Access Control. If running the setup from a standard windows console, the Windows User Account Control (UAC) will pop-up. This cannot be by-passed by Sensoray because the installer installs files to system directories.

One work-around is to launch the setup in an Windows Command Prompt Window started in administrator mode (right-click and select "Run As Administrator"). Another approach is to launch the setup as a user with administrator privileges. User access control may also be disabled, but we do not recommend this for security reasons.

Link error

I'm using VisualStudio (VS) on a 64-bit machine to build a 32-bit application for the 826. VS reports that linking failed because it can't open s826.lib. What could be the problem?

You should use the 32-bit DLL (and its associated LIB) because you are building a 32-bit application (x86). Use the 64-bit version only when building 64-bit apps (x64). To avoid confusion, you can copy the 32-bit DLL and its associated LIB file from the install directory to your project directory, then point the linker to it there. Make sure to also point the debugger to the 32-bit DLL by setting its working directory.

Note: You will always use the 64-bit driver on a 64-bit OS regardless of 32/64-bit application type, but you don't need to select this as it is automatically installed by the SDK installer.

Windows 10 IoT

Sensoray has created a Universal driver (UD) for the 826 under OneCoreUAP-based editions of Windows. It is similar to the standard driver, but compiled as Universal. This driver is in our SDK zip file under the "driver/sensoray_826_universal_driver" directory. Installation may be dependent on the specific Windows version. The inf is Windows Universal compatible. Sensoray does not currently have a demonstration Universal Windows App for the 826, but the .NET demo app may be portable.

Linux

Linux versions

Do you recommend specific Linux distributions for use with the 826?

We no longer support the obsolete kernel 2.4, but otherwise have no specific recommendation as it depends on the application (e.g., it might be desirable to use a low-latency kernel). We normally test first on Ubuntu LTS, but have a script to test builds on kernel versions 2.6.x, 3.x, and 4.x.

Modprobe error

When I try "sudo make install" it reports "modprobe: ERROR: could not insert 's826': Required key not available". How can I install the driver?

It's likely that the 826 driver is installed and you are actually seeing a warning. You can confirm this by trying "sudo modprobe s826" and the 826 demo application.

Migrating from model 626

Differences between models 626 and 826

When upgrading your PCI system to PCIe, we recommend model 826 as a replacement for model 626. The following table compares the interfaces on the two boards:

Interface 626 826
System bus PCI PCI Express
Counters 6 channels
24-bit resolution
24-bit sample latch
6 channels
32-bit resolution
sample FIFO (16-deep) with 32-bit timestamps
GPIOs 48 channels
40 w/edge detection (1 Msps)
no debounce
not fail-safe
48 channels
48 w/edge detection (50 Msps)
debounce filter
fail-safe outputs
Analog out 4 channels
14-bit resolution
20 Ksps
not fail-safe
8 channels
16-bit resolution
900 Ksps
fail-safe outputs
Analog in 16 channels
16-bit resolution
15 Ksps
16 channels
16-bit resolution
300 Ksps
Watchdog timer Single stage
4 shunt-selectable intervals
3 timer stages
software programmable intervals
Fail-safe controller None Integrated

Connector pinout differences

Do models 826 and 626 have the same connectors and pinouts?

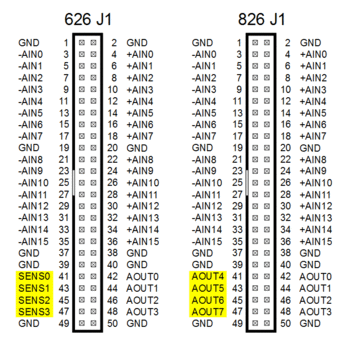

Both boards use identical connectors. The pinouts of the digital and counter connectors are identical, but analog connector pinouts differ slightly because the 826 has four additional analog outputs. The analog pinouts are identical except for pins 41, 43, 45 and 47, which convey DAC channel 4-7 outputs on the 826 (vs. remote sense inputs on the 626).

Using 626 cables with the 826

I have a 7505TDIN breakout board and 7501C1 (50-pin cable) for the 626. Can I use these with the 826?

The 7505TDIN and 7501C are both compatible with the 826. However, we recommend using an 826C2 cable instead of the 7501C because it has a low profile header at one end that results in a denser cable stackup. That said, the 7501C cable can be used if it doesn't cause mechanical interference in your system.

See also

Personal tools
Namespaces

Variants
Actions
Toolbox
