Model RELAY-xx | Solid State Relays

Model RELAY-xx Solid State Relays
  • Low cost, modular relays
  • Plugs into standard relay racks
  • Fast installation and removal
  • Integral hold-downs protect against shock and vibration

Description

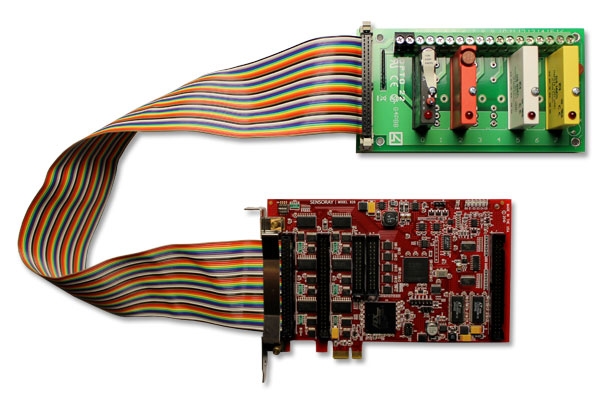

Sensoray offers a range of modular solid state and mechanical relays that are compatible with Sensoray relay racks. All relay models can be quickly plugged into and removed from compatible racks. Integral hold-down screws are provided secure relays and protect against shock and vibration.

Specifications

RELAY-IAC24
Input voltage range90-140 VDC / VAC
Maximum off-state voltage45V
RELAY-IAC24A
Input voltage range180-280 VDC / VAC
Maximum off-state voltage45V
RELAY-IDC24
Input voltage range10-30 VDC, 15-30 VAC
Maximum off-state voltage1V
RELAY-OAC24
Line voltage range12-140 VAC
Maximum on-state current3 A
Maximum off-state leakage5 mA
RELAY-OAC24A
Line voltage range24-280 VAC
Maximum on-state current3 A
Maximum off-state leakage5 mA
RELAY-ODC24
Line voltage range5-60 VDC
Maximum on-state current3 A
Maximum off-state leakage1 mA
RELAY-ODC24R
Line voltage range5-200 VDC
Maximum on-state current1 A
Maximum off-state leakage2 mA

Pricing & Ordering

Model Description Qty 1 Qty 2-9 Order Qty.
RELAY-G4IAC5Solid state relay, 120V AC input$18$18
RELAY-G4IDC5Solid state relay, 10 to 32V DC input$18$18
RELAY-G4OAC5Solid state relay, 120V AC output$18$18
RELAY-G4ODC5Solid state relay, 60V DC output$18$18
RELAY-IAC24Solid state relay, 120V AC input$18$18
RELAY-IAC24ASolid state relay, 240V AC input$18$18
RELAY-IDC24Solid state relay, 10 to 32V DC input$22$22
RELAY-OAC24Solid state relay, 120V DC output$18$18
RELAY-OAC24ASolid state relay, 240V AC output$18$18
RELAY-ODC24Solid state relay, 60V DC output$25$25
RELAY-ODC24RMechanical relay, 120 VAC, fits SSR socket$33$33
