Model 7506TDIN | Breakout board, 40-pin, DIN rail mountable

Model 7506TDIN Breakout board, 40-pin, DIN rail mountable
  • Breaks out 40-conductor flat cable to screw terminals
  • DIN rail mountable

Description

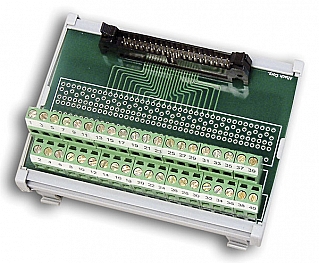

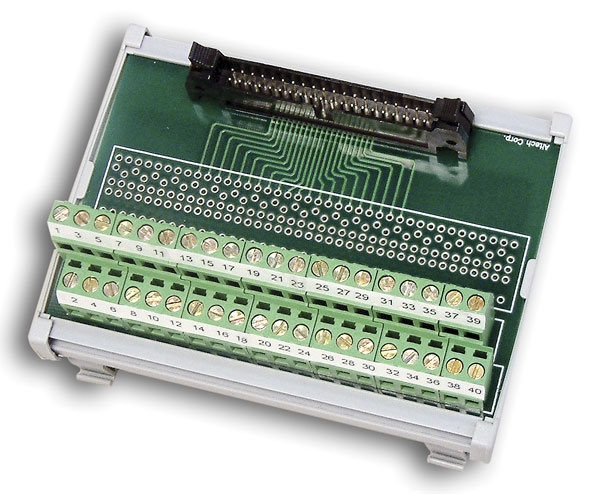

Sensoray's model 7506TDIN is a DIN rail mountable termination board that breaks out a 40-pin flat cable onto 40 robust screw terminals for direct connection to field wiring. The terminal blocks are individually numbered to correspond to the pin numbers on the cable header.

This breakout board is compatible with several Sensoray interface boards including models 526, 425, 7421 and 7405. It is also compatible with Smart A/D sensor interfaces such as models 518, 618/619, and 718, although it can't be used for thermocouple measurements with Smart A/D interface boards because it has no built-in cold junction compensation sensor. For breakout boards with built-in thermocouple compensation, see models 7409TB and 7409TDIN.

Pricing & Ordering

Model Description Qty 1 Qty 2-9 Order Qty.
7506TDINBreakout board, 40-pin, DIN rail mountable$80$73
Cables
7409CCable, flat, 40 conductor, 18 inches$20$19
7409C1Cable, flat, 40 conductor, 1 meter$29$26
