Breakout board, 50-pin, DIN rail mountable | Model 7505TDIN

Model 7505TDIN Breakout board, 50-pin, DIN rail mountable
  • Breaks out 50-conductor flat cable to screw terminals
  • DIN rail mountable
  • Prototyping area for custom circuits

Description

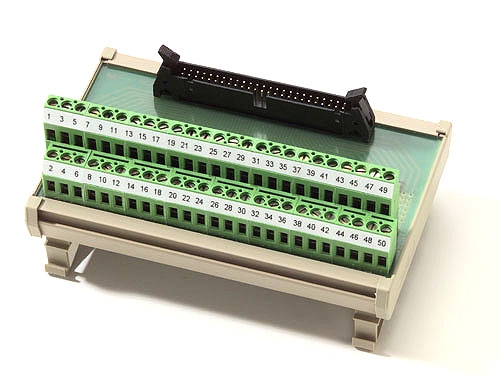

Sensoray's model 7505TDIN is a compact, DIN rail mountable termination board that breaks out a 50-pin flat cable header onto screw-cage clamp terminals for direct connection to field wiring. A 6x50 prototyping area is provided to allow custom circuitry to be built on the board. Short strain relief ejector latches are provided on the cable header. Each screw terminal is marked to indicate the corresponding pin number on the 50-pin header. This termination board is compatible with several Sensoray interface boards, including models 826, 626, 425, and 2410.

Specifications

Discrete circuits50
Cable headerDual row IDC (25 x 2), 0.1" pin spacing, w/ short ejector latches
Component mounting holes6 per line; 0.035" (0.9 mm) diameter
Terminal block typeScrew-cage clamp
Terminal block wire range22-12 AWG
Module dimensions (W x L x H)3.43 x 5.83 x 2.95 in. (87 x 148 x 75 mm)

Pricing & Ordering

Model Description Qty 1 Qty 2-9 Order Qty.
7505TDINBreakout board, 50-pin, DIN rail mountable$87$79
Cables
7501CCable, flat, 50 conductor, 18 inches$19$17
826C2Cable, flat, 50 conductor, 24 inch, for model 826$15$14
7501C1Cable, flat, 50 conductor, 1 meter$33$30
