Model 7405 | 8-channel analog output board

Model 7405 8-channel analog output board
  • Eight 12-bit analog outputs
  • Channels independently configurable for +10V / 4-20mA
  • Outputs automatically reset to 0 volts or 4 mA
  • 0-5V / 0-10V output options

Model 7405 is a legacy product and is not recommended for new designs. Legacy products are available but may have lead times up to 12 weeks and minimum order requirements. Use our Product Finder to find a comparable product or contact our Design Support Team.

Description

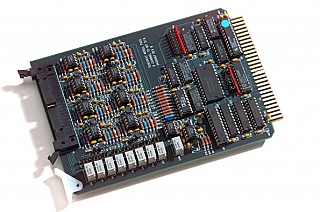

Model 7405 is an STDbus board that generates eight analog outputs. Each output channel may be independently configured for either voltage or current output mode. In both modes, output amplitude is a linear function of the programmed digital value.

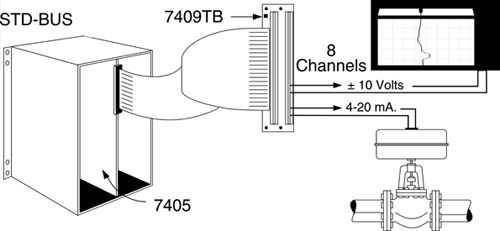

Model 7405 application


Voltage output

When programmed for voltage out, a channel will generate an output between -10 volts and +10 volts. Full scale output ranges of 0 to 5 volts and 0 to 10 volts are available as factory programmed options.

4-20 mA

Configuring a channel for current output allows driving a 4-20 mA current loop. In this mode, a channel varies its output voltage in order to maintain a constant output current.

Reset

In response to a reset, all channels are automatically reset to the appropriate zero-output condition. Voltage-mode channels are initialized to zero volts and current-mode channels are initialized to 4 mA out.

Termination

Output channels are accessible at a 40-pin header at the edge of the 7405 circuit board. Convenient screw terminal breakout boards are available to simplify field wiring.

I/O ports

The 7405 occupies two consecutive addresses in the STD bus 8-bit address space. The base address may be jumper-programmed to any even address.

Termination boards

Sensoray offers a variety of breakout boards that convert flat cable connections to screw terminals.

Model 7409TB is a low cost 2x4.6 inch terminal board with a 40-pin flat cable connector on its backside to facilitate panel mounting. Field wiring is made on the front side.

Model 7409TC is a 3.8x5.4 inch terminal board with eight removable terminal blocks, one for each output channel. It has a prototype area for constructing custom circuits.

Model 7409TDIN consists of a 7409TC supplied with snap-rails for DIN rail mounting.

Specifications

Input power, excluding output drive current12 to 15 VDC (at 30 mA)
5 VDC (at 40 mA)
Operating temperature-25 to 85 °C
DAC resolution12 bits
Channel update rate10 kHz/channel
Output linearity0.03%
Output modesVoltage output: +10 V
Current output: 4 to 20 mA
Special outputs modes configured at factory0 to 5 V
0 to 10 V

Documentation

File Version Type Size
Model 7405 Instruction Manual1.0.0PDF147 KB

Downloads

File Version Type Size
Model 7405 DLL (32-bit)1.0.0ZIP69 KB
Other Operating Systems
Need a software development kit for another operating system? We can port our SDK to
your OS or provide the information you need to do it yourself. Contact Sales for details.

Pricing & Ordering

Model Description Qty 1 Qty 2-9 Order Qty.
74058-channel analog output boardCallCall
7405B8-channel analog output board, 0.5V RangeCallCall
Termination Boards
7409TBBreakout board, 40-pin, with temperature sensor$67$61
7409TCBreakout board, 40-pin, with temperature sensor and prototyping area$106$96
7409TDINBreakout Board, 40-pin, with temperature sensor and prototype area, DIN mountable$141$126
Cables
7409CCable, flat, 40 conductor, 18 inches$20$19
7409C1Cable, flat, 40 conductor, 1 meter$29$26
