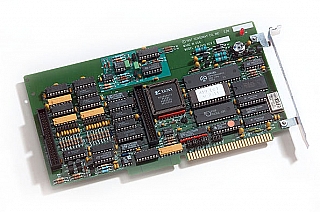

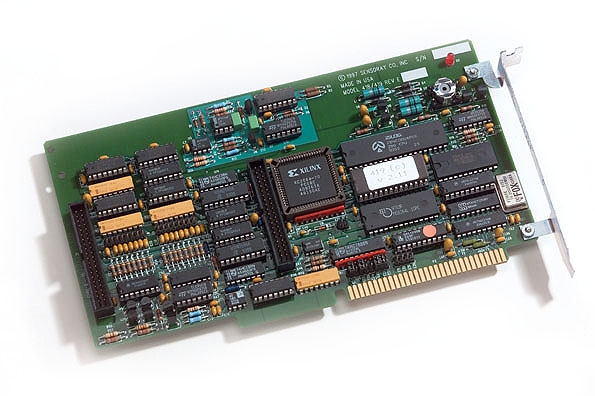

Model 417 32-Channel Smart Sensor Interface
  • Measures thermocouple, voltage, and 4-20 mA
  • 32 sensor channels with differential inputs
  • Provides excitation to passive sensors
  • Cold-junction compensation for thermocouples
  • Each channel configurable for any supported sensor type
  • Fully electronic calibration

Model 417 is a legacy product and is not recommended for new designs. Legacy products are available but may have lead times up to 12 weeks and minimum order requirements. Use our Product Finder to find a comparable product or contact our Design Support Team.

Description

The Sensoray Model 417 offers a cost effective way to acquire thermocouple, voltage, or current loop data for any ISA bus computer. It features 16-bit resolution from thirty-two input channels, each individually programmable for a different sensor type. Analog-to-digital conversion is performed in under 22 milliseconds per channel. Thirty-two channels are scanned in 640 milliseconds.

The 417 board plugs directly into any ISA bus slot. Linearization, calibration, and sensor type are software programmable, eliminating trim potentiometers and the need for board access. Sensor field wiring is accomplished with a 40-conductor flat cable and remotely mountable screw-termination board, either model 7409TB or 7409TDIN with DIN mounting hardware.

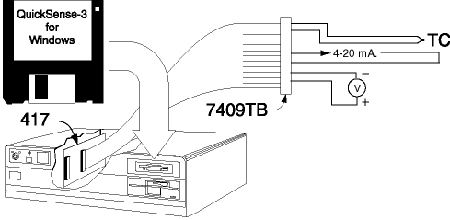

Model 417 example application


Calibration

Model 417 automatically self-calibrates by measuring internal precision references. Reference data is stored in EEPROM so the boards may be easily interchanged.

Specifications

Input resistance100 MΩ
Maximum input voltage63 VAC rms
CMMR95 db/min
Maximum command mode±5 V
A/D converter16-bit integrating
Conversion time22 ms/channel
A/D scan rate45 samples/second
Operating temperature-25 to 70 °C
PC/104 interface2 I/O ports
Input power< 3 W
Sensor Types
ThermocouplesJ, K, T, S, E, B, N, C, R
Platinum RTD100 Ω, types 385 and 392
Nickel RTD120, 200, 1000 Ω
Copper10 Ω
Thermistors10000 Ω, YSI type 44006 or 44031
Strain gauges120 to 4000 Ω
Sensor Resolution Range
Thermocouples 0.1 °C -270 to 1760 °C
Thermistors 0.01 °C -55 to 145 °C
Resistors 0.02 Ω
0.125 Ω
31 Ω
0 to 400 Ω
0 to 3 kΩ
0 to 600 kΩ
RTDs 0.05 °C
0.0125 °C
-200 to 800 °C
0 to 400 °C
Strain/pressure 5 µV ±100 mV
DC voltage 5 µV
20 µV
200 µV
±100 mV
±500 mV
±5 V

Documentation

File Version Type Size
Model 417 Instruction Manual1.0.0PDF111 KB

Downloads

File Version Type Size
Smart A/D Software Development Kit1.0.2ZIP243 KB
Other Operating Systems
Need a software development kit for another operating system? We can port our SDK to
your OS or provide the information you need to do it yourself. Contact Sales for details.

Pricing & Ordering

Model Description Qty 1 Qty 2-9 Order Qty.
41732-Channel Smart Sensor InterfaceCallCall
Termination boards
7409TBBreakout Board, 40-pin, with CJ Sensor$67$61
7409TCBreakout Board, 40-pin, with CJ Sensor and Prototype Area, Panel Mountable$106$96
7409TDINBreakout Board, 40-pin, with CJ Sensor and Prototype Area, DIN mountable$141$126
Cables
7409CCable, flat, 40 conductor, 18 inches$20$19
7409C1Cable, flat, 40 conductor, 1 meter$29$26
