Model 335 | PC/104+ PCMCIA/CardBus Adapter

Model 335 PC/104+ PCMCIA/CardBus Adapter
  • Dual PCMCIA/CardBus
  • Ruggedized
  • 16-bit or 32-bit operation
  • Single supply (5 V) input power

Model 335 is a legacy product and is not recommended for new designs. Legacy products are available but may have lead times up to 12 weeks and minimum order requirements. Use our Product Finder to find a comparable product or contact our Design Support Team.

Description

Model 335 is a bus-to-bus adapter that enables the use of CardBus or PC Card modules in PC/104+ systems, thereby adding to PC/104+ optional functions such as 802.11 wireless, IEEE-1394 Firewire, and SCSI interfaces. The 335 supports Type I, Type II, and Type III PCMCIA memory, I/O, and ATA hard disk modules such as Toshiba Microdrives. The CardBus feature supports 32-bit PC Cards operating at bus speeds up to 33MHz.

Status lights

Three LED lamps are positioned at the CardBus edge to facilitate viewing the 335's status.

Interrupts

Parallel PCI interrupts are available to the PC/104+ bus while ISA interrupts are available at the PC/104 connector.

Mechanical design

The adapter's CardBus connector is soldered to the carrier board to make it mechanically robust. An insulating partition on the component side prevents CardBus boards from touching circuit board traces.

Accessories

Sensoray-supplied compact flash and wireless Ethernet adaptors are guaranteed to work when used with Sensoray's CPU's and software.

Software

Linux drivers are available from Sensoray for model 11b wireless Ethernet and for standard compact flash memory.

PCMCIA has been tested on Linux and Windows XP.

Specifications

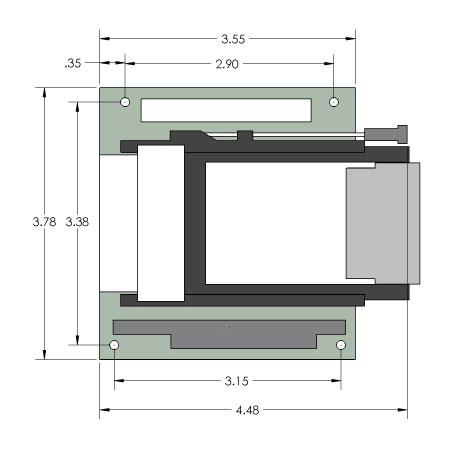

Dimensions(W x H x D): 96 x 105 x 23 mm
Weight113 g
Power+5 V / 250 mA (without USB devices and PC-cards)
+12 V / current with PC-cards
PC cardTwo type I, Type II, or One Type III
Temperature range0 to 70 °C

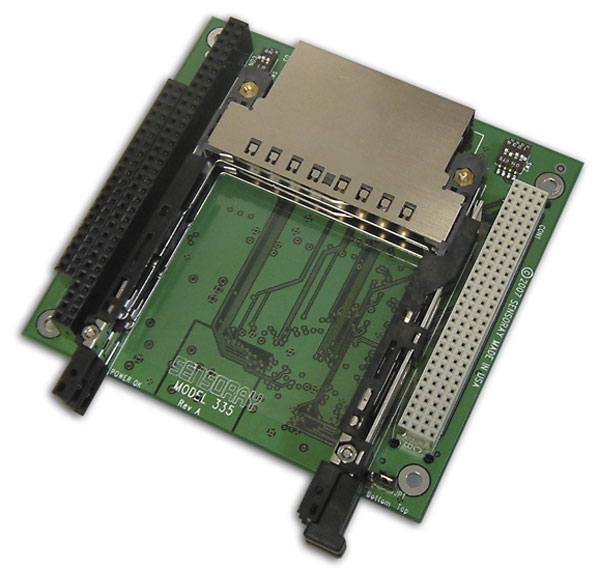

Model 335 board layout


Documentation

File Version Type Size
Model 335 Instruction Manual1.0.0PDF684 KB

Pricing & Ordering

Model Description Qty 1 Qty 2-9 Order Qty.
335PC/104+ PCMCIA/CardBus Adapter$257$233
