I/O Communication Module | Model 2601

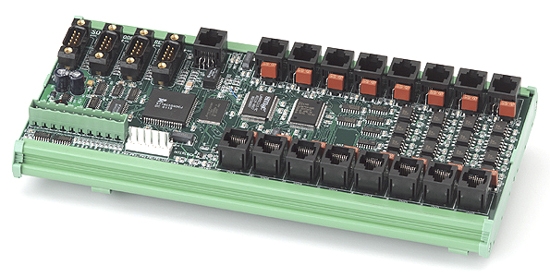

Model 2601 I/O Communication ModuleCE compliant
  • Ethernet gateway for 2600 series I/O modules
  • Four COM ports for remote serial devices
  • Supports up to 16 I/O modules in any combination
  • Integrated safety interlock circuitry
  • Fast boot time: ~1 second
  • DIN rail mountable

Description

Play video 2600_introductionWatch the video

Model 2601 is a communication hub for the 2600 series of I/O modules. It employs a standard Ethernet interface, enabling simultaneous access to the I/O system by up to four network clients. An embedded, high performance UDP/IP stack works together with a lightweight error recovery protocol to guarantee reliable packet delivery without the overhead of TCP. The embedded real-time operating system and application firmware boots up in approximately one second.

Up to sixteen I/O modules, in any combination of types, can be connected to the 2601. When multiple I/O modules are connected to a 2601, it is possible for hundreds of I/O points to be monitored and controlled through a single Ethernet connection. Larger data acquisition and control systems can be built using several 2601 modules and an Ethernet switch.

Low-cost, optically isolated data links are used to communicate with I/O modules. This reduces cost by making it unnecessary for each I/O module to have an expensive Ethernet circuit. Optical isolation helps to eliminate problematic ground loops that can diminish operational reliability and cause equipment damage.

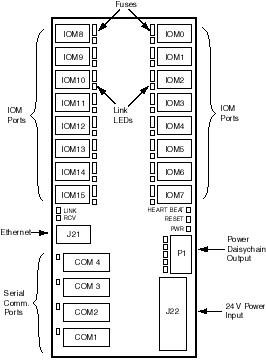

2601 module layout


Serial Ports

Four general-purpose serial ports are provided to enable network clients to monitor and control devices such as bar code scanners and motor controllers. Each port is independently configurable for RS-232, RS-422 or RS-485 operation, with standard data rates up to 115.2 Kbaud.

Interlock Circuits

Integral support is provided for up to five independent interlock or emergency stop circuits. An innovative routing system allows interlock signals to be directly connected to the 2601, which in turn distributes the signals to its I/O modules. This makes it possible to achieve fail-safe operation without the complex wiring and external terminal blocks typically required for interlocks. The 2601 monitors the interlock signals and can report their status to Ethernet clients.

Cables

Each I/O module connects to the 2601 with a standard Category-5 patch cable. This cable delivers power to the I/O module and it carries the optically-isolated communications between the 2601 and I/O module. Some I/O modules (e.g., model 2652 eight-channel Solid State Relay module) also require a 2600C1 daisy-chain power cable for interlock circuit connections.

Modular System

A wide variety of I/O modules are available in the 2600 series. Each module type provides an abundant amount of a specific, feature-rich class of I/O. For example:

  • Model 2608 measures voltage and thermocouples and has up to eight analog outputs.
  • Model 2610 has 48 general purpose digital I/Os with debounced inputs and PWM output capability.
  • Model 2653 interfaces sixteen solid state relays, with built-in interlock support.

Design assistant

Use the Design Assistant to quickly design a system and calculate pricing.

Specifications

I/O Module (IOM) Interfaces
Number16
FuseSocketed, 500 mA, per IOM
Serial COM
Number, type4, full duplex
Physical layerRS-232 / RS-422 / RS-485, selectable per port
Baud rate300 to 115.2 kbits/s
Ethernet
Ethernet100BaseTx, 10BaseT
ProtocolsIP, UDP, ICMP, ARP
Commands/secUp to 1000
Power and Environmental
Input power24 VDC, 130 mA (not including IOMs)
Operating temperature-20 to 70 °C
Mechanical
Dimensions(W x H x D): 10.125 x 4.87 x 1.5 inches; 257 x 124 x 38 mm
DIN rails35 mm

Documentation

FileVersionDate M-D-YTypeSize
Manuals
2600 Hardware Manual2.0.210-24-19PDF489 KB
2600 Programming Guide1.12.010-24-19PDF232 KB
Application Notes
Tech support wiki for 2600 familyHTML

Downloads

FileVersionDate M-D-YTypeSize
2600 Software Development Kit
For Linux and Windows
1.1.1812-01-23ZIP2.04 MB
IP Configuration for 2601 Rev K(and newer) boards
For Windows
08-21-23ZIP27 KB
2600 Labview Drivers1.0.010-24-19ZIP542 KB
Other Operating Systems
Need a software development kit for another operating system? We can port our SDK to your OS
for a NRE fee or, with a volume commitment, at no additional cost. Contact Sales for details.

Pricing & Ordering

Model Description Qty 1 Qty 2-9 Order Qty.
2601I/O Communication Module$576$523
I/O Modules
2608-0Analog I/O Module, 16-in/0-out$519$473
2608-4Analog I/O Module, 16-in/4-out$591$536
2608-8Analog I/O Module, 16-in/8-out$660$601
261048-channel Digital I/O Module$367$334
26124-channel RTD/Load Cell Interface Module$491$466
26204-channel Counter/Incremental Encoder Interface Module$428$390
26508-channel Relay Module with RH1B-U Relays$463$421
26528-channel Solid State Relay I/O Module$253$230
265316-channel Solid State Relay I/O Module$300$273
Power Supplies
20424 V 120 Watt power supply$160$160
Cables
2600C1Cable, daisy chain power, for 2600 series$18$18
2601C2Cable, null modem, 6 ft$10$10
2601C1Cable, Category 5e patch, 3 ft$13$13
26C50Cable, Category 5e patch, 50 ftCallCall
26C100Cable, Category 5e patch, 100 ftCallCall

Design assistant

Use the Design Assistant to quickly design a system and calculate pricing.
