Model 2411 | JPEG still image video server

Model 2411 JPEG still image video server
  • Captures still images upon hardware or software triggers
  • Stores single video frames on Compact Flash and/or internal hard drive
  • JPEG utility compresses images to save storage space and speed uploads
  • Uploads images via Ethernet
  • Includes embedded Linux

Model 2411 is a legacy product and is not recommended for new designs. Legacy products are available but may have lead times up to 12 weeks and minimum order requirements. We recommend model 2453 as a substitute for this product.

Description

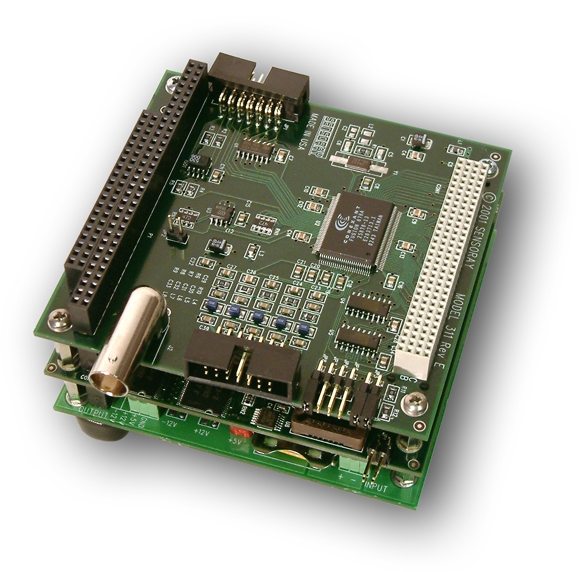

Model 2411 is a turnkey PC/104+ board stack that captures individual still frames from a video input, converts the frames to JPEG, and delivers them over Ethernet to a remote computer.

Image compression

A JPEG compression function allows efficient use of internal storage and speeds the download of stored images. Typical compression factors of 20:1 yield good quality images.

Image capture

Images are captured with Sensoray's 311 frame grabber that uses the popular BT-878A capture chip. The 311's four-channel multiplexer allows selecting any one of four composite inputs or one S-video input and three composite signals. One of the 311's general-purpose digital I/O lines has been programmed to initiate a frame capture upon detecting a contact closure from an external switch.

Image storage

Captured frames are initially stored in the CPU's RAM, after which they may be transferred to a RAM disk or to an optional CompactFlash or hard drive. The optional storage requires the addition of Sensoray's model 340 CardBus adapter.

Available standard configurations


FTP server

Model 2411 is programmed with an FTP server to facilitate image transfers to a remote computer. The FTP server may also be used to download custom application programs. The server is accessible from a command line or from any standard web browser.

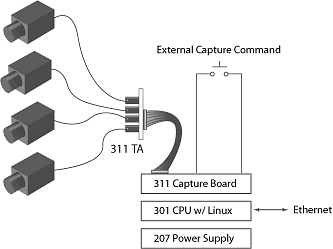

Typical application of model 2411-1


Linux OS

The 2411 uses an abbreviated form of Suse Linux. The OS resides in a flash memory chip soldered to the CPU. Approximately 6 MB is available for user applications. The 2411 is not available with other operating systems or other compiled Linux kernels.

Unused resources

Sensoray's model 2411 has some unsupported communication ports. The basic unit, model 2411-1, has one unused serial port. Adding model 340 to the stack for models 2411-2, 2411-3 and 2411-4 adds two unsupported USB 1.1 ports plus an additional 10/100 BaseT network port. Although these resources are not supported by the 2411, Linux drivers are available at the model 340 web page.

Power supply

The PC/104+ card stack is powered by the model 207 power supply. Input voltages may be from 9 to 36 VDC. The unit can supply 5 and ±12 volts to external devices.

Specifications

Video
Number of video channels4 composite or 1 S-video and 2 composite
Video formatsNTSC and PAL
JPEG compressionProgrammable file size determines ratio
D1 image capture rate2 frames/second including compression
D1 image file sizes20 to 80 KB (for JPEG)
900 KB (for bitmap)
Communication
Ethernet port10/100 BaseT
Digital I/Os3
CPU
Operating systemLinux with 2.4 kernel
Media for image storageSDRAM, CompactFlash, hard drive
Power and Environmental
Power supply input voltage range9 to 34 VDC
Power supply input current250 mA without hard drive or CompactFlash
Operating temperature range0 to 70 °C

Documentation

File Version Type Size
Model 2411 Instruction Manual1.0.0PDF240 KB

Pricing & Ordering

Model Description Qty 1 Qty 2-9 Order Qty.
2411JPEG still image video serverCallCall
