Model 204 | 24 V 120 Watt power supply

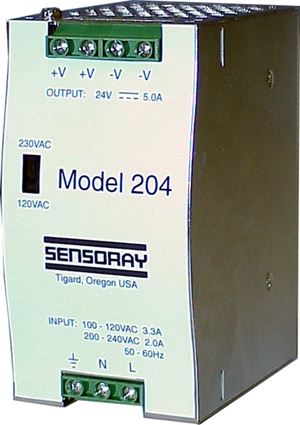

Model 204 24 V 120 Watt power supply
  • 24 VDC, 5A output
  • 88 to 264 VAC input in two ranges
  • Low cost
  • Works with Sensoray's 2400, 2500 and 2600 Ethernet products

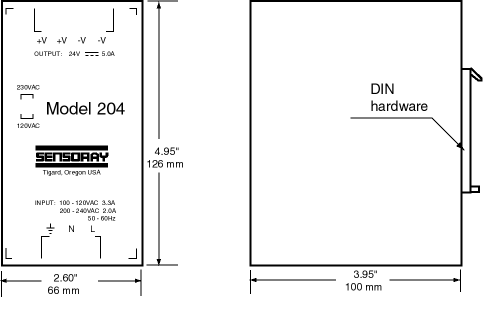

  • DIN rail mountable

Description

This universal input power supply is recommended for use with Sensoray's Ethernet appliances such as our 2400 series, 2500 series and 2600 series. It supplies regulated 24 volts DC at up to 5 amps from a wide range of AC line voltages.

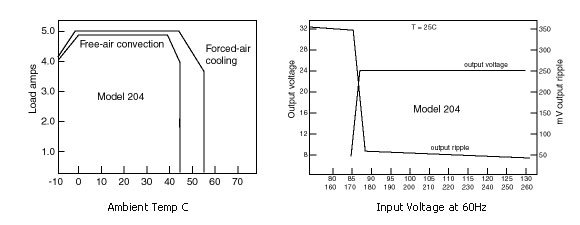

Performance graphs


Specifications

Input Power
Input voltage range88 to 132 VAC (Range 1)
76 to 264 VAC (Range 2)
Frequency range47 to 440 Hz
Inrush current typical30 A (115 VAC)
60 A (230 VAC)
Input-output isolation3000 VAC
Input-case 1.5 kVAC
Output Power
Typical load regulation±1%
DC voltage adjust±10%, -5% of FS
Temperature coefficient±0.03% per °C
Typical ripple/noise120 mV Pk-Pk
Over-voltage protection130 to 150%
Typical setup, rise, hold-up time1 s, 30 mS, 15 mS
Typical efficiency79% at full load
Switching frequency83 kHz
Environmental
Operating temperature range-10 to 55 °C
Storage temperature-20 to 85 °C


Pricing & Ordering

Model Description Qty 1 Qty 2-9 Order Qty.
20424 V 120 Watt power supply$130$130
