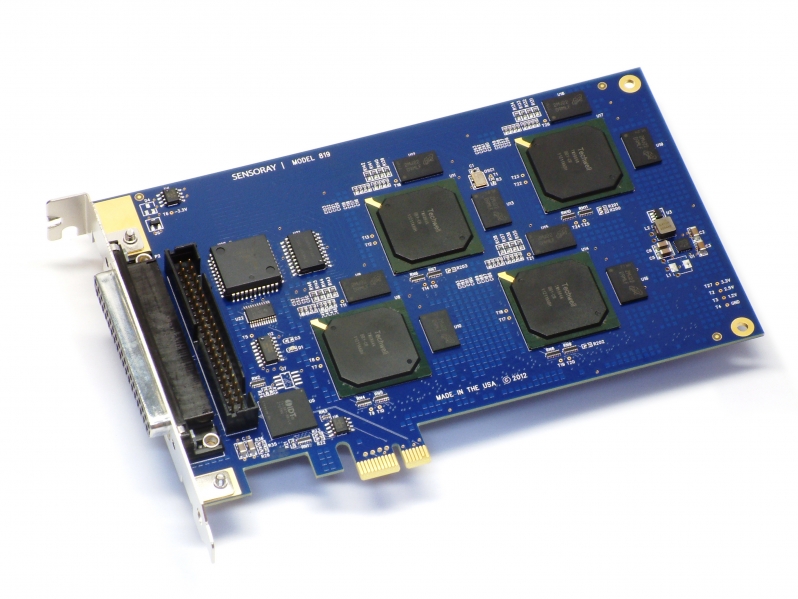

16-channel H.264 encoder with 16x4 crosspoint switch | Model 819

Model 819 16-channel H.264 encoder with 16x4 crosspoint switchView CE compliance report
  • 16 channel H.264 full frame-rate capture
  • Two simultaneous H.264 streams per channel
  • 16x4 video crosspoint switch
  • PCI Express x1 interface
  • HTTP live stream segmenter

Model 819 is obsolete. This archived information is provided as a courtesy to customers who own model 819 units.

Description

Model 819 is a multifunctional video codec capable of simultaneous capture from sixteen video inputs. The board can provide multiple output streams for each video input: two H.264 streams at independent resolutions, frame rates, bitrates; and an uncompressed (preview) stream. Each channel allows an individually configured multi-window character and graphics overlay and provides real-time motion data.

Individual scalers and deinterlacers facilitate optimal resolutions for each captured stream. For example, a high-resolution, high bitrate stream may be selected for archiving, while a lower resolution, low bitrate stream is preferable for simultaneous streaming to handheld devices, smart phones.

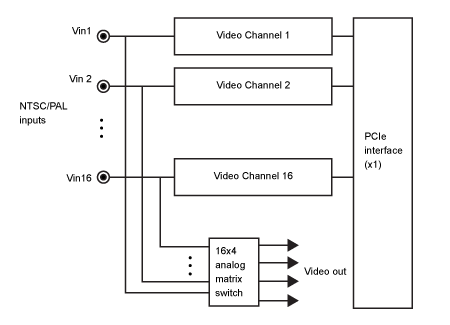

Model 819 block diagram


H.264 Encoder

The H.264 encoders implement efficient high quality Baseline Profile Level 3 compatible H.264 compression. Flexible encoder control allows achieving optimal stream parameters for a wide variety of applications. The output streams may be formatted as elementary or MPEG-4 program (.mp4) streams.

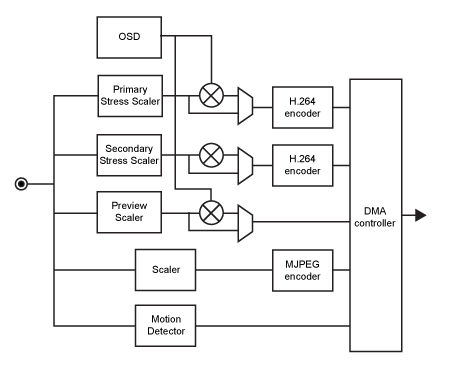

Block diagram of one video channel

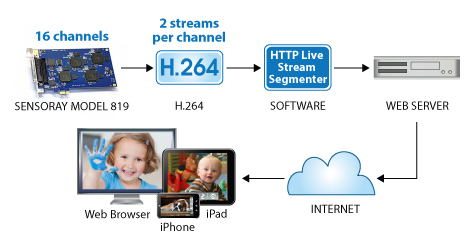

Model 819 Sample Streaming Application


Accessories

A termination box is recommended for interfacing video signals to the 819, along with a cable, model 817C1 (DB37 to IDC34), to connect the 819 to the termination box. Sensoray offers the following termination boxes:


Model 817TAS is an indispensable tool for application development and troubleshooting with Sensoray's 16-channel frame grabbers (models 615, 617, 817, and 819). The 817TAS splits a standard composite TV video signal (BNC connector) into 16 buffered outputs of standard amplitude and impedance. The outputs are connected to a 34-pin ribbon cable connector that is compatible with all of the above-mentioned frame grabbers. A combination of models 817TAS, 609TC/TE/TG and 817C1 cable yields a splitter with 16 BNC outputs.

817TAS

Model 817TAS splitter


Model 609TA-ND provides sixteen BNCs for inputs and eight BNCs for video output; also requires cable 609C2 (video out).

609TA-ND (16x BNC in, 8x BNC out)

Model 609TA-ND breakout board


Model 609TC provides sixteen BNCs for camera connections and is 2U height

609TC (16x BNC for camera connections)

Model 609TC breakout board


Model 609TE provides sixteen BNCs for camera connections and fits in the space of a PC's CD player

609TE (16x BNC for camera connections)

Model 609TE breakout board


Model 609TG supports thirty-two camera connections and is 2U height for 19" enclosure

609TG (32 camera connections)

Model 609TG breakout board

Specifications

Video & Audio
Inputs video: 16 NTSC/PAL, composite, 75 Ω
Outputs video: 4 NTSC/PAL, composite, 75 Ω
Encoding video: H.264 BP@L3
Video resolutions NTSC: 720x480, 704x480, 352x240, 176x120
PAL: 720x576, 704x576, 352x288, 176x144
Bitrates (H.264) 100 kbps to 8 Mbps per channel
Video preview format YUV 4:2:2
Text overlay up to 8 windows per channel
Frame rates H.264: up to 30/25 fps (NTSC/PAL) per channel
Other
Interface PCI Express x1
Video I/O connector DB37
Operating temperature 0 to 55°C

Documentation

FileVersionDate M-D-YTypeSize
819 Windows SDK Manual1.0.110-24-19PDF129 KB
819 Linux SDK Manual1.0.110-24-19PDF348 KB
819 Hardware Manual1.0.110-24-19PDF368 KB
819 CE Compliance Report10-24-19PDF4.31 MB

Downloads

FileVersionDate M-D-YTypeSize
819 Windows SDK1.0.410-24-19ZIP25.65 MB
819 Linux SDK1.3.210-24-19GZ10.91 MB
Other Operating Systems
Need a software development kit for another operating system? We can port our SDK to your OS
for a NRE fee or, with a volume commitment, at no additional cost. Contact Sales for details.

Pricing & Ordering

Model Description Qty 1 Qty 2-9 Order Qty.
Camera Connection Boxes
609TA-NDCamera connection box, 2U rack mount, GPIO, 16 in/8 out$340$308
609TCCamera connection box, breakout to 16 BNC, panel mount$112$98
609TECamera connection box, breakout to 16 BNC, CD-ROM form factor$148$135
609TGCamera connection box, breakout to 32 BNC, 2U 19 inch rackmount$329$298
Distribution Amplifiers
817TA16-channel distribution amplifier board$199$199
817TAS16-channel distribution amplifier w/ Enclosure$248$248
Cables
817C1Cable, DB37 to IDC34 .100 inch$21$21
